Description

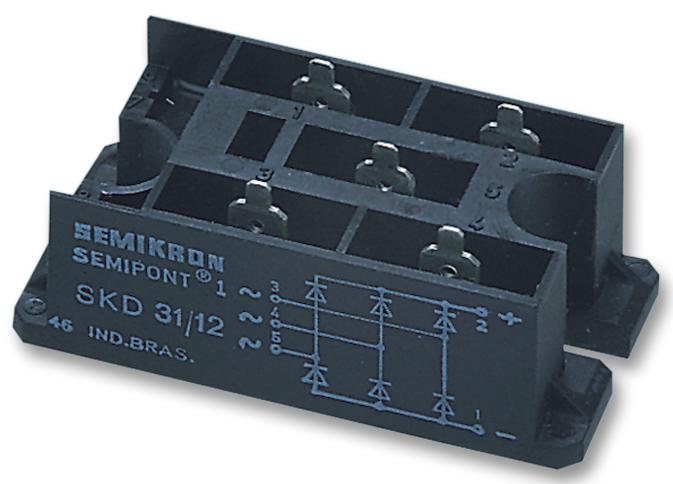

The SKD31/12 is a three-phase Power Bridge Rectifier with sturdy isolated metal baseplate and fast-on terminals with solder tips. This bridge rectifier is suitable for wave soldering.
- High surge current ratings
Applications
Mains Rectification
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| No. of Phases: Three Phase |
| Repetitive Peak Reverse Voltage: 1.2kV |
| Average Forward Current: 31A |
| Bridge Rectifier Case Style: Module |
| No. of Pins: 5Pins |
| Forward Voltage Max: 1.75V |
| Bridge Rectifier Mounting: Panel Mount |
| Forward Surge Current: 370A |
| Operating Temperature Max: 125°C |
| Product Range: SKD |
Other details
| Brand | SEMIKRON |
| Part Number | SKD31/12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
