Description

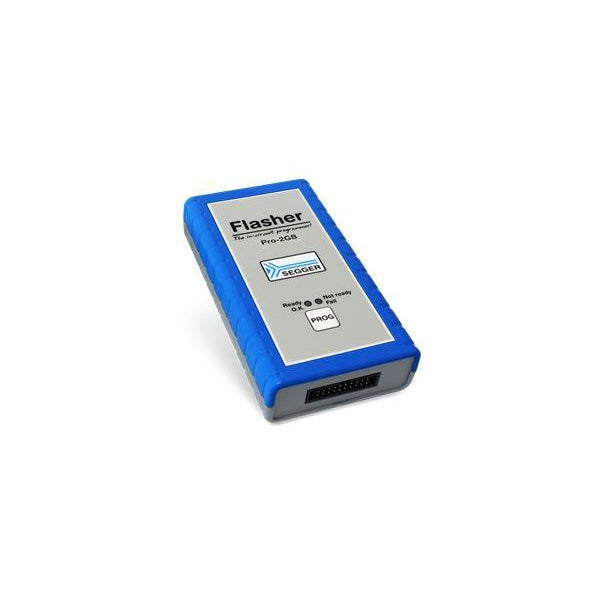

SEGGER Microcontroller Flasher PRO XL (5.17.02) is a full-featured, in-circuit, and universal flash programming tool with an extra-large memory capacity.
Features & Specs
- Power supply:
- USB powered, 500 mA if the target is powered by Flasher PRO
- Interfaces:
- USB host: USB 2.0 (High-Speed) and USB Type B
- RS232 host: RS232 9-pin
- Target interface: JTAG 20-pin (14-pin adapter available)
- 50 MHz serial transfer rate between Flasher PRO and target (maximum target interface (JTAG))
- 1.2V to 5 V supported target voltage range
- Current drawn from target voltage sense pin (VTRef): <25 µA
- 5°C to 60°C operating temperature range
- 121 mm x 66 mm x 30 mm dimensions
- 120g weight
- Supported OS:
- Microsoft Windows (x86/x64), Linux (x86/x64/Arm), or macOS (x86/Apple M1)
Features & Specs
- Power supply:
- USB powered, 500 mA if the target is powered by Flasher PRO
- Interfaces:
- USB host: USB 2.0 (High-Speed) and USB Type B
- RS232 host: RS232 9-pin
- Target interface: JTAG 20-pin (14-pin adapter available)
- 50 MHz serial transfer rate between Flasher PRO and target (maximum target interface (JTAG))
- 1.2V to 5 V supported target voltage range
- Current drawn from target voltage sense pin (VTRef): <25 µA
- 5°C to 60°C operating temperature range
- 121 mm x 66 mm x 30 mm dimensions
- 120g weight
- Supported OS:
- Microsoft Windows (x86/x64), Linux (x86/x64/Arm), or macOS (x86/Apple M1)
