Description

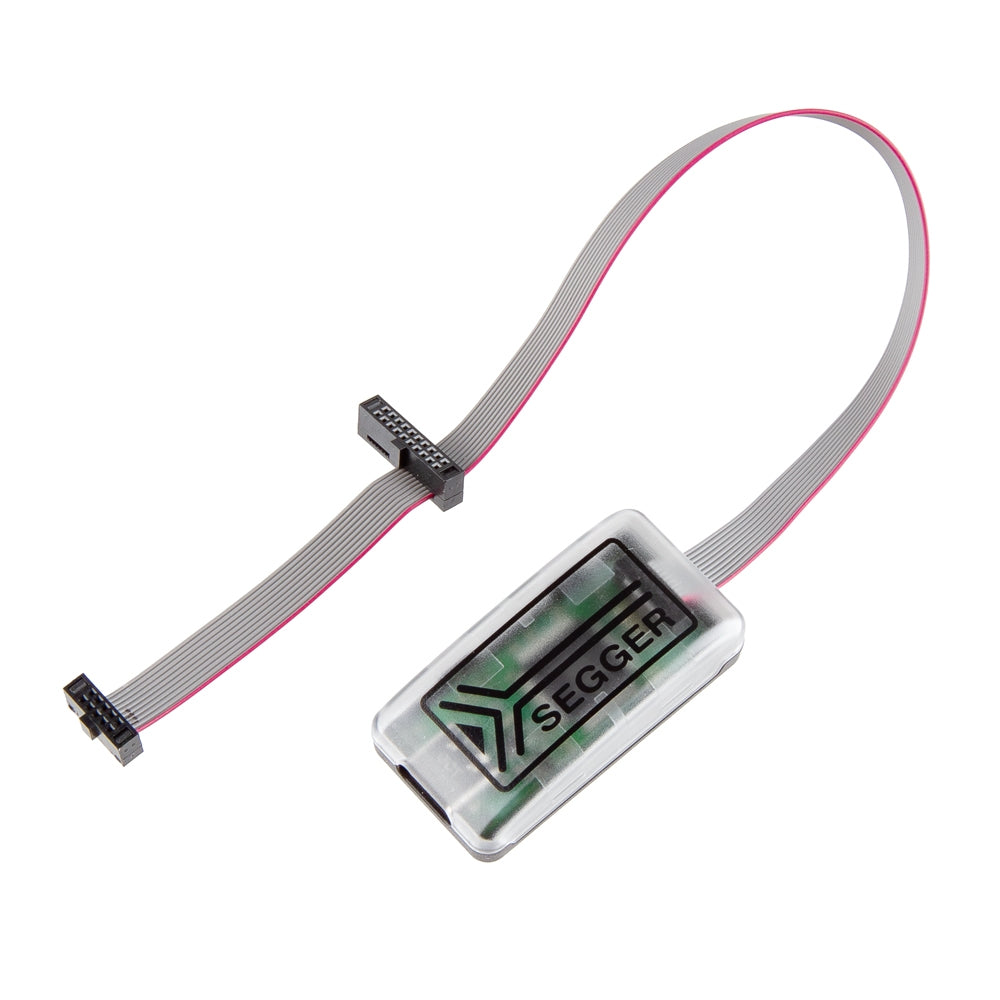

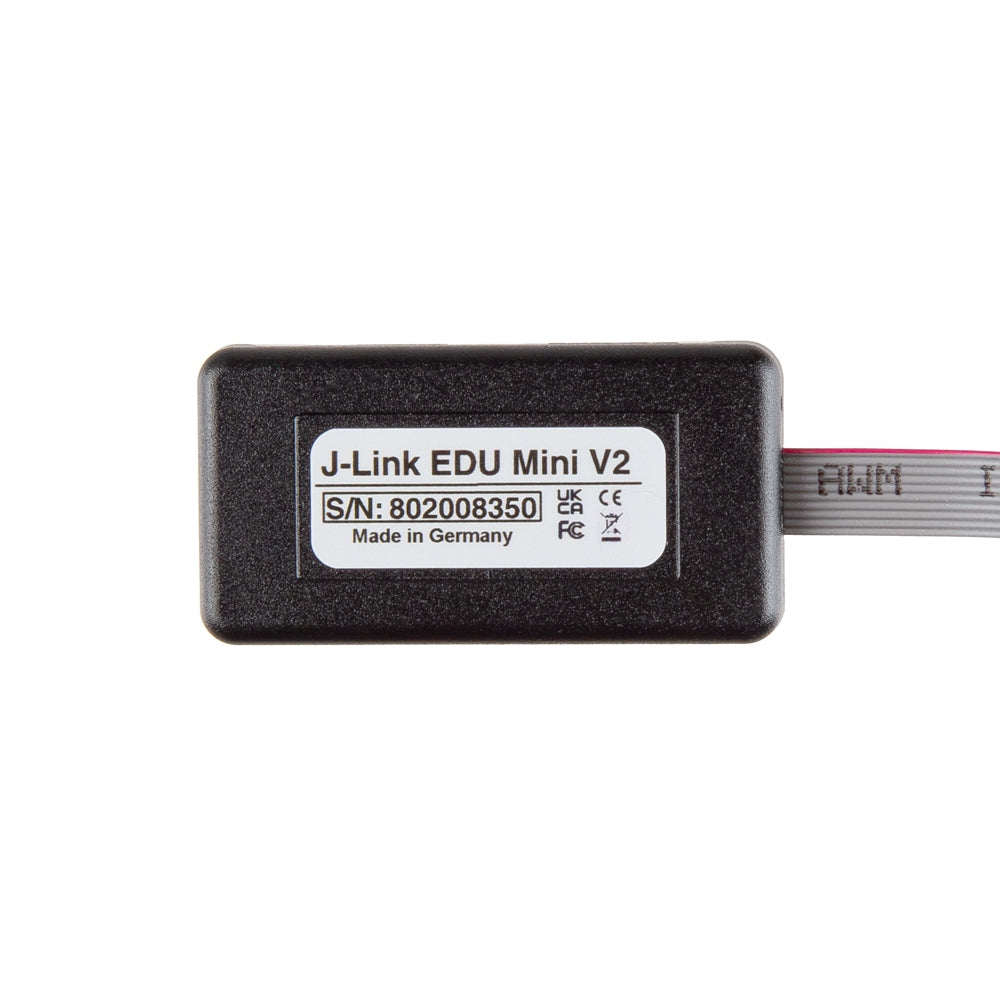

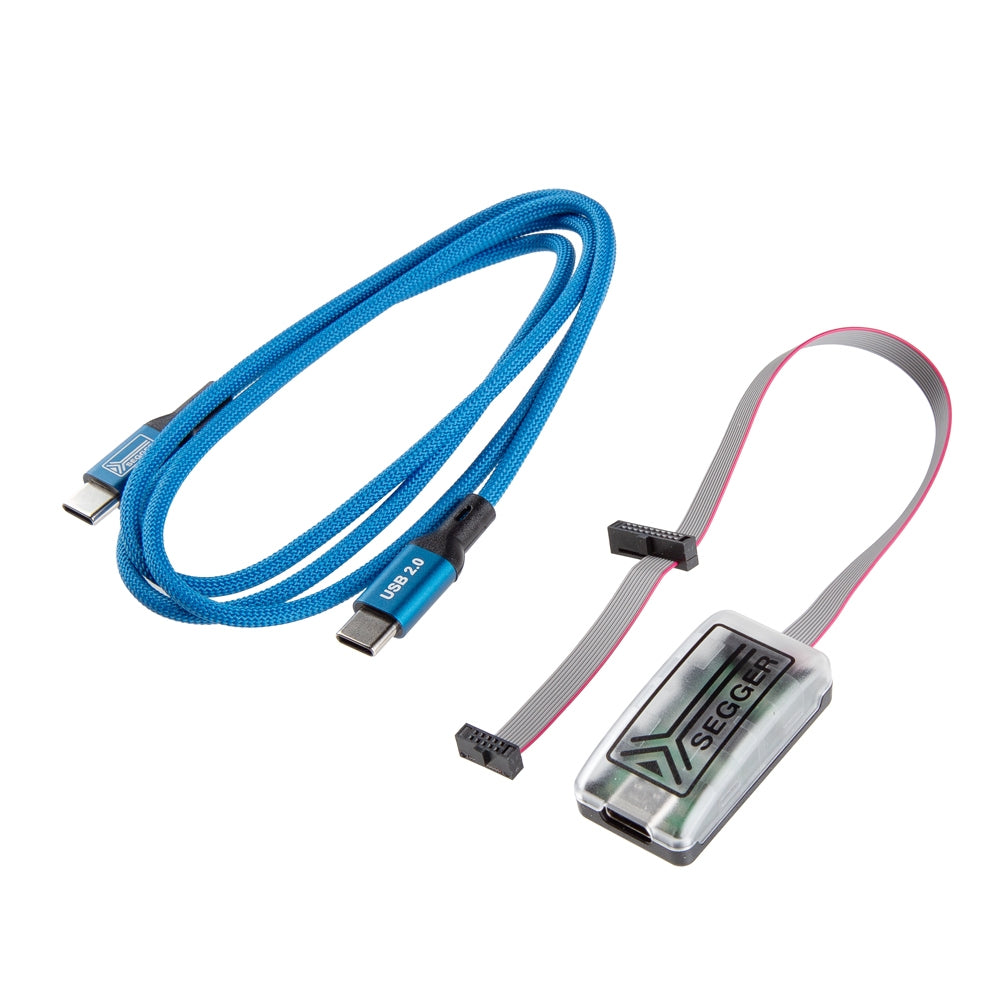

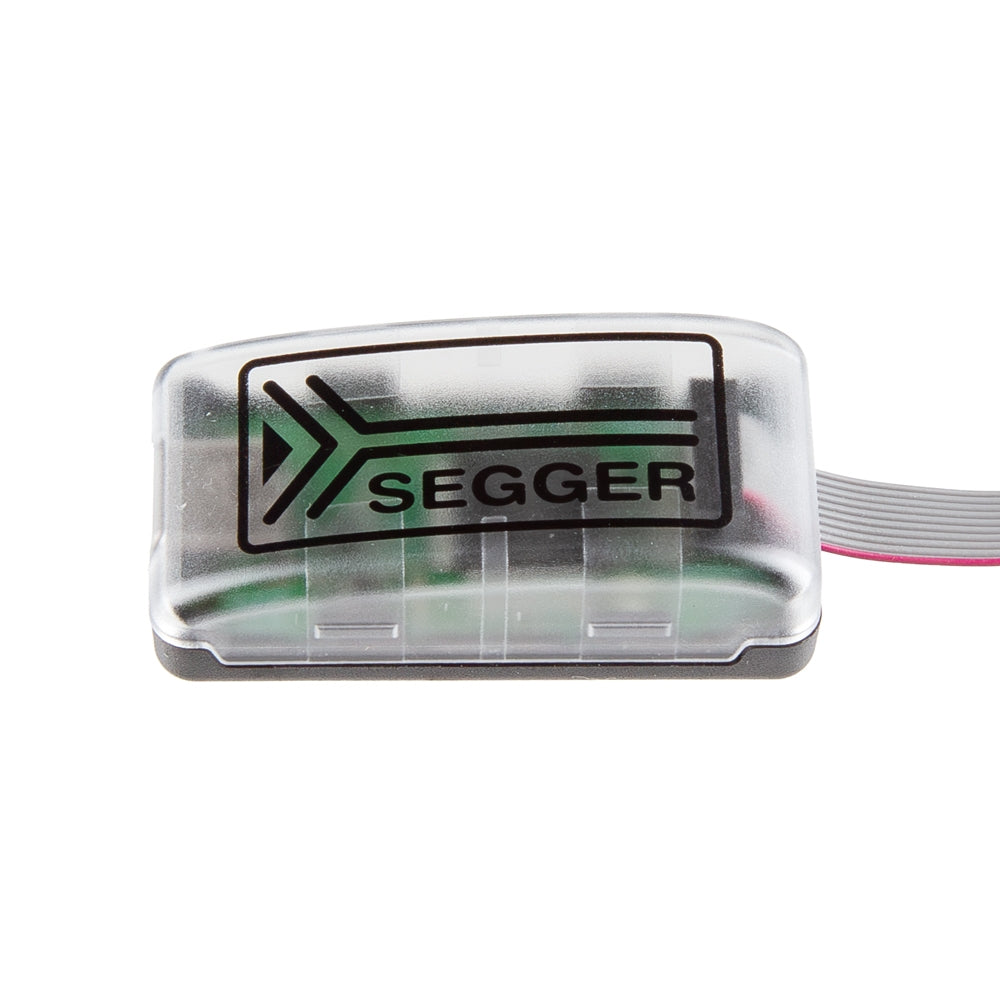

The J-Link EDU Mini is a minimalistic version of the J-Link debug probe in a reduced form factor with identical functionality. It is designed for educational purposes and supports Arm and RISC-V-based microcontrollers.
Features & Specs
- Supported OS:
- Microsoft Windows (x86/x64)
- Linux (x86/x64/Arm)
- macOS (x86/Apple Silicon)
- Electromagnetic compatibility (EMC):
- EN 55032
- EN 55035
- Operating Temperature: +5°C ~ +60°C
- Storage Temperature: -20°C ~ +65 °C
- Relative Humidity (non-condensing): Max 90% rH

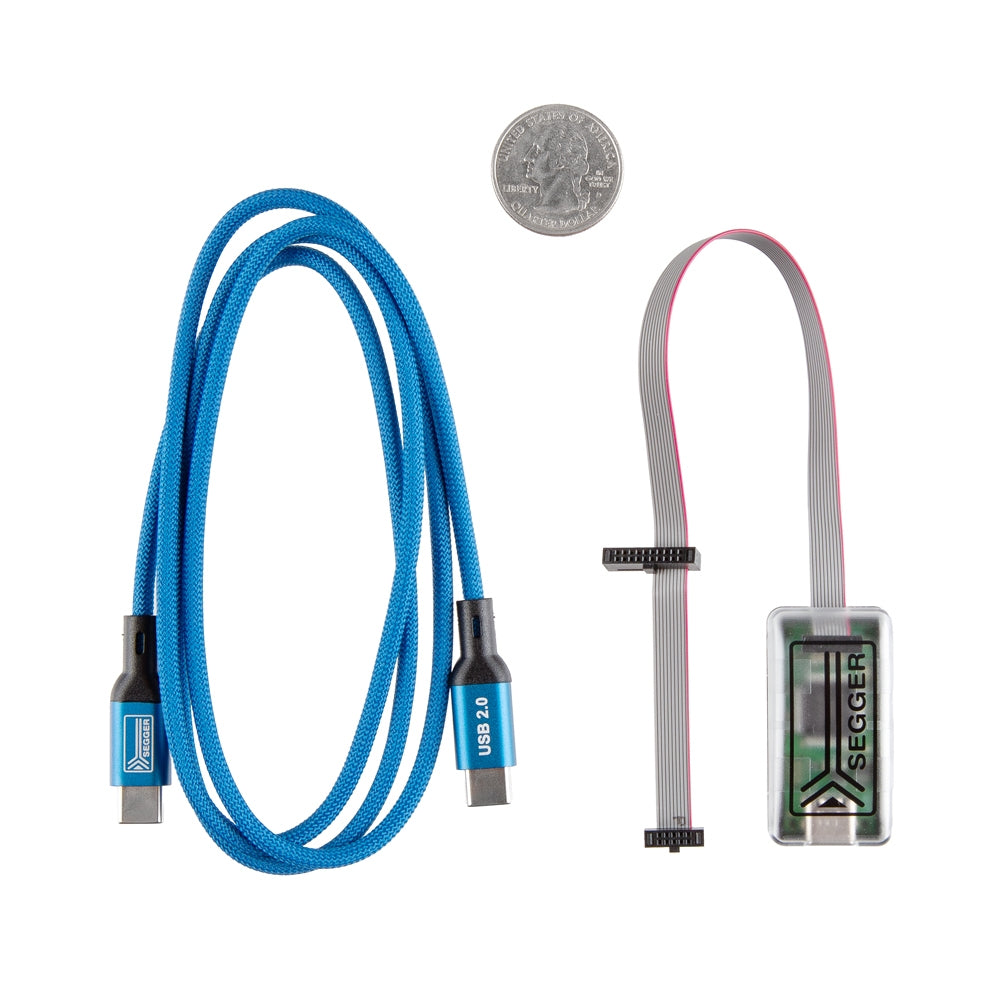

- Size (without cables): 42.5mm x 22mm x 8mm
- Weight (without cables): 10g
- Available Interfaces:
- USB-C

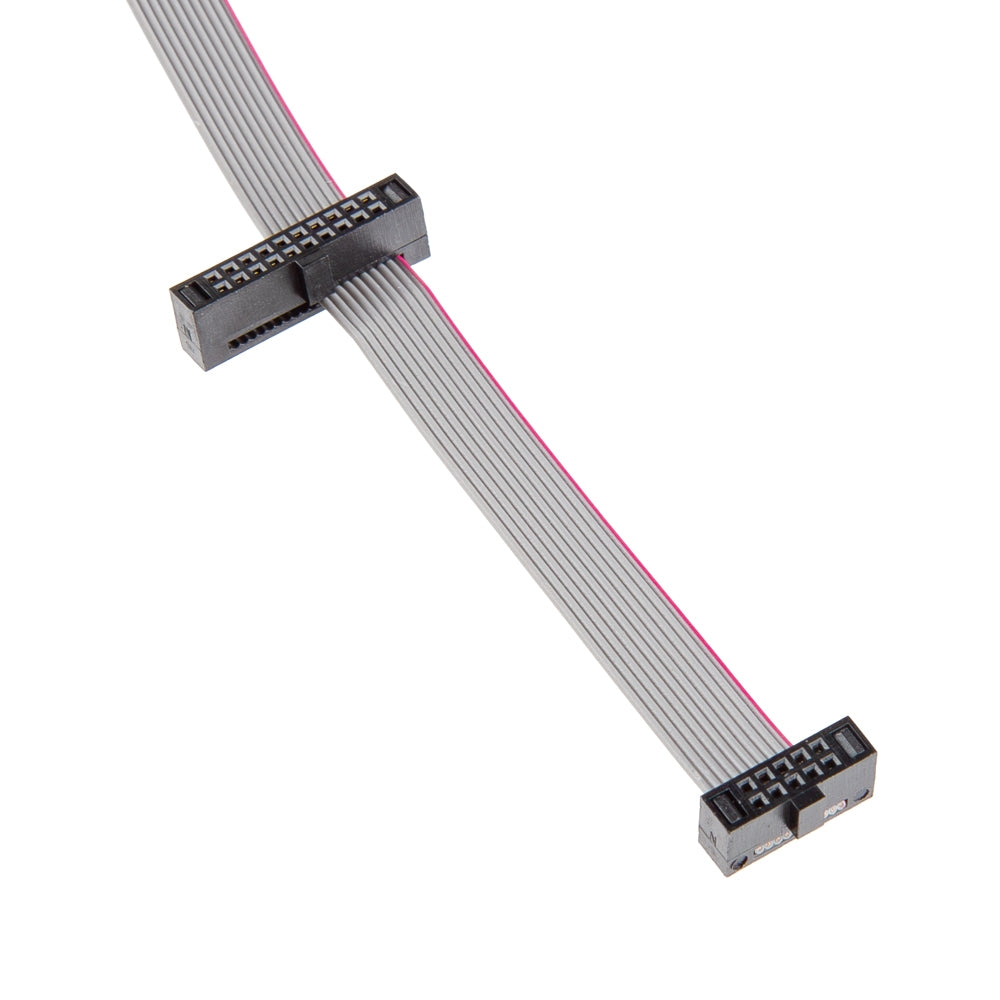

- 9-pin 0.05" Samtec FTSH connector
- Power Supply: USB powered, max 30mA
- Target Interface Voltage (VIF): 1.8V, 3.3V
- Current drawn from target voltage sense pin (VTRef): < 170µA
- Reset Type: Open drain with 150 Ohms series resistor. Can be pulled low or tristated
- JTAG speed: Max. 4 MHz
- SWO sampling frequency: Max. 4 MHz
- Data input rise time (Trdi): Trdi <= 20ns
- Data input fall time (Tfdi): Tfdi <= 20ns
- Data output rise time (Trdo): Trdo <= 10ns
- Data output fall time (Tfdo): Tfdo <= 10ns
- Clock rise time (Trc): Trc <= 10ns
- Clock fall time (Tfc): Trc <= 10ns
