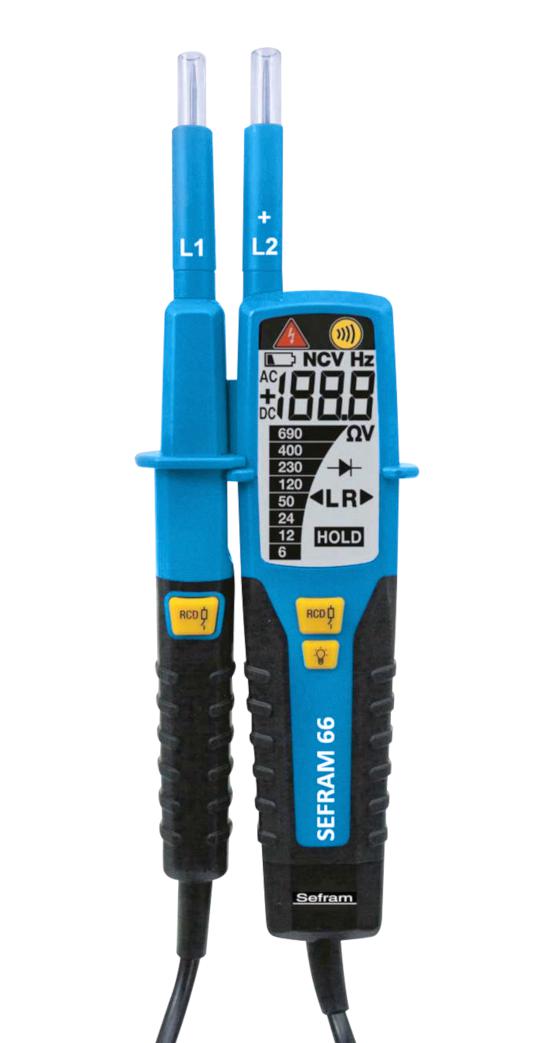

- LCD voltage and continuity tester with 1V to 1000 VAC, 1 to 1500VDC voltage range
- Start voltage is 6V, CAT III 1000V and CAT IV 600V rated, IP 64 protected
- Polarity indication, continuity test, single-pole phase test, phase rotation test
- Torch light, side detection for ELV and continuity, auto-power ON / OFF
- High resolution voltage of 0.1V (<30V ), non-contact voltage detection
- Diode test, voltage test with load
- Resistance measurement, frequency measurement, vibration motor for ELV
- Easy-to-use instrument, direct reading of voltage and polarity on LCD backlight screen
- Field device resilient to shocks designed, tested and approved according to the EN61243-3 standard
- Dimension is 239 x 68 x 29mm, weight is 235g with batteries, warranty is 2 years
Footnotes Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
Product details
| Voltage Measuring Range AC |
1V to 1kV |
| Meter Display Type |
LCD |
| Operating Temperature Min |
-15°C |
| Operating Temperature Max |
55°C |
| Product Range |
- |
| Plug Type |
- |
Other details
| Brand |
SEFRAM |
| Part Number |
SEFRAM66 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
