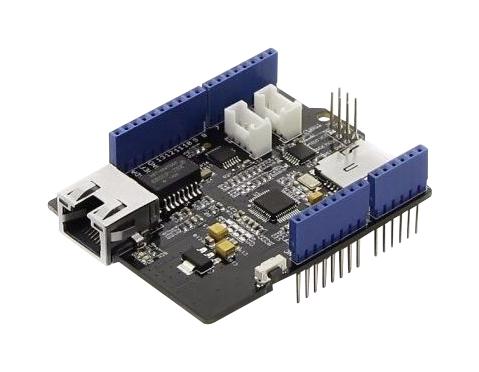

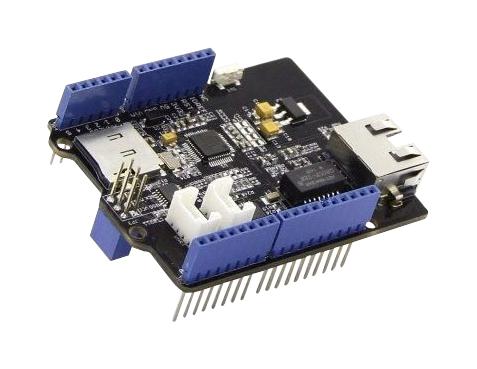

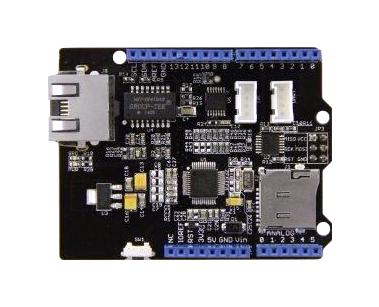

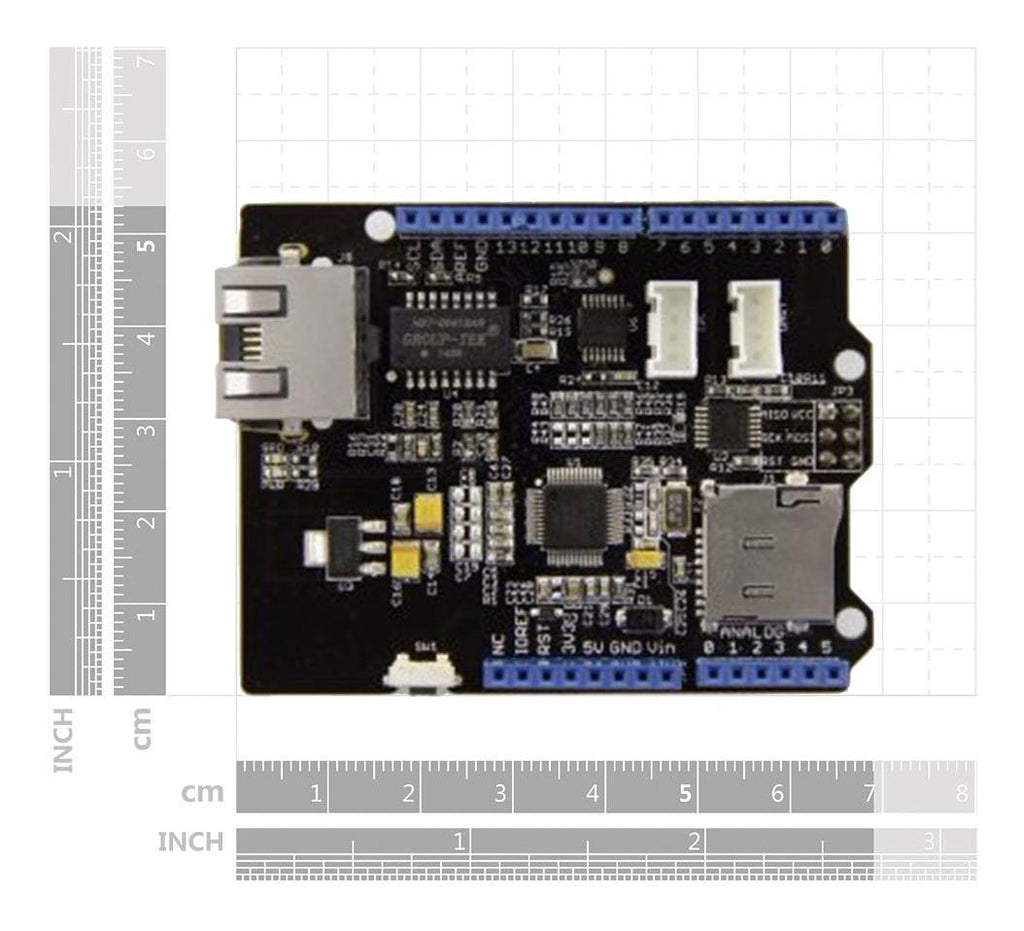

Easily add Ethernet connectivity to your Arduino project, ideal for any project that needs wired internet access. Physically the shield has been designed with a low profile LAN port to enable stacking additional shields on top if required.
- Features 2 Grove connectors (I2C and UART) and MicroSD slot for additional data storage
- Supports Wake on LAN over UDP, power down mode and Auto Negotiation (Full/Half Duplex)
- High speed Serial Peripheral Interface (SPI MODE 0,3)
- Embedded 10/100 Ethernet PHY
- Internal 32K memory for TX/RX buffers
- 3.3V Operation with 5V I/O signal tolerance
Contents
Shield only
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
W5500 |
| Silicon Family Name |
- |
| For Use With |
Arduino Boards |
| Kit Contents |
W5500 Shield |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
103030021 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
| Manufacturer Product Page EN |
|
