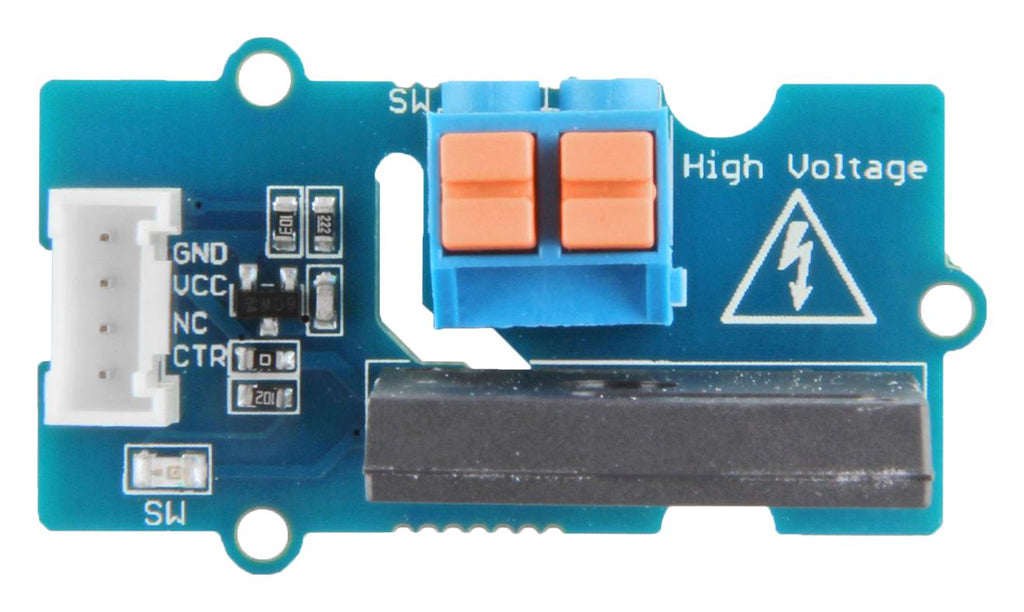

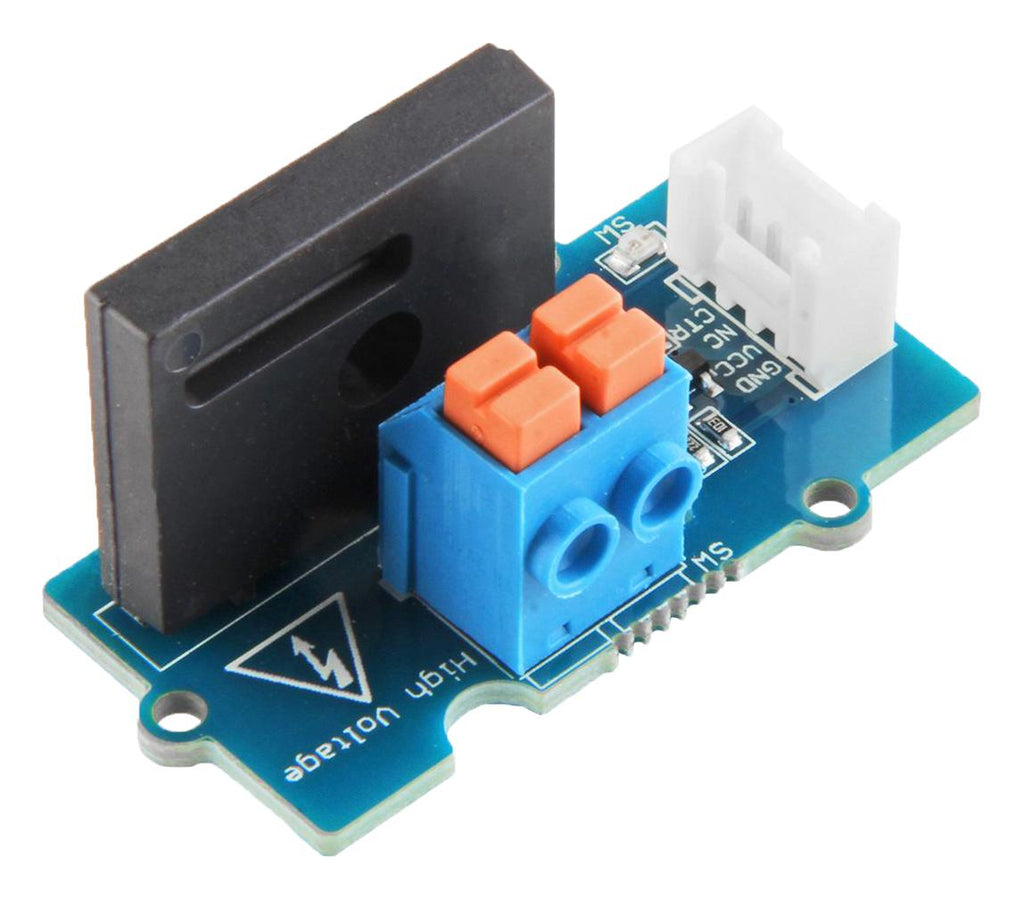

Grove - Solid State Relay V2 is based on the high-quality G3MC202P module, which allows you to use a 5VDC to control MAX. 240VAC. With the help of Grove interface, it becomes very convenient to use the SSR with your Arduino.
- Operating input voltage range fro 4V to 6V
- Rated input voltage is 5V
- Rated load voltage 100 to 240 VAC 50/60 Hz
- Load current is 0.1A to 2A
- Leakage current is 1.5mA maximum (at 200VAC)
- Insulation resistance 1,000Mohm minimum (at 500VDC)
Contents

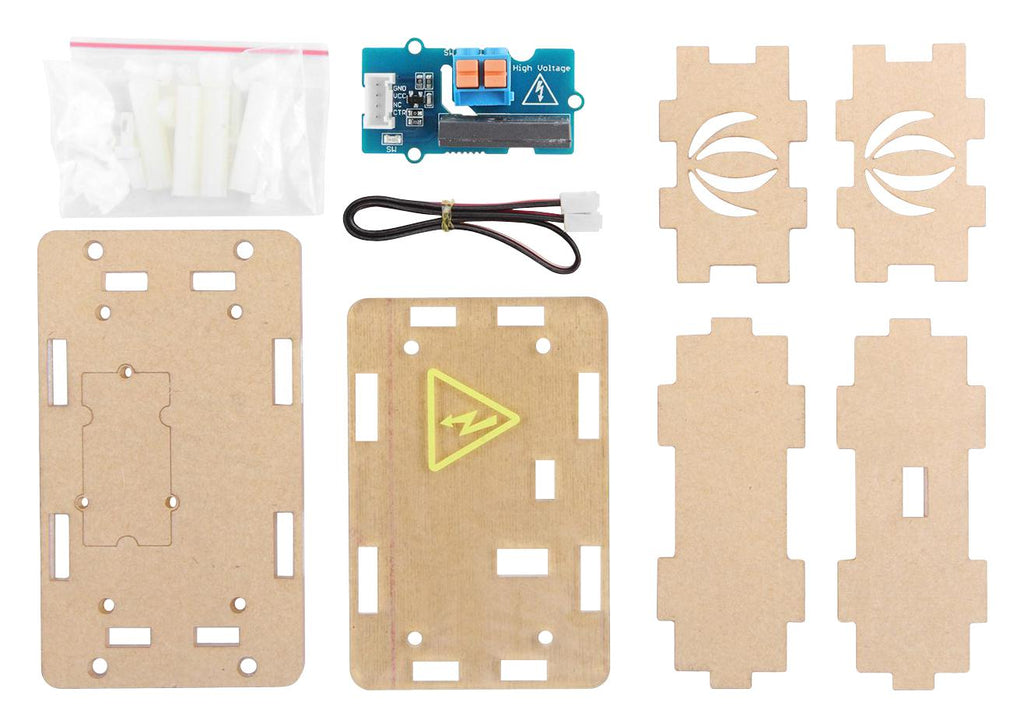

Grove - solid state relay V2 x 1, Grove cable x 1, A set of acrylic shell x 1.
Product details
| Accessory Type |
Solid State Relay Board |
| For Use With |
Arduino & Raspberry Pi Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
103020137 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
