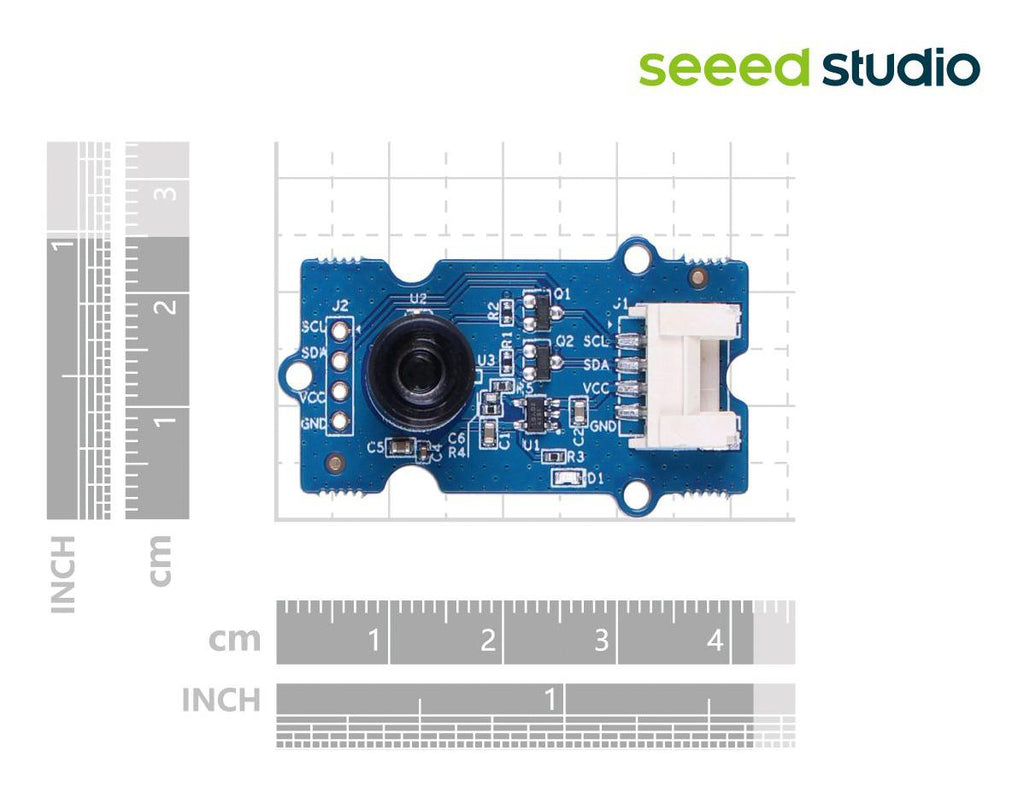

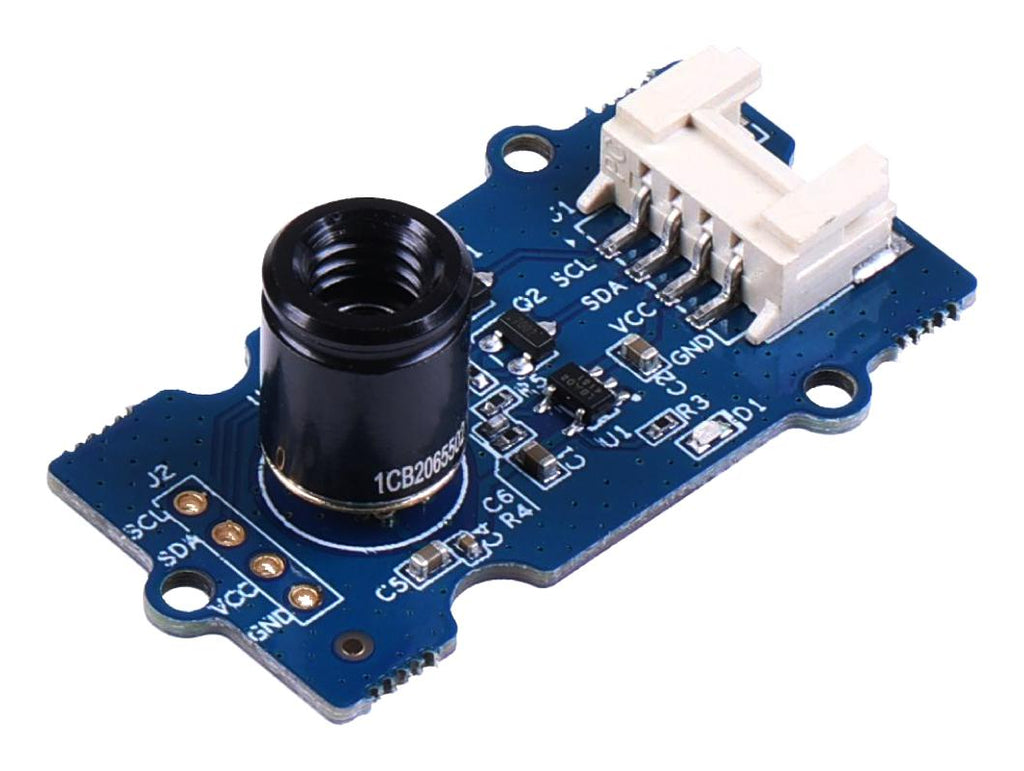

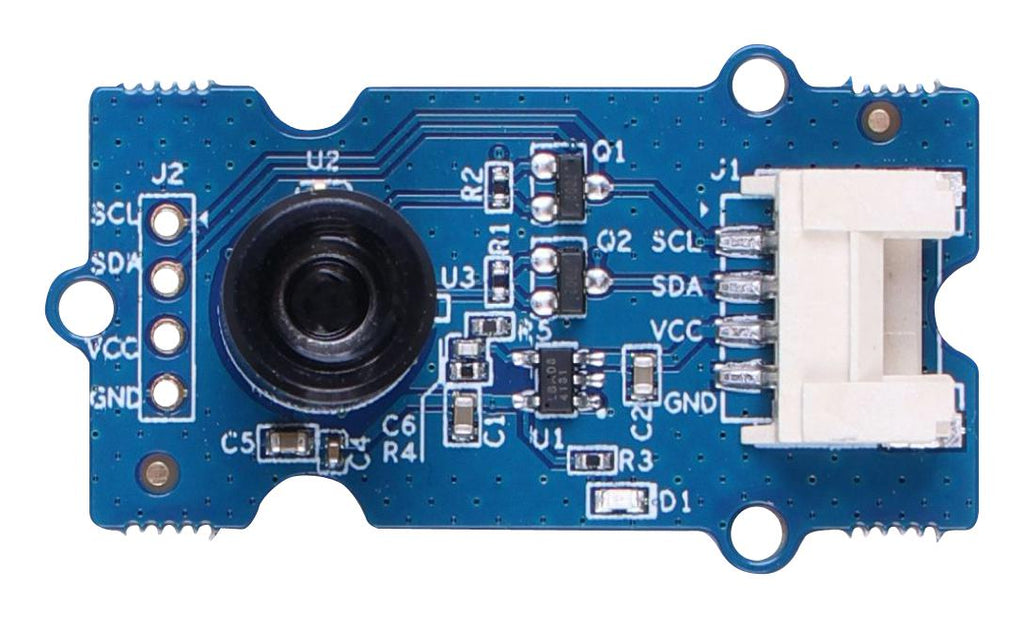

Grove - Thermal Imaging Camera carries a 16x12 array of thermal sensors (MLX90641) and it can detect the temperature of objects from far away with a centre area accuracy of ±1°C and average accuracy of ±1.5°C. In order to obtain the thermal images easily, the I2C protocol is used to get the low-resolution images from the camera. The FOV (Field of View) of this camera is 55°x35°, and the temperature measurement range is -40°C to 300°C. Typical applications include high precision non-contact temperature measurements, microwave ovens, intrusion / movement detection systems, temperature sensing element for residential, commercial and industrial building air conditioning, industrial temperature control of moving parts and visual IR thermometers.
- I2C Grove interface for easy communication with an MCU
- Fully calibrated IR array for convenient setup
Other details
| Brand |
SEEED STUDIO |
| Part Number |
101020992 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
