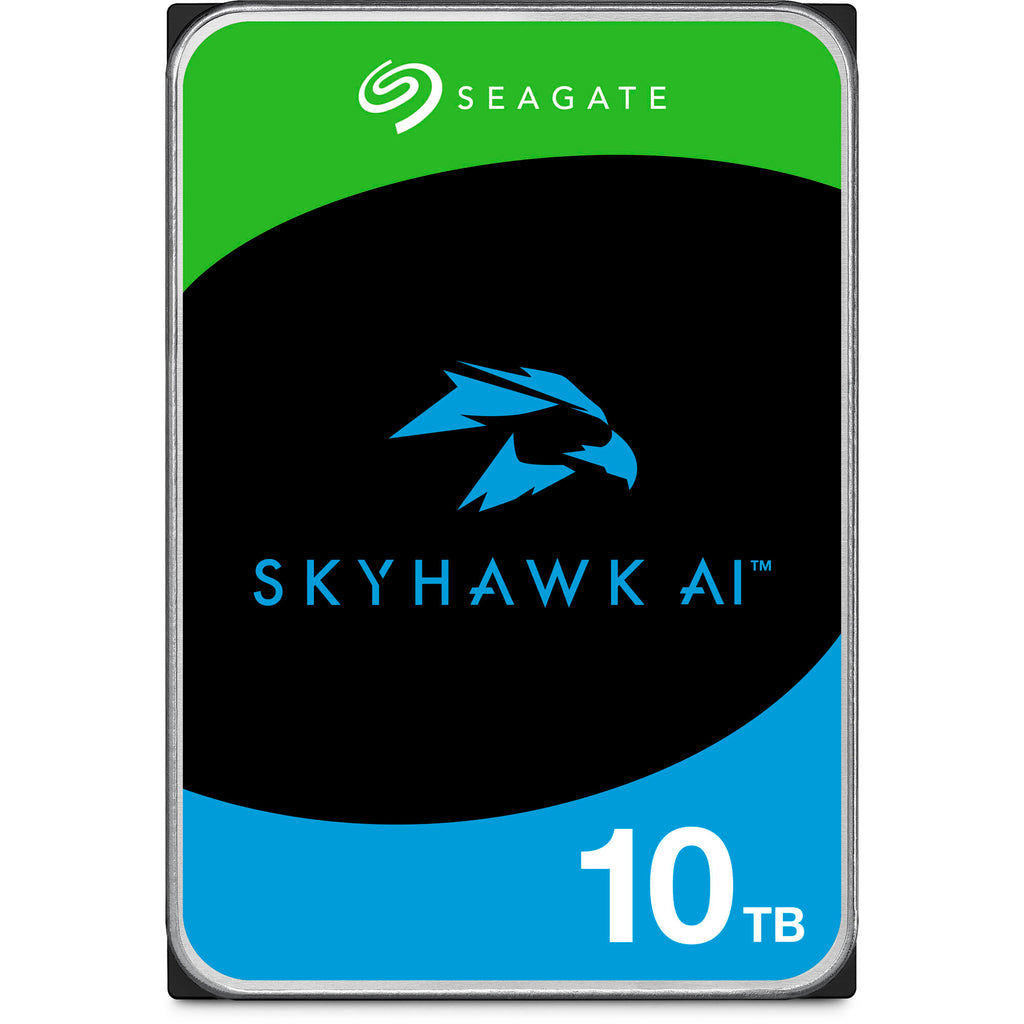

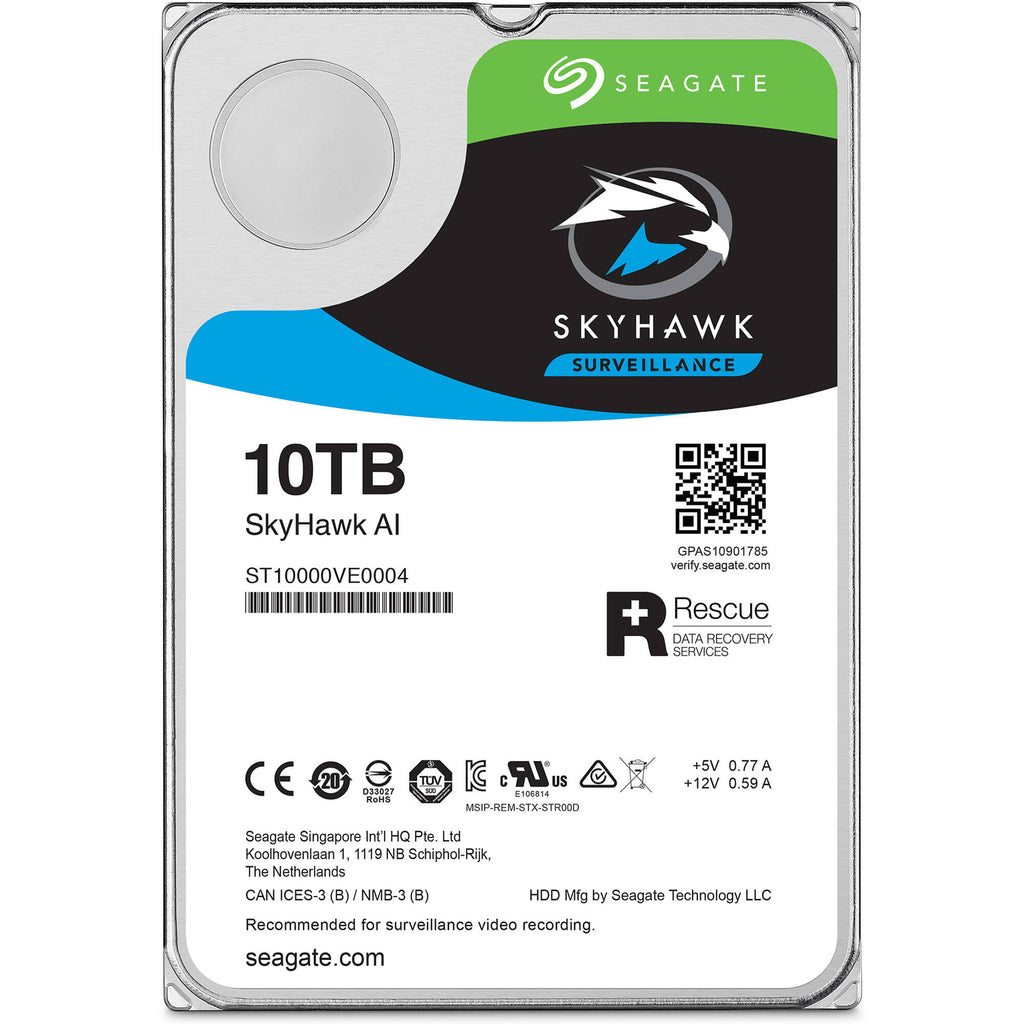

Seagate AI Internal HDD Overview
Designed for NVR (network video recorders) and AI-enabled NVR systems, the 10TB SkyHawk AI 7200 rpm SATA III 3.5" Internal Surveillance HDD from Seagate is well-suited for units with 16 or more drive bays. Engineered for 24/7 workloads, or 8760 operational hours per year, this SkyHawk AI drive supports up to 64 HD cameras and 32 additional AI streams, or 16 AI channels. Seagate's ImagePerfect AI technology helps to deliver zero dropped frames, while high reliability is backed by a workload rate of 550TB per year. Additionally, SkyHawk Health Management helps protect your surveillance storage by focusing on prevention, intervention, and recovery options. Should you use this drive in a RAID, integrated RAID RapidRebuild technology helps provide faster volume rebuilds.
Seagate built this SkyHawk AI drive with storage capacity of 10TB and a 3.5" form factor, plus a SATA III 6 Gb/s interface, a 256MB cache, and a rotational speed of 7200 rpm, all of which help to ensure uninterrupted data transfers with a sustained rate of up to 245 MB/s. Data reliability is further enhanced by 300,000 load/unload cycles, a 2 million hour MTBF, 1 per 1015 non-recoverable read errors per bits read, and an AFR (annualized failure rate) of 0.44%.
Provides improved image integrity alongside additional AI workload support in always-on, AI-enabled surveillance systems.
Designed to Support an Additional 32 AI Streams
This SkyHawk AI drive will support an additional 32 AI streams, while simultaneously recording footage from up to 64 HD cameras.
Built to Handle Heavy Surveillance Workloads
Designed and built to handle heavy surveillance workloads in traditional video recording and advanced video analytic environments, this SkyHawk AI drive has an endurance rating of 550TB per year and can withstand greater workloads than standard surveillance drives.
Advanced Vibration Management
Advanced vibration management delivers improved and sustained performance in NVR systems with 16 or more bays.
SkyHawk Health Management
SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options. Included is RAID RapidRebuild, which helps provides faster volume rebuilds. Contact your Seagate sales rep for further information.
Not only is reliability improved, but the total cost of ownership is reduced, thanks to a 2 million hour MTBF rating and a limited 3-year warranty.
An optional 2-year Rescue Data Recovery Services plan provides access to Seagate's secure data recovery labs. Contact your Seagate sales rep for further information.
In the Box
- Seagate 10TB SkyHawk AI 7200 rpm SATA III 3.5" Internal Surveillance HDD (Retail)
- Limited 3-Year Manufacturer Warranty
Seagate AI Internal HDD Specs
| Storage Capacity |
Total: 10 TB SATA III (6 Gb/s) 3.5" HDD (7200 rpm) |
| Read Speed |
Maximum: 245 MB/s |
| Write Speed |
Maximum: 245 MB/s |
| Buffer |
256 MB |
HDD Specs
| Heads |
10 |
| Areal Density |
1215 Gb/in² |
| Disk Sector Format |
512n |
Reliability / Data Integrity
| Annualized Failure Rate (AFR) |
0.44 % |
| Encryption |
None |
| Load/Unload Cycles |
300,000 |
| Mean Time Between Failures (MTBF) |
2.0 Million Hours |
| Non-Recoverable Read Errors per Bits Read |
1 in 1015 |
Electrical
| Power Draw |
7.76 W (Idle)
10.09 W (Active)
0.96 W (Standby) |
| Supported Voltage |
5 VDC, 12 VDC |
Environmental
| Operating Shock |
70 G / 2.0 ms |
| Storage Shock |
300 G / 2.0 ms |
| Operating Vibration |
1.04 G / 10 to 500 Hz |
General
| Dimensions |
5.78 x 4.01 x 1.02" / 146.81 x 101.85 x 25.91 mm |
| Weight |
1.5 lb / 670 g |
Packaging Info
| Package Weight |
1.9 lb |
| Box Dimensions (LxWxH) |
8.9 x 6.1 x 3" |
