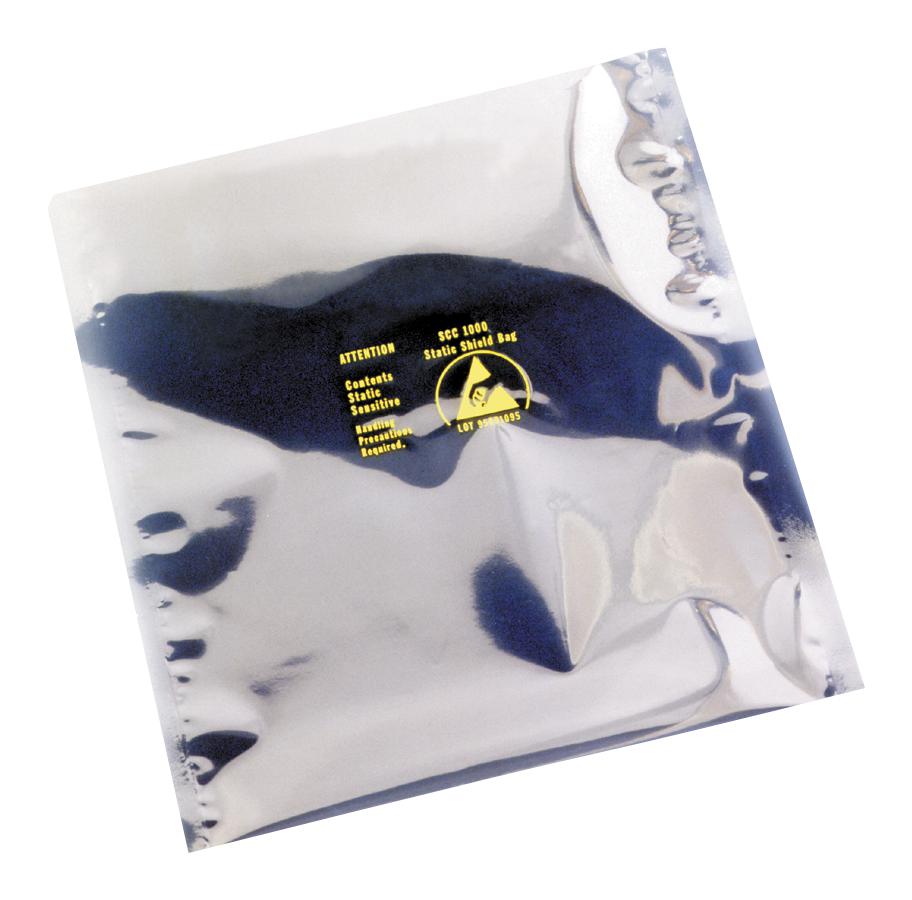

The 10068 is a 6 x 8-inch SCS transparent metal-in Static Shielding Bag designed to provide a static safe environment for sensitive electronic devices. Bag is printed with an ESD warning symbol and a lot code for traceability. The polyester dielectric in concert with the metal layer is intended to provide shielding of electrostatic discharge (ESD) and to help minimize the penetration of electric field. This bag is tested to meet or exceed certain electrical and physical requirements of static shielding bags, ANSI/ESD S541 and to be ANSI/ESD S20.20 program compliant.
- Heat sealable
- Pass marking adhesion
- 40% Transparency
- 0.5 to 3.5sec Time
- <2sec Static decay
- <10nJ ESD shielding
- <1x10¹¹R Interior and exterior surface resistance
Applications
Industrial
Product details
| Bag Type |
Static Shielding Bag (Metal-In) |
| Length - Imperial |
8" |
| Length - Metric |
203mm |
| Width - Imperial |
6" |
| Width - Metric |
152mm |
| Bag Thickness |
76.2µm |
| Bag Colour |
Transparent |
| Seal Type |
Heat Seal |
| Product Range |
1000 Series |
Other details
| Brand |
SCS |
| Part Number |
10068 |
| Quantity |
Pack of 100 |
| Technical Data Sheet EN |
 |
