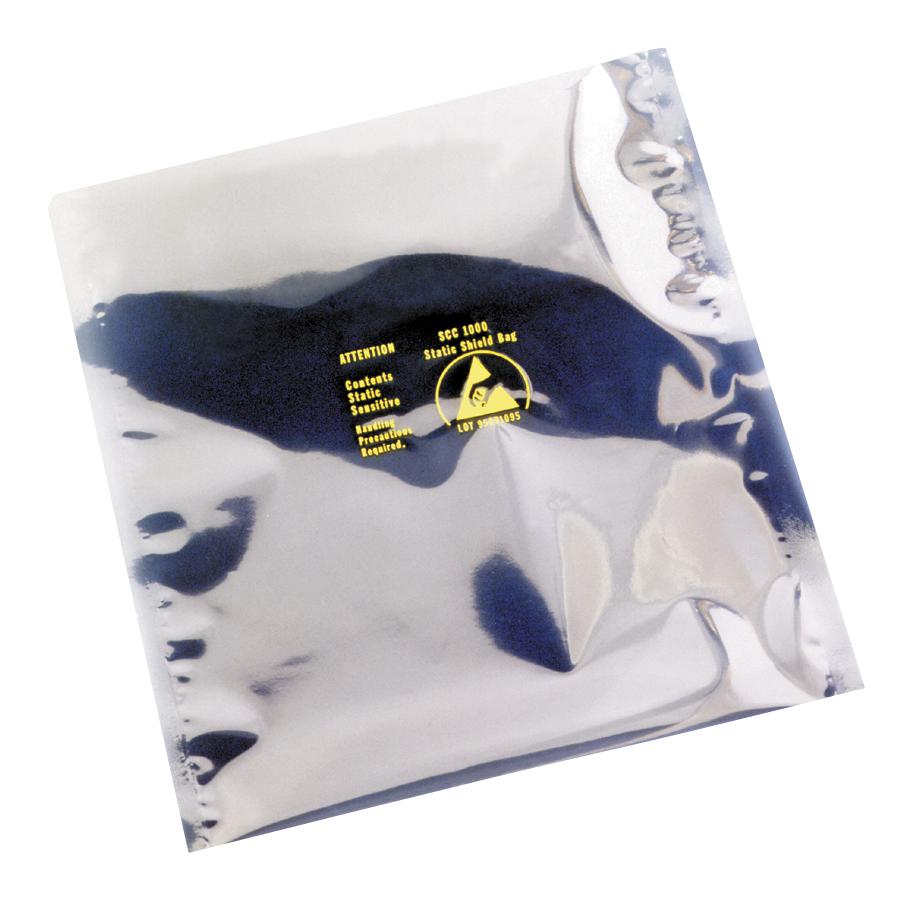

The 10046 is a 4 x 6-inch transparent open top Static Shielding Bag, made of polyester, metal, polyethylene laminate. This static shielding bag is designed to provide a static safe environment for sensitive electronic devices. Bags are printed with an ESD warning symbol and a lot code for traceability. The polyester dielectric in concert with the metal layer is intended to provide shielding of electrostatic discharge (ESD) and to help minimize the penetration of electric field.
- Four layer construction
- Tribocharging is minimized by the specially processed polyethylene
- Heat sealable
- 3mil Thickness
- <1x10¹¹R Surface resistance
- 0.5 to 3.5s Time
- 149 to 190°C Heat sealing temperature range
Applications
Maintenance & Repair
Product details
| Bag Type |
Static Shielding Bag (Metal-In) |
| Length - Imperial |
6" |
| Length - Metric |
152mm |
| Width - Imperial |
4" |
| Width - Metric |
102mm |
| Bag Thickness |
76.2µm |
| Bag Colour |
Transparent |
| Seal Type |
Heat Seal |
| Product Range |
1000 Series |
Other details
| Brand |
SCS |
| Part Number |
10046 |
| Quantity |
Pack of 100 |
| Technical Data Sheet EN |
 |
Price For Pack of 100 All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
