Description
SCIENCE IMAGE HDMI-SDI-MINI Overview

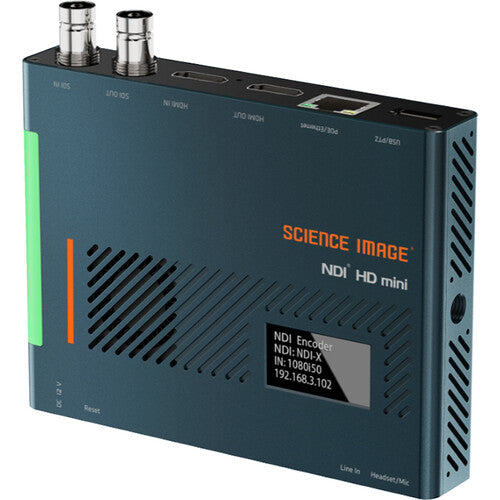

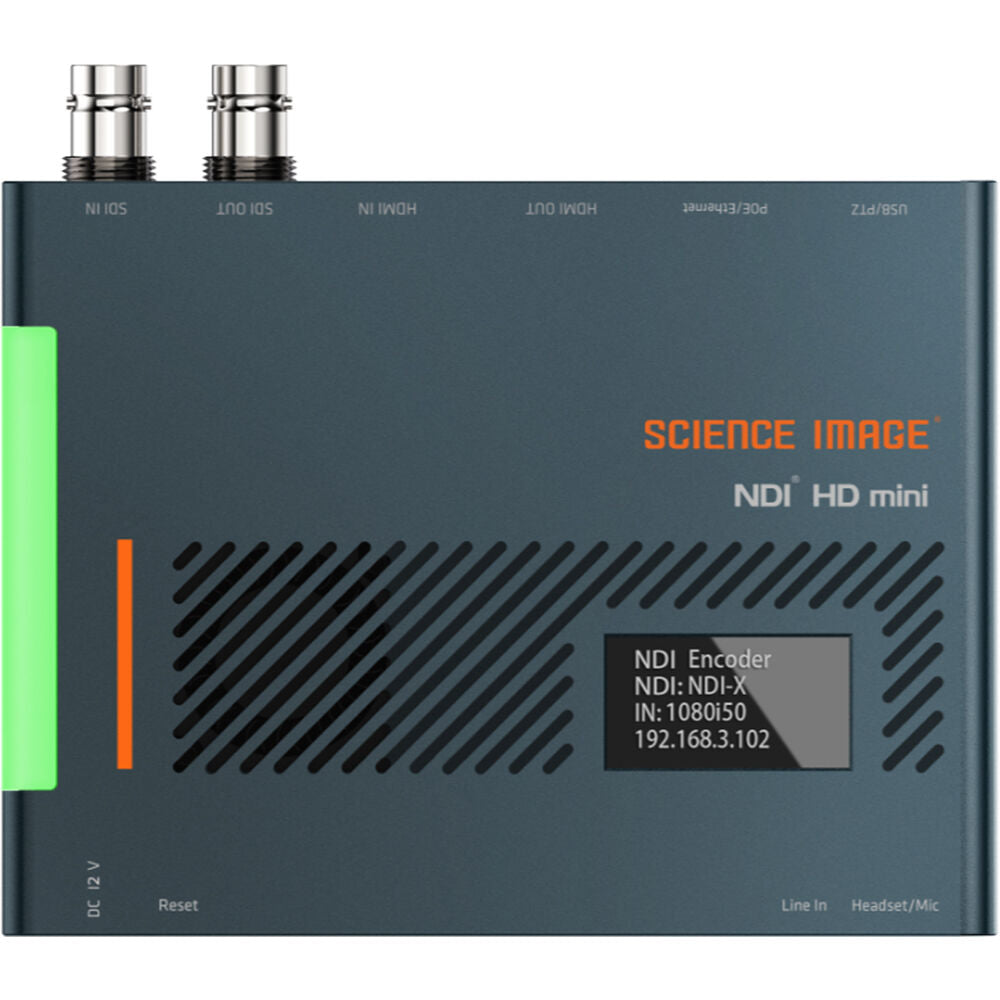

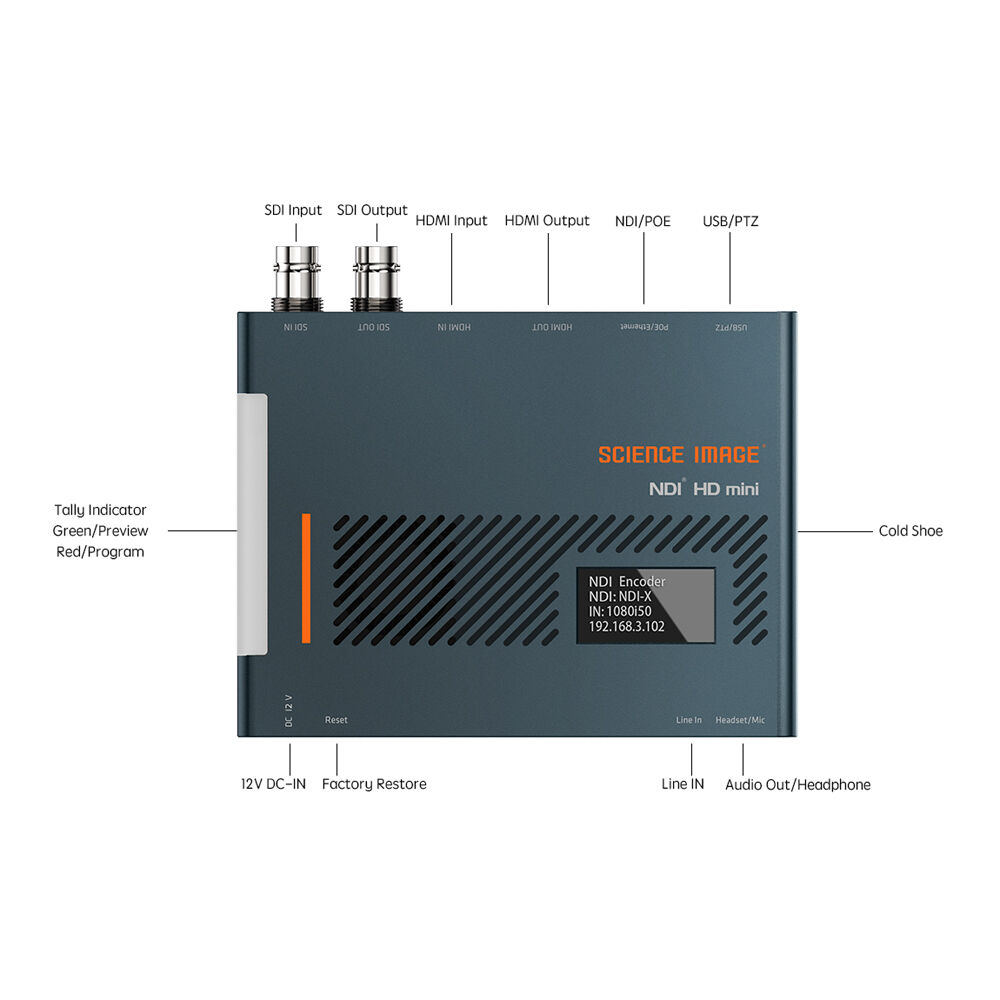

The compact NDI Mini HD Bidirectional 3G-SDI/HDMI Encoder/Decoder from SCIENCE IMAGE with both 3G-SDI and HDMI 1.4 inputs and outputs can encode or decode full NDI video up to 2160p30 with a small form factor. A large, matte tally light on the side of the device makes it ideal for use in live production environments. The design of the device features a 1.3" OLED display screen, which shows the unit's working status and parameters as well as input and output in real time.
The NDI Mini HD has a USB Type-C port for integration of PTZ cameras into the system. PTZ cameras can then receive commands over NDI, even if the camera itself is not NDI compatible. A 3.5mm stereo audio line-level input and headphone output are integrated into the back of the device for audio monitoring. Power can be received by the device either through the Ethernet input, the PTZ USB port, or the DC connection with the included 12 VDC power supply.
In the Box
- SCIENCE IMAGE NDI Mini HD Bidirectional 3G-SDI/HDMI Encoder/Decoder
- 12 VDC Power Supply
- 4 x International Conversion Plug
SCIENCE IMAGE HDMI-SDI-MINI Specs
| Inputs/Outputs | 1 x 1/8" / 3.5 mm TRRS A/V Female |
| Video Inputs | 1 x BNC (3G-SDI) Female 1 x HDMI (HDMI 1.4) Female |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Video Outputs | 1 x BNC (3G-SDI) Female |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
| Other I/O | 1 x USB-A PTZ Input 1 x RJ45 PoE Input |
| Expansion Slots | None |
| Input Video Format | SDI (4:4:4 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
| Input Audio Format | Analog: 48 kHz / 24-Bit |
| Output Video Format | SDI (4:4:4 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
| Output Audio Format | Analog: 48 kHz / 24-Bit |
| Embedded Audio | SDI |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
| HDCP Support | None |
| EDID Support | None |
| HDR Compatibility | None |
| Display Size | 1.3" |
| Tally Light | Yes |
| Wi-Fi | Yes |
| OS Compatibility | Windows 8.1 Windows 10 macOS 10.14 macOS 10.15 or Later *As of February, 2022: Check with manufacturer for the most up-to-date compatibility |
| Power I/O | 1 x Barrel (5 to 18 VDC) Input |
| PoE Support | PoE+ 802.3at |
| Power Consumption | Device: 10 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% (Non-Condensing) |

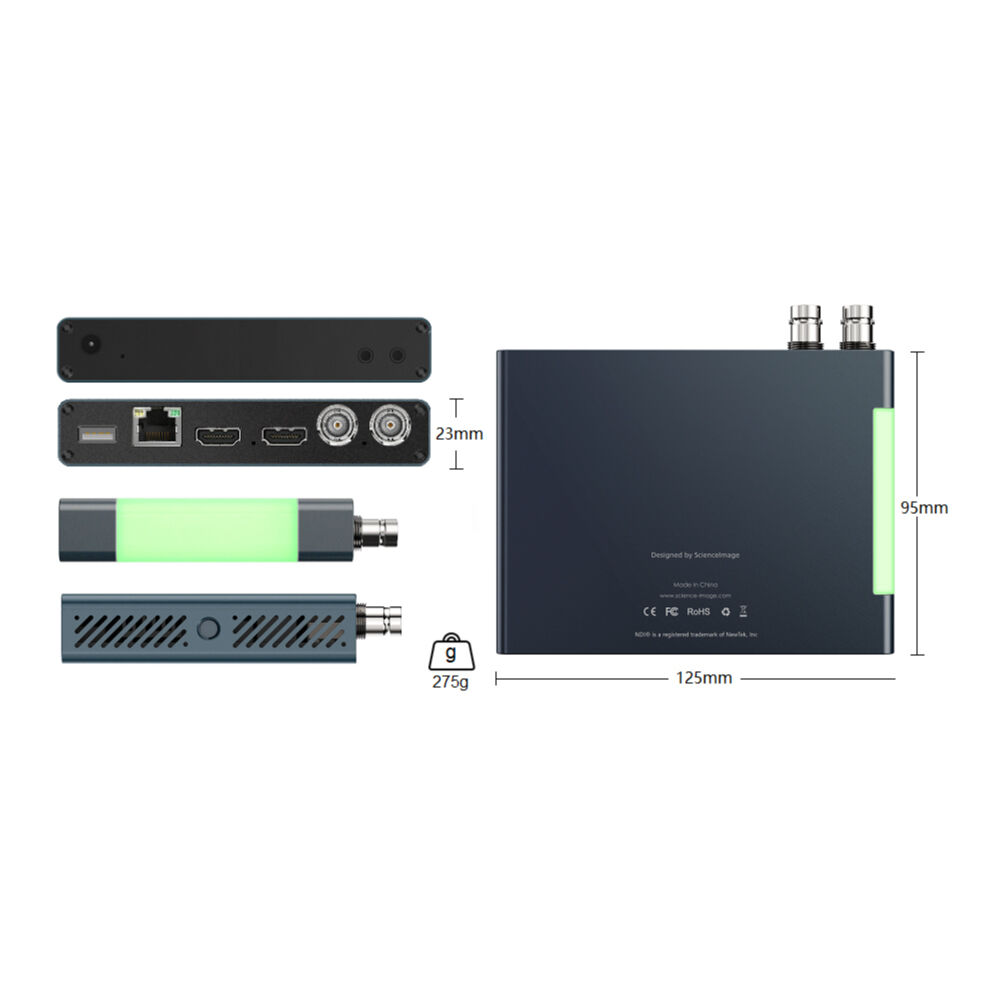

| Dimensions | 4.9 x 3.7 x 0.9" / 125 x 95 x 22 mm |
| Weight | 9.5 oz / 270 g |
| Package Weight | 1.25 lb |
| Box Dimensions (LxWxH) | 7.3 x 4.9 x 3.3" |
