Description

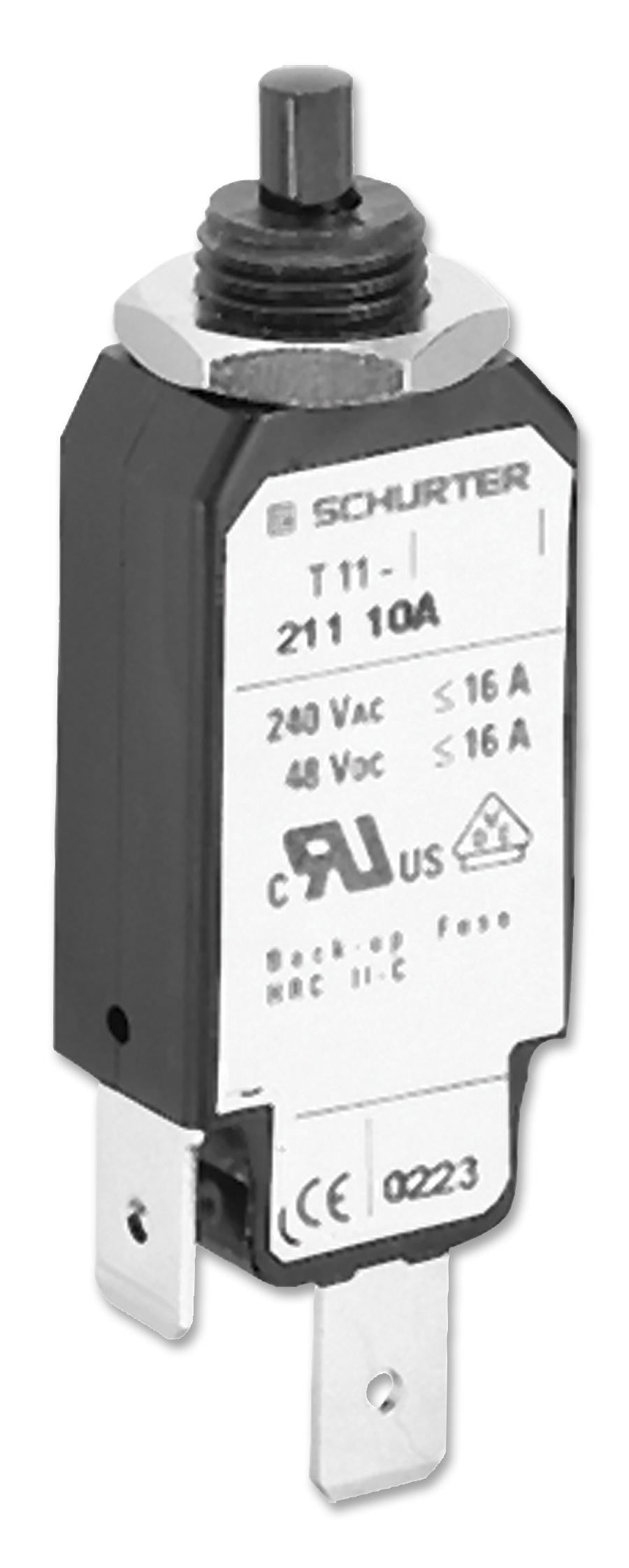

The T11 211 6A is a 1-pole 6A panel-mount threaded neck Thermal Circuit Breaker with 6.3x0.8mm quick connect terminals. The T11 series circuit breaker for equipment is a line of small, single pole push to reset, overload protective devices. The trip mechanism is of the superior latch type. A high contact force can be maintained until the unit trips. The Swiss precision design is simple with few moving parts. This results in an extremely reliable CBE with high resistance against shock and vibration. It has short circuit capacity of 96A at 240VAC voltage.
- Wide rated current range
- Compact and reliable design
- Immunity to inrush currents and line transients
- Reset type actuator
- -5 to +60�C Ambient temperature range
Applications
Consumer Electronics, Power Management, Industrial
Product details
| Voltage Rating V AC | 240VAC |
| Current Rating | 6A |
| Product Range | T11 Series |
| Circuit Breaker Mounting | Panel |
| Voltage Rating V DC | 48VDC |
| No. of Poles | 1 Pole |
Other details
| Brand | SCHURTER |
| Part Number | T11 211 6A |
| Quantity | Each |
| Technical Data Sheet EN |  |
