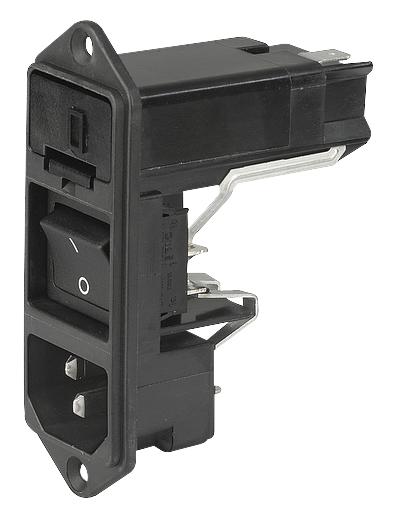

The KD14.1101.151 is a GST IEC C14 Power Entry Module without filter. It has a 2-pole fuseholder, a 2-pole rocker line switch and 4.8x0.8mm quick connect terminals. It is suitable for appliances with protection class I according to IEC 61140.
- All single elements are already wired
- Fuse drawer finger grip can be removed by hand
- Suitable for use in equipment according to IEC/UL 60950
- IP40 Protection rating
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
SCHURTER |
| Part Number |
KD14.1101.151 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Application Note EN |
|
| 3D Product Image EN |
|
| Product Change Notice EN |
|
| Application Note EN |
|
