Description

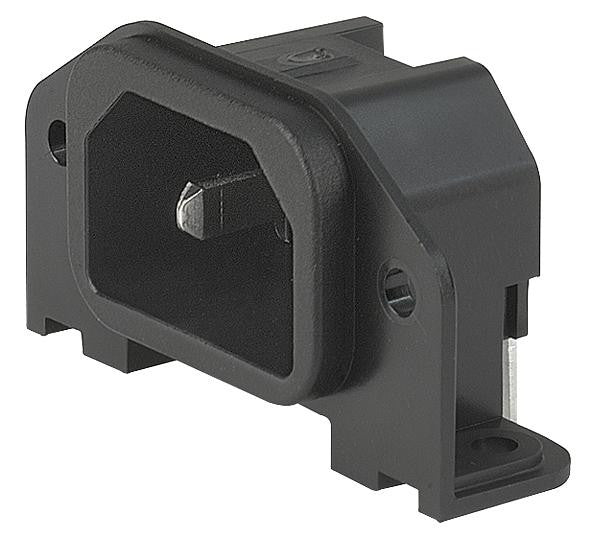

The GSP1.8101.1 is a rear-side screw-on panel-mount GST IEC C14 Inlet with 4.8 x 0.8mm ground terminal. It is suitable for appliances with protection class I according to IEC 61140. The housing is made of black UL94V-0 thermoplastic. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
- Without insulation cover
- Ground terminal
- Variant with notch for V-Lock mating cordsets
- IP40 Protection rating
Applications
Power Management
Product details
| Gender | Plug |
| Current Rating | 15A |
| Product Range | - |
| Contact Termination Type | Through Hole |
| Voltage Rating | 250V |
| Connector Mounting | Panel Mount |
Other details
| Brand | SCHURTER |
| Part Number | GSP1.8101.1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
