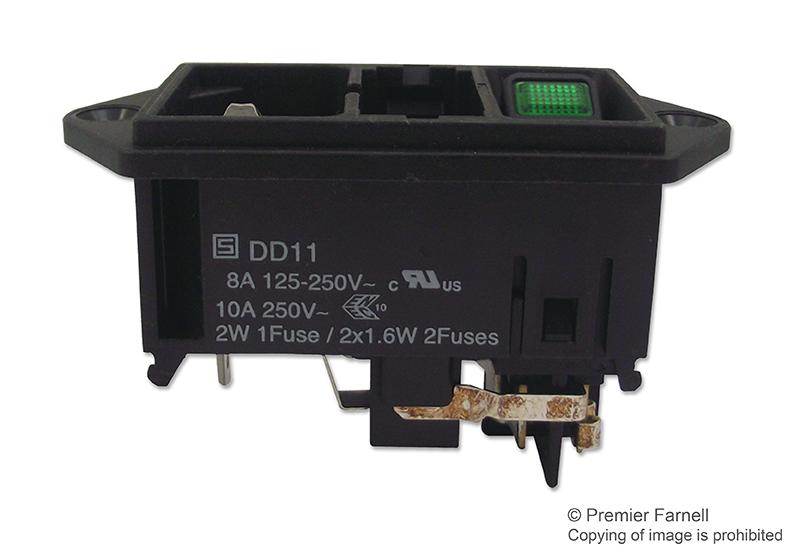

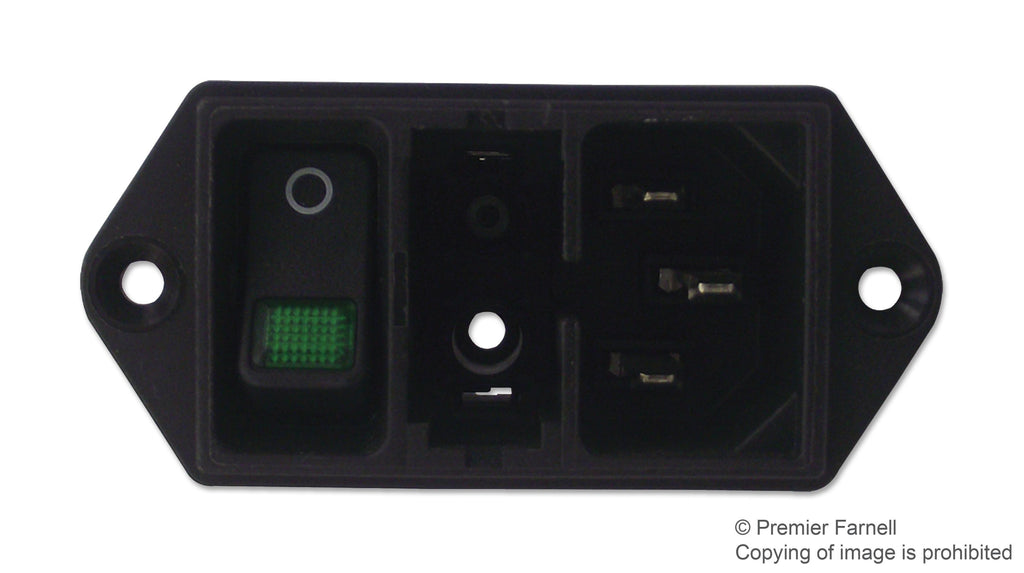

The DD11 series Power Entry Module without line filter. Screw-on version from front or rear side panel mount. Appliance inlet protection class I, 2-pole line switch, fuse holder for fuse-links 5 x 20mm 1- or 2-pole functions. Ideal for application with high transient loads. Suitable for use in equipment according to IEC/UL 60950.
- V-Lock notch standard
- 4.8 x 0.8mm Quick-connect terminals
- Ultra-compact design
- Ideal for low profile designs
- All single elements are already wired
- Fuse drawer meets requirements of medical standard IEC/EN 60601-1
- Fusedrawer sold separately
Footnotes Please note that this item is sold without the back cover; for other options, please check datasheet and series. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
SCHURTER |
| Part Number |
DD11.0123.1110 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Application Note EN |
|
| Application Note EN |
|
| Product Change Notice EN |
|
