| ₹ 242.1 includes GST and import duties. | |
| B2B customers can avail ₹ 36.92 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

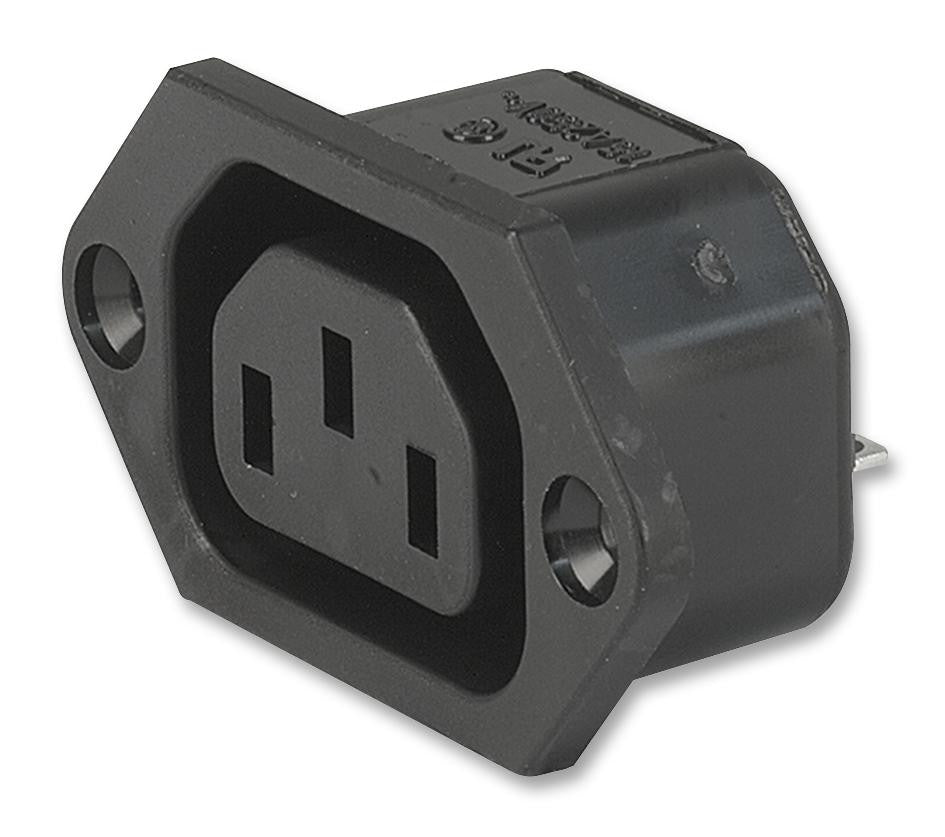

The 6600.3300 is a front-side screw-on panel-mount GST IEC Appliance Outlet with 6.8x0.8mm quick connect terminals. It is suitable for appliances with protection class I according to IEC 61140. Types for enhanced glow wire test requirements according IEC 60695-2-12 and -13 for the use in unattended household equipment according IEC 60335-1. The housing is made of black UL94V-0 polyamide 6. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
- IP30 Protection rating
Applications
Power Management
Product details
| Gender | Receptacle |
| Current Rating | 10A |
| Product Range | - |
| Contact Termination Type | Quick Connect |
| Voltage Rating | 250VAC |
| Connector Mounting | Panel Mount |
Other details
| Brand | SCHURTER |
| Part Number | 6600.3300 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 237.26 |
| 3-5 | ₹ 234.84 |
| 5-10 | ₹ 230.0 |
| 10+ | ₹ 225.15 |
Bulk discount will be automatically applied during checkout based on quantity.
