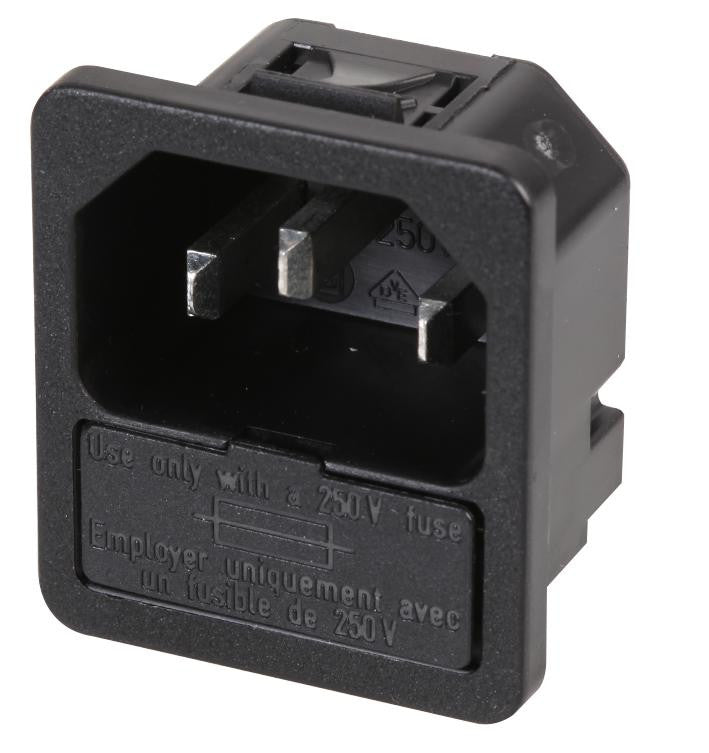

- Snap-in panel mounting from front
- 2 Function, 1-pole fused appliance inlets
- Requires 5x20mm fuse
- Housing Material: PA6, Black, UL 94V-0
- Protection Class: Class I acc. to IEC 61140
- Operating Temperature: -25°C to +70°C
- Cut-Out: 33.2x33.2mm
- Panel Thickness: 1.5mm
- 4.8x0.8mm Quick Connect Terminals
Product details
| Gender |
Plug |
| Current Rating |
10A |
| Product Range |
6200 Series |
| Contact Termination Type |
Quick Connect |
| Voltage Rating |
250VAC |
| Connector Mounting |
Panel Mount |
Other details
| Brand |
SCHURTER |
| Part Number |
6200.4215 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Application Note EN |
|
| Product Change Notice EN |
|
