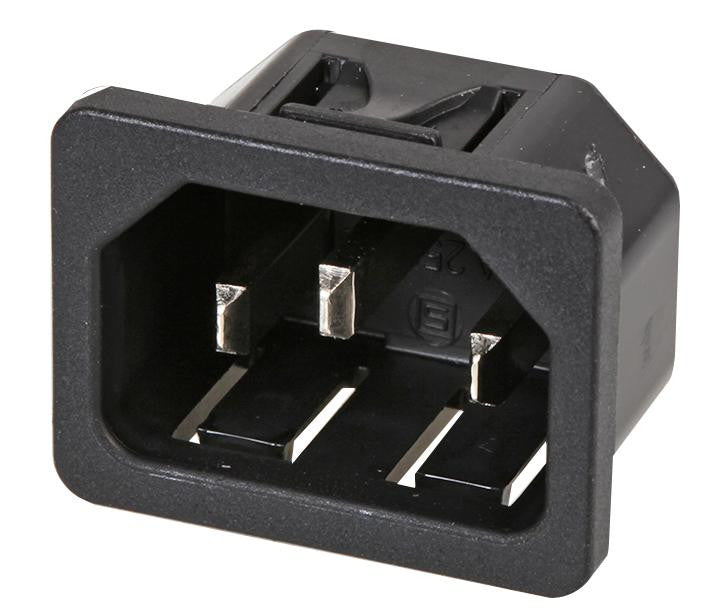

- Snap-on panel mounting from front
- 1 Function appliance inlet
- Housing Material: PA6, Black, UL 94V-0
- Protection Class: Class I acc. to IEC 61140
- Operating Temperature: -25�C to +70�C
- Cut-Out: 27.5x20mm
- Panel Thickness: 1.5mm
- 4.8x0.8mm Quick connect terminals
Product details
Gender |
Plug |
Current Rating |
10A |
Product Range |
6100-4 Series |
Contact Termination Type |
Quick Connect |
Voltage Rating |
250VAC |
Connector Mounting |
Panel Mount |
Other details
Brand |
SCHURTER |
Part Number |
6100.4215 |
Quantity |
Each |
Technical Data Sheet EN |
|
Application Note EN |
|
