Description

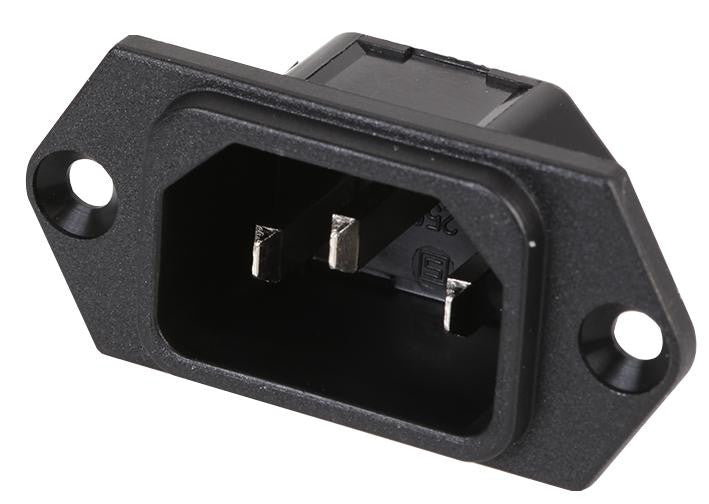

The 6100.3200 is a screw-on mounting Inlet Connector with quick connect terminals.
- Screw-on panel mounting from front or rear
- 1 Function appliance inlet
- Housing Material: PA6, Black, UL 94V-0
- Protection Class: Class I acc. to IEC 61140
- Operating Temperature: -25�C to +70�C
- Cut-Out: 28.5x21mm
- Fixing Centres: 40mm
Applications
Power Management
Product details
| Gender | Plug |
| Current Rating | 10A |
| Product Range | 6100-3 |
| Contact Termination Type | Quick Connect |
| Voltage Rating | 250V |
| Connector Mounting | Panel Mount |
Other details
| Brand | SCHURTER |
| Part Number | 6100.3200 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
