Description

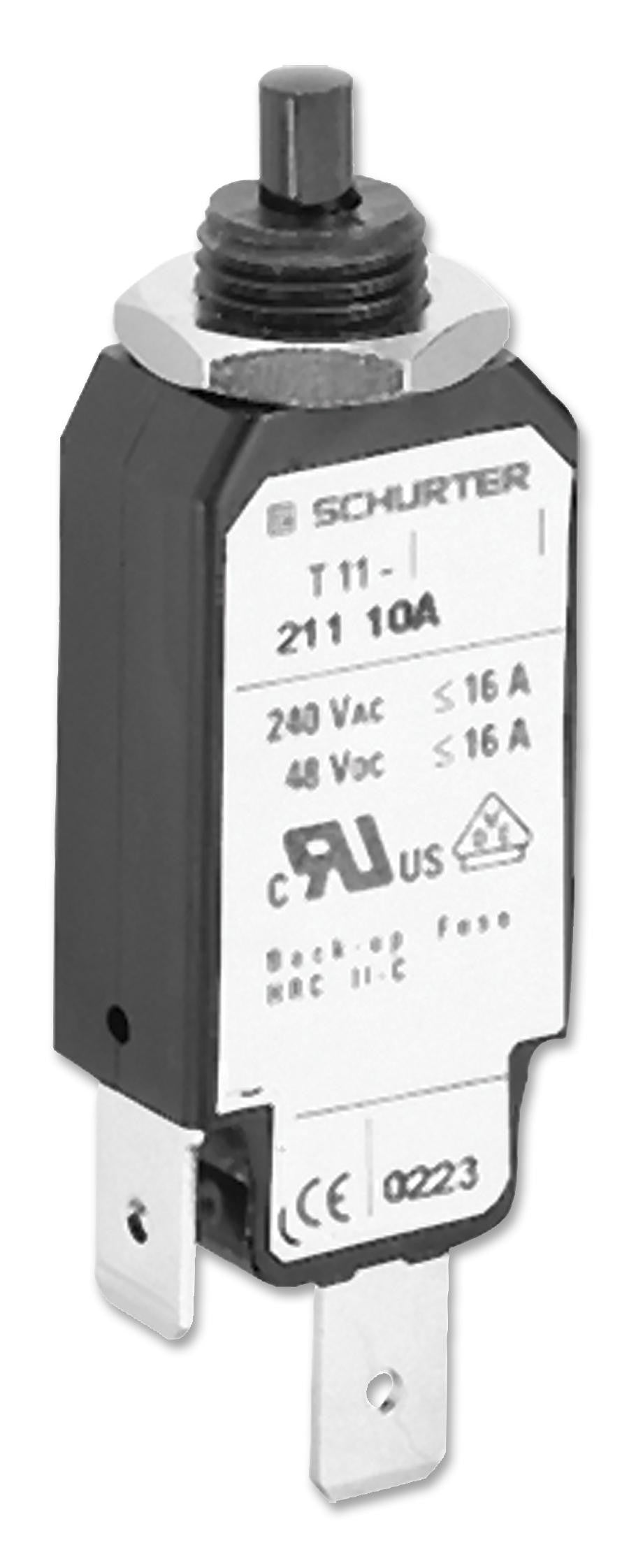

The 4400.0017 is a 1-pole 16A panel-mount threaded neck Thermal Circuit Breaker with 6.3x0.8mm quick connect terminals. The T11 series circuit breaker for equipment is a line of small, single pole push to reset, overload protective device. The trip mechanism is of the superior latch type. A high contact force can be maintained until the unit trips. The Swiss precision design is simple with few moving parts. This results in an extremely reliable CBE with high resistance against shock and vibration. It has short circuit capacity of 96A at 240VAC voltage.
- Wide rated current range
- Compact and reliable design
- Immunity to inrush currents and line transients
- Reset type actuator
- -5 to +60°C Ambient temperature range
Applications
Consumer Electronics, Power Management, Industrial
Product details
| Voltage Rating V AC | 240VAC |
| Current Rating | 16A |
| Product Range | - |
| Circuit Breaker Mounting | Panel |
| Voltage Rating V DC | 48VDC |
| No. of Poles | 1 Pole |
Other details
| Brand | SCHURTER |
| Part Number | 4400.0017 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1418.89 |
| 3-5 | ₹ 1404.41 |
| 5-10 | ₹ 1375.46 |
| 10+ | ₹ 1346.5 |
Bulk discount will be automatically applied during checkout based on quantity.
