Description

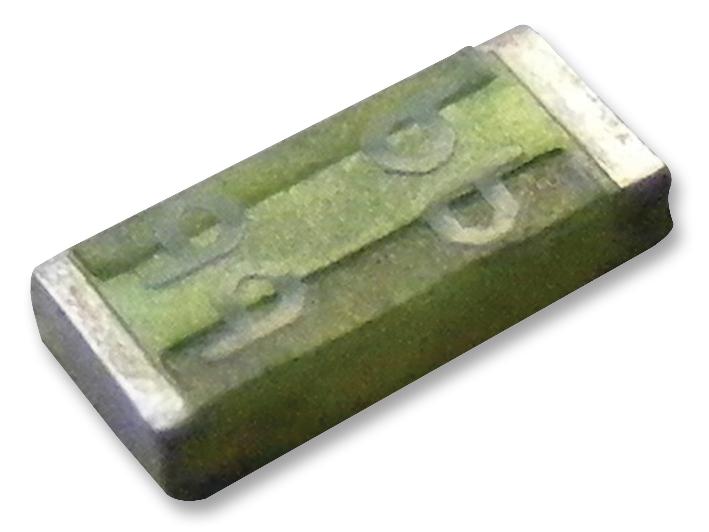

The 3413.0330.22 is a 15A/32VAC slow blow SMD Fuse with epoxy glass housing and tin-plated copper terminal. This UST 1206-series PCB/SMT mount fuse features high melting I²t-values and high current ratings up to 25A. Impermeable to potting compound. Provides low voltage primary and secondary protection. Devices meet applicable international safety standards. Used for circuits with inrush.
- 57mV Typical voltage drop
- 3.15R Typical cold resistance
- -55 to 90°C Ambient air temperature range
- UL94V-1 Flammability rating
Safety, Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | SCHURTER |
| Part Number | 3413.0330.22 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| Application Note EN | |
| Application Note EN | |
