Description

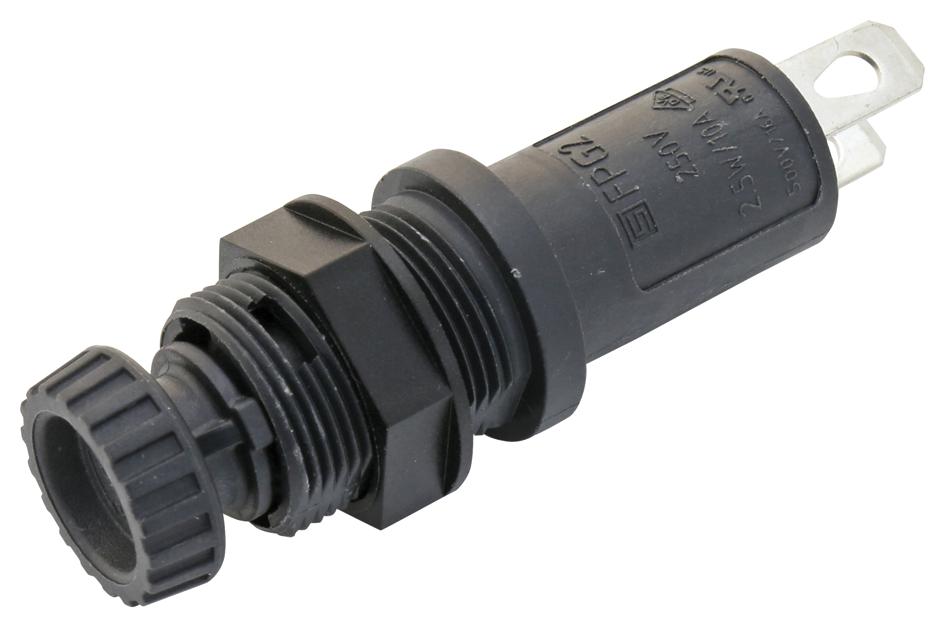

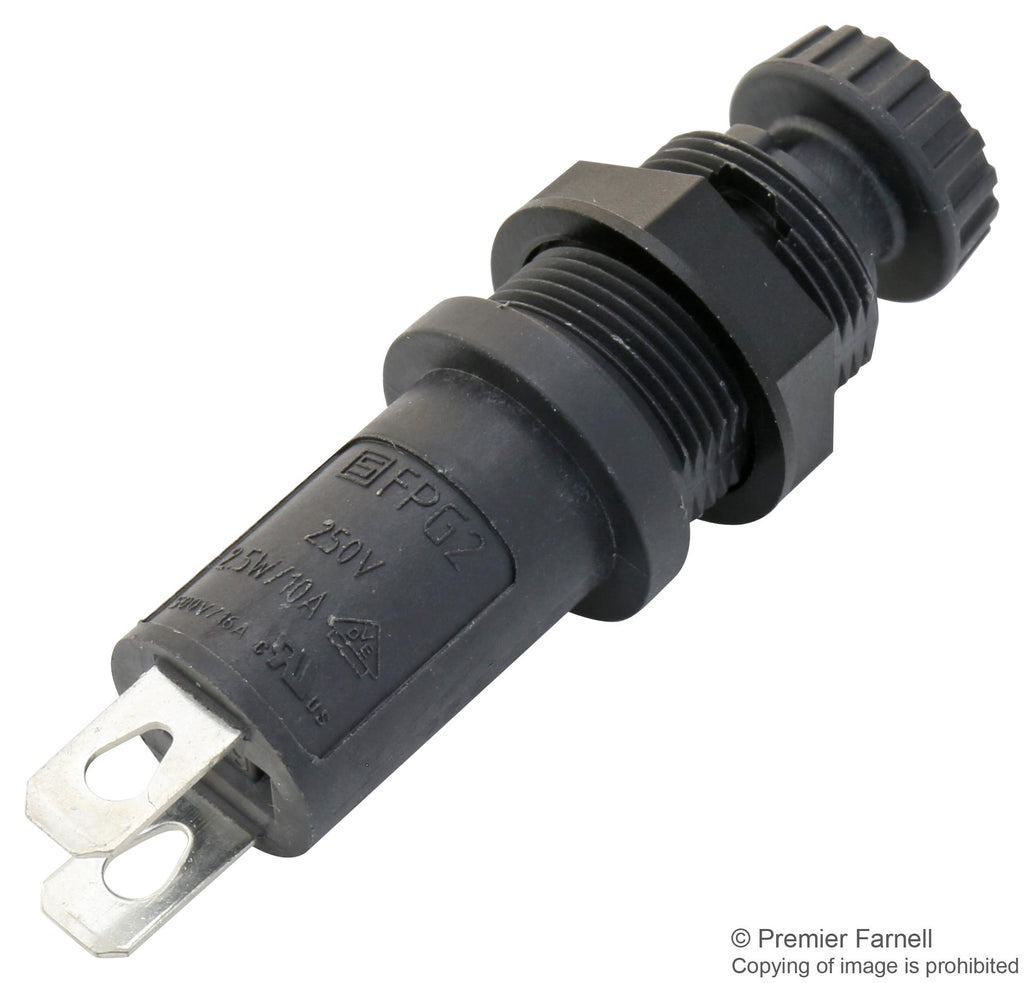

The FPG2 series Shock Safe rear side Panel-mount Fuseholder with black thermoplastic body and tin-plated copper alloy solder or quick-connect terminals. It supports mounting by means of fixing nut. It meets the new requirements of IEC 60335-1 for appliances in unattended use (clause 30.2.3). This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
- Rated: 10A at 250V AC
- PC2 Shock-Safe category
- IP40/IP67 Protection rating
- Iron soldering methods
- UL94V-0 Flammability rating
- Slotted cap/finger grip
- <=10mR at 20mV Contact resistance
- -40 to 85°C Admissible ambient air temperature
Industrial, Consumer Electronics, Medical
Other details
| Brand | SCHURTER |
| Part Number | 3101.0025 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Product Change Notice EN | |
| Application Note EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 393.23 |
| 3-5 | ₹ 389.22 |
| 5-10 | ₹ 381.2 |
| 10+ | ₹ 373.17 |
Bulk discount will be automatically applied during checkout based on quantity.
