Description

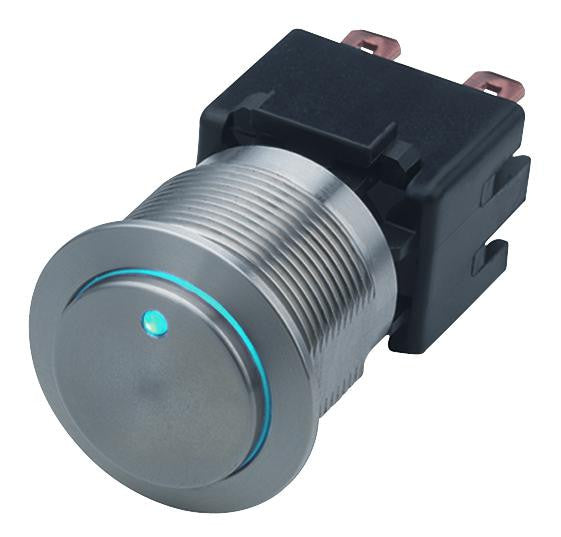

The 1241.6833.1124000 is a double-pole single-throw Vandal Resistant Switch with On-Off operation and MSM 22 LA PI blue configuration code. Assembly by mounting with nut and subsequent clipping of the switching element, high-quality stainless steel housing and actuator.
- Equipped with flat-pin plugs to permit fast connection
- Optional with point or ring illumination
- For use in harsh environments
Applications
Industrial
Product details
Switch Terminals | Quick Connect, Solder |
Operating Force | 10N |
Switch Operation | On-Off |
Contact Voltage DC Max | 30V |
Product Range | - |
Contact Voltage AC Max | 250V |
Illumination Colour | Blue |
Actuator / Cap Colour | - |
Contact Current Max | 12A |
Contact Configuration | DPST |
Other details
Brand | SCHURTER |
Part Number | 1241.6833.1124000 |
Quantity | Each |
Technical Data Sheet EN |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
Quantity | Price |
2 | ₹ 4736.82 |
3-5 | ₹ 4688.49 |
5-10 | ₹ 4591.82 |
10+ | ₹ 4495.15 |
Bulk discount will be automatically applied during checkout based on quantity.
