Description

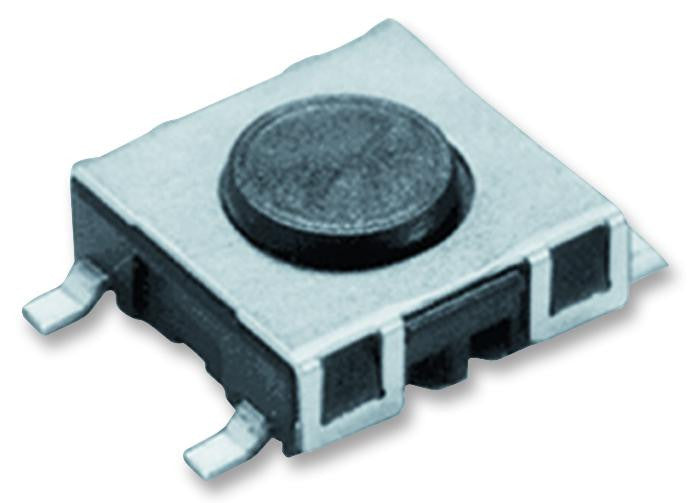

The 1241.1606.11 is a miniature push button Tactile Switch with a low height 4.55 to 4.95mm for surface mount. The SMS has large flat surfaces on the top side as well as on the other sides, which are also parallel to each other. This makes the SMS a perfect switch for automatic mounting and the SMS switch is suitable for the SMD soldering process IR-reflow. The switch comes with the gull-wing leads, IP67 degree of protection and gold-plated contacts.
- UL94V-0 High-temperature thermoplastic base
Applications
Industrial
Product details
| Contact Voltage DC Nom | 42V |
| Illumination | Non Illuminated |
| Switch Terminals | Solder |
| Product Range | SMS Series |
| Contact Current Max | 50mA |
| Operating Force | 1.8N |
Other details
| Brand | SCHURTER |
| Part Number | 1241.1606.11 |
| Quantity | Each |
| Technical Data Sheet EN |  |
