Description

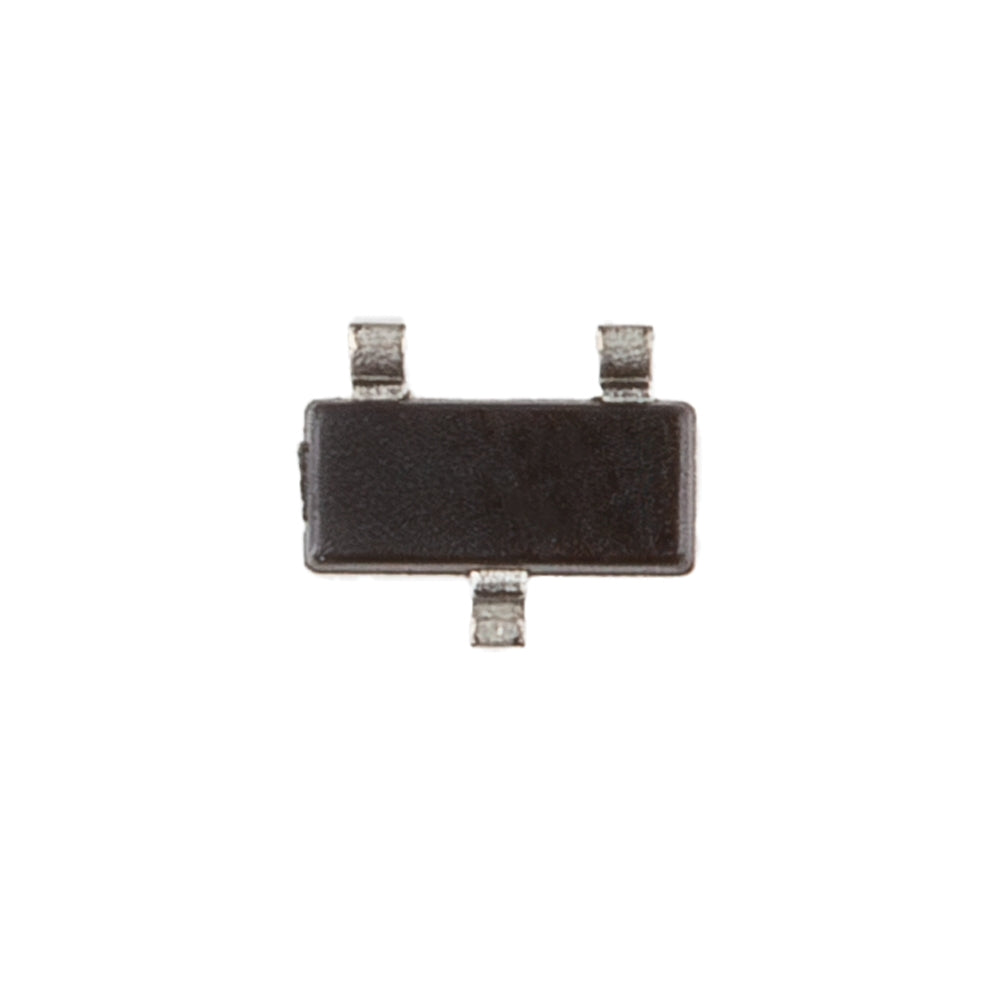

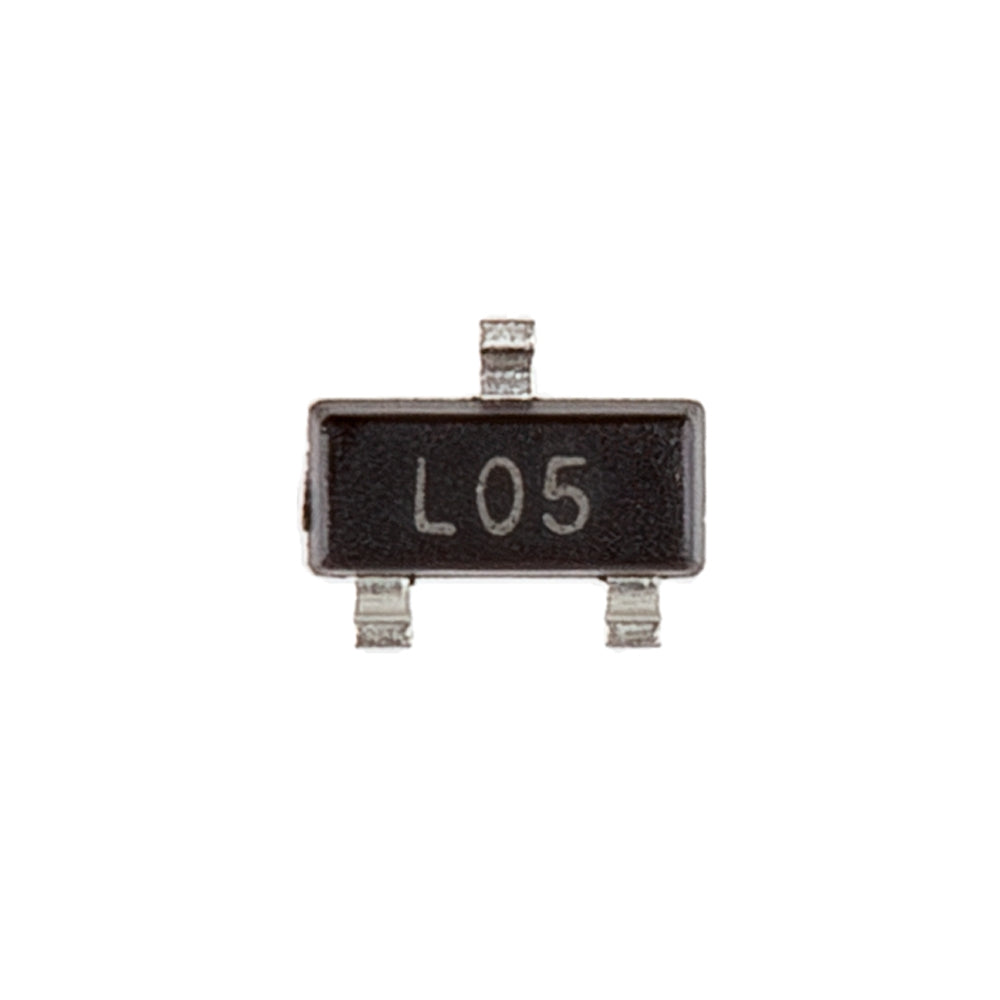

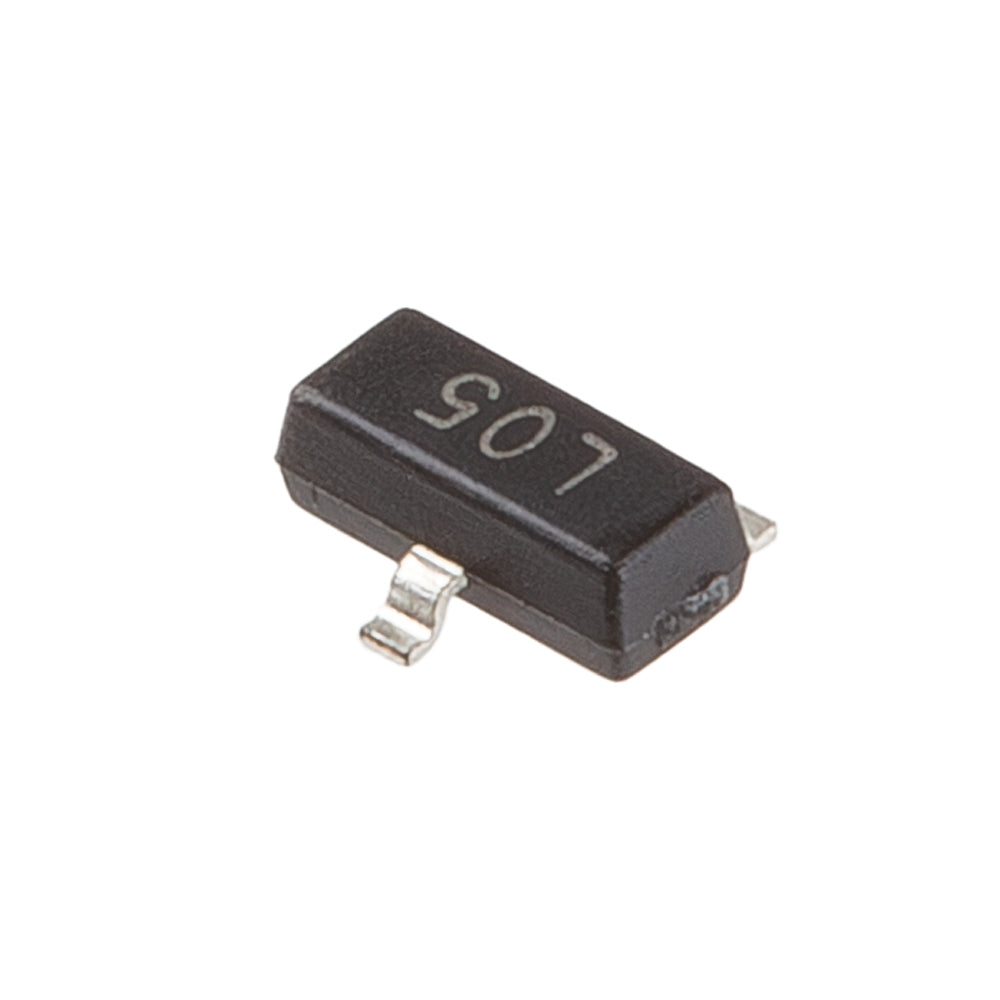

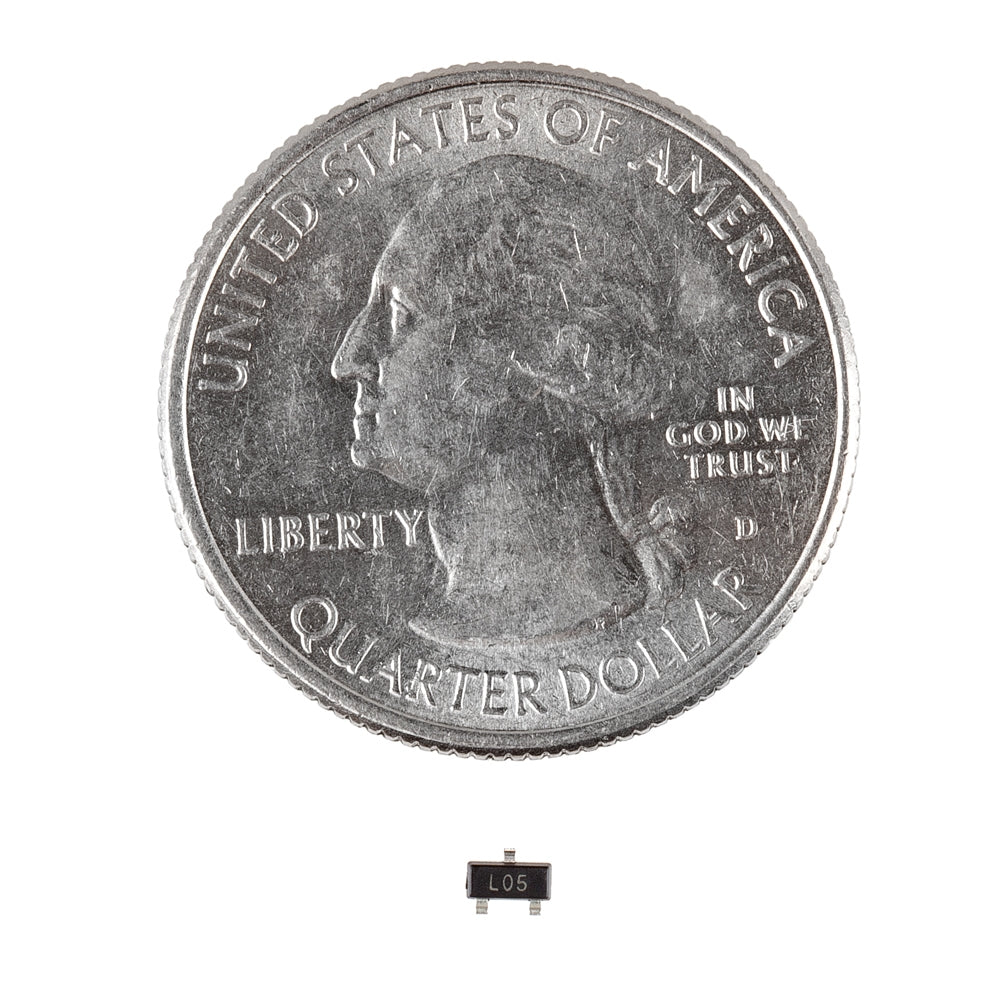

This compact Schottky diode offers users an excellent performance combination comprising high current operation, extremely low leakage, and low forward voltage.
Features & Specs
- Voltage - DC Reverse (Vr) (Max): 40V
- Current - Average Rectified (Io): 700mA
- Voltage - Forward (Vf) (Max) @ If: 530mV @ 500mA
- Speed: Fast Recovery =< 500ns, >200mA (Io)
- Reverse Recovery Time (trr): 3ns
- Current - Reverse Leakage @ Vr: 10 µA @ 30 V
- Capacitance @ Vr, F: 16pF @ 30V, 1MHz
- Mounting Type: Surface Mount
- Mfg #: ZLLS500TA
Features & Specs
- Voltage - DC Reverse (Vr) (Max): 40V
- Current - Average Rectified (Io): 700mA
- Voltage - Forward (Vf) (Max) @ If: 530mV @ 500mA
- Speed: Fast Recovery =< 500ns, >200mA (Io)
- Reverse Recovery Time (trr): 3ns
- Current - Reverse Leakage @ Vr: 10 µA @ 30 V
- Capacitance @ Vr, F: 16pF @ 30V, 1MHz
- Mounting Type: Surface Mount
- Mfg #: ZLLS500TA
Documentation
