Schoeps Decca Tree Set 2S

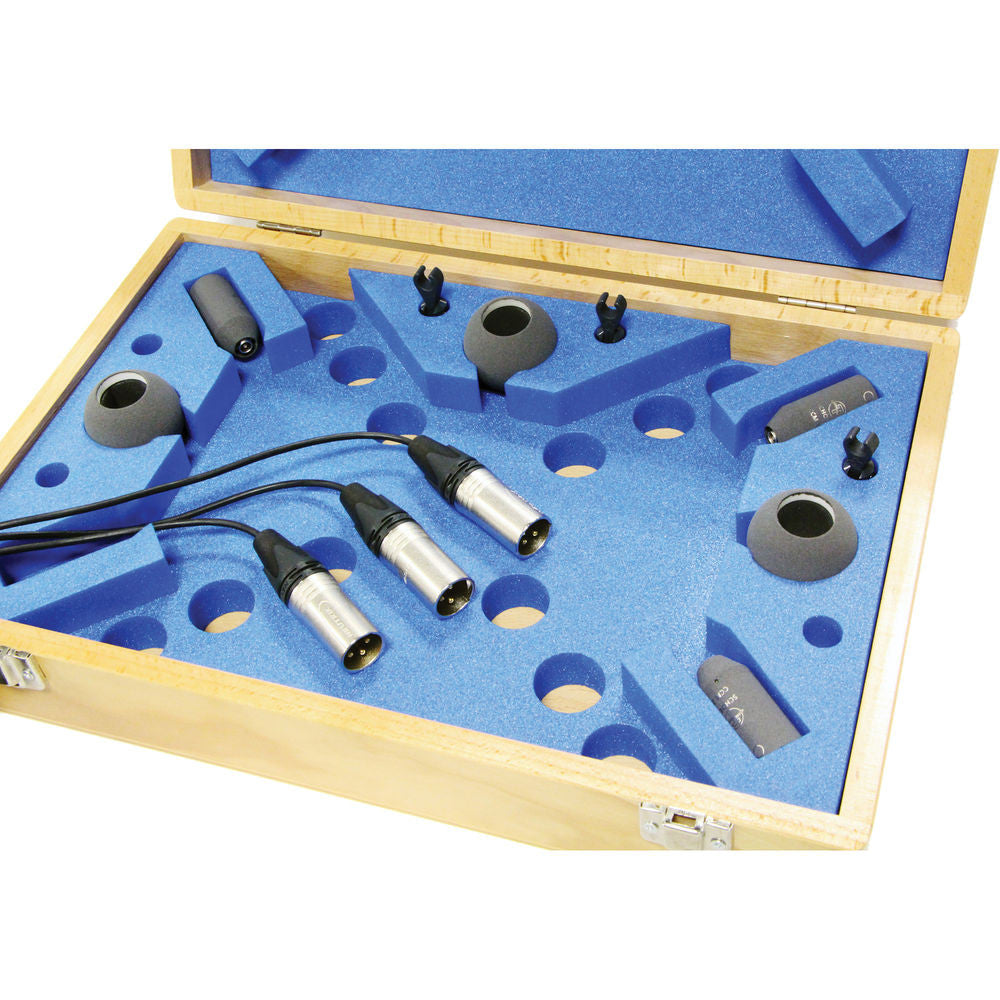

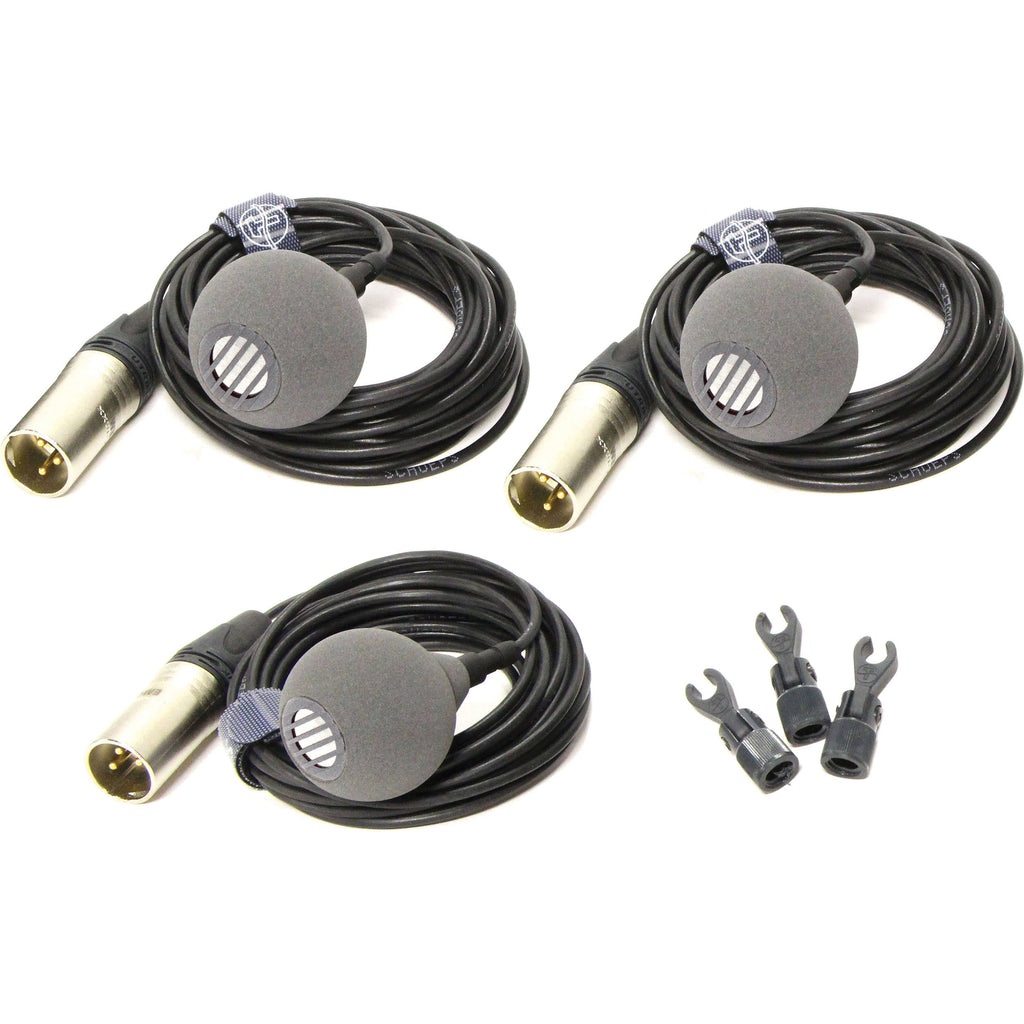

The Decca Tree Set 2S from Schoeps has all the components you need to set up a Decca Tree array. The set consists of three matched CCM 2S Lg Compact Microphones, three KA 40 Sphere Attachments, and a common wooden box for storage.

The CCM 2S Lg is a small, light-weight microphone featuring an omnidirectional pattern. This microphone is particularly useful in two- and three-microphone stereo arrays, where its placement near the reverberation radius of the sound field presents a sonically balanced pickup. It exhibits a slight high-frequency emphasis for frontal sound incidence, with only a slight roll-off of high frequencies off-axis and in the reverberant sound field.

The 40mm diameter KA 40 Sphere Attachment, when used with the CCM 2S Lg omnidirectional microphone, creates the illusion of closer placement so that greater miking distances can be used while maintaining good focus in the sound. This in turn improves the blend and balance when recording orchestras or choruses.

• CCM 2S Omni-Directional Compact Microphone with LEMO Disconnect

  The SCHOEPS CCM 2S Omni-Directional Compact Microphone with LEMO Disconnect has an omni-directional pattern. It is a miniature true classic condenser microphone (no electret used). The capsule and amplifier form an inseparable unit in a single housing. The microphone includes a K5 LU 16� Detachable LEMO to XLR-3M Adapter Cable with 3mm diameter, SGC Stand, and wood box.

  It has a slight high frequency emphasis for universal use. It is used for essentially suitable pickup of low-frequency information and room sound. If directivity is not required (e.g., close miking), the omni CCM 2S + windscreen W 5 or W 5 D will offer low sensitivity to wind, popping, and handling noise for outdoor recording. It is an all-purpose capsule for music and speech and also for use at moderate distance (at or near the reverberation radius).

  The MK 2S Microphone Capsule exhibits a slight high-frequency emphasis for frontal sound incidence, with only a slight roll-off of high frequencies off-axis and in the reverberant sound field. The frequency response characteristic of the CCM 2S falls between that of the CCM 2 and the CCM 3 Micrphone, making this microphone suitable for a wide range of applications.

  The CCM 2S is particularly useful in 2- and 3-microphone stereo arrays, where its placement near the reverberation radius of the sound field presents a sonically balanced pickup favored by many recording engineers. It has become a popular pressure transducer.

  The included K 5 LU Cable is an adapter cable from the LEMO output connector of the CCM _L Compact Condenser Microphones to XLR-3M.

  The included Miniature Stand Mount with Swivel SGC is adjustable from 0� through 100� in either direction. The internal thread of the SGC screws onto any 3/8� rod (e.g., vertical support rods STR) or stand adapter. The SGC is an integral part of the HC miniature cable hanger and the TCg table stand.

  Note: For spaced microphone (A/B) stereo recording and especially the Decca Tree method, KA 40 accessory spheres are recommended.

  True condensers do not require electronic frequency response correction

  Balanced, low-impedance output via removable 16.4' (5m) cable; LEMO to XLR-3M connector

  For universal use

  Small and light

  LEMO disconnect allows for use of special accessories

  Boasts flat frequency response

  Sound is extensively independent of directional pattern

  Has low noise and distortion

  Runs on both 48 and 12V phantom

  Can be used with very long cables over 328' (100m)

  Matte gray non-reflective surface finish

  Omni-directional pattern

  Slight high-frequency rise to compensate for losses at moderate recording distances

  For a very wide range of recording applications

  Often preferred for spaced microphone stereo pickup and Decca Tree arrangements

  Applications: Orchestra in stereo and surround

  Can be used for use with general instrument including organs

• KA 40 Sphere Attachments (40mm)

  The 40mm KA 40 Sphere Attachments from Schoeps is designed for use with omnidirectional microphones. It can be used when capturing audio in various environments such as recording studios, live sound and more. It creates the illusion of closer microphone placement so that greater miking distances can be achieved.

  The KA 40 is designed to capture more detail especially for orchestras or choruses. The effect is partly due to an increase in directivity, but mainly to the increased midrange response. The low-frequency response remains undiminished. Sold as a single unit.

  Sphere attachment for omnidirectional microphone

  This sphere attachment is ideally suited for the Decca Tree

• K 5 LU Cable for CCM Microphones

• SGC Swivel Miniature Stand Mount

• Wood Box

• Limited 2-Year Warranty

• Limited 2-Year Warranty on Parts and Labor

Also Includes

• Wooden Storage Box
• Limited 2-Year Warranty on Parts & Labor
