Description
Schoeps CMC 6U-MK22 Overview
- 1Description
- 2Schoeps CMC6-U 12-48 Volt Phantom Power Supply and Output Stage for Colette Modular Capsules
- 3Schoeps MK22 Open Cardioid Capsule for the CCM 22 Compact Microphone
- 4Schoeps Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray)
- 5Schoeps SG20 Microphone Stand Clamp

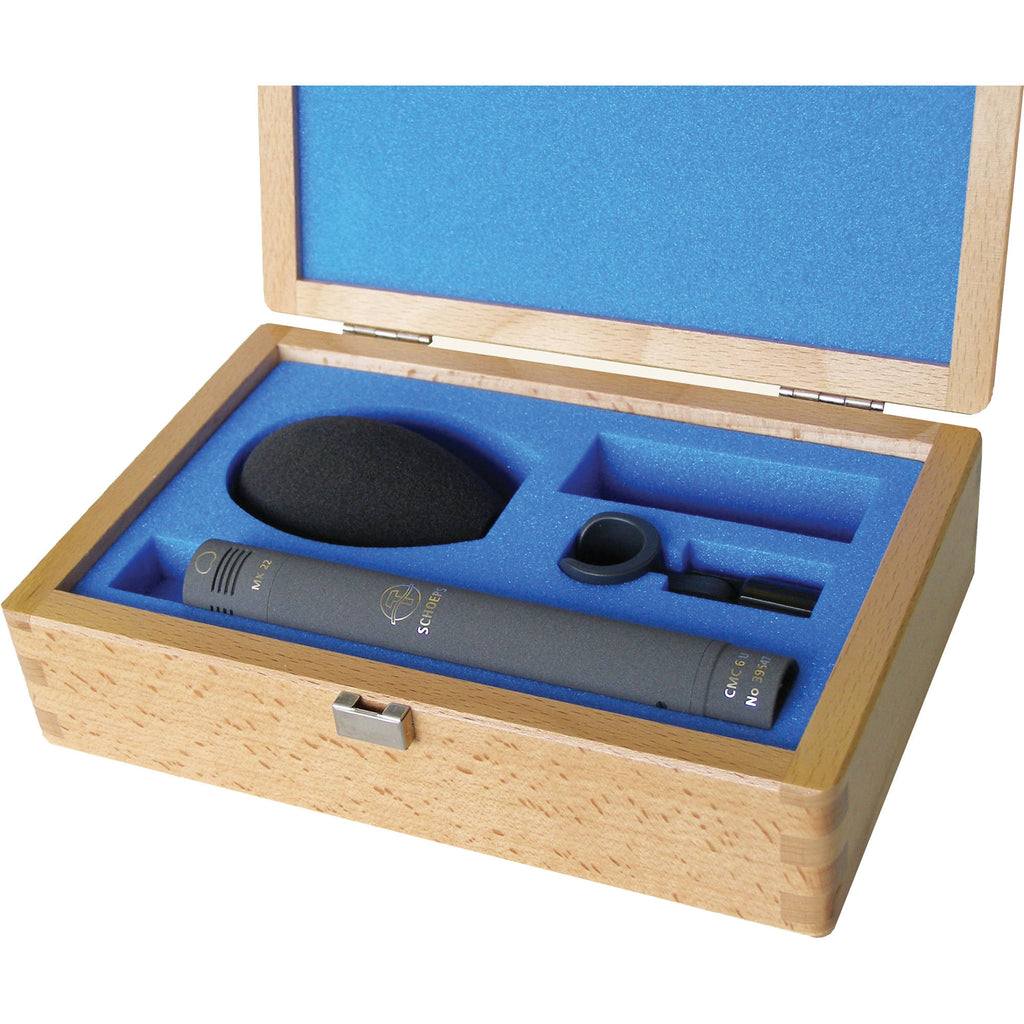

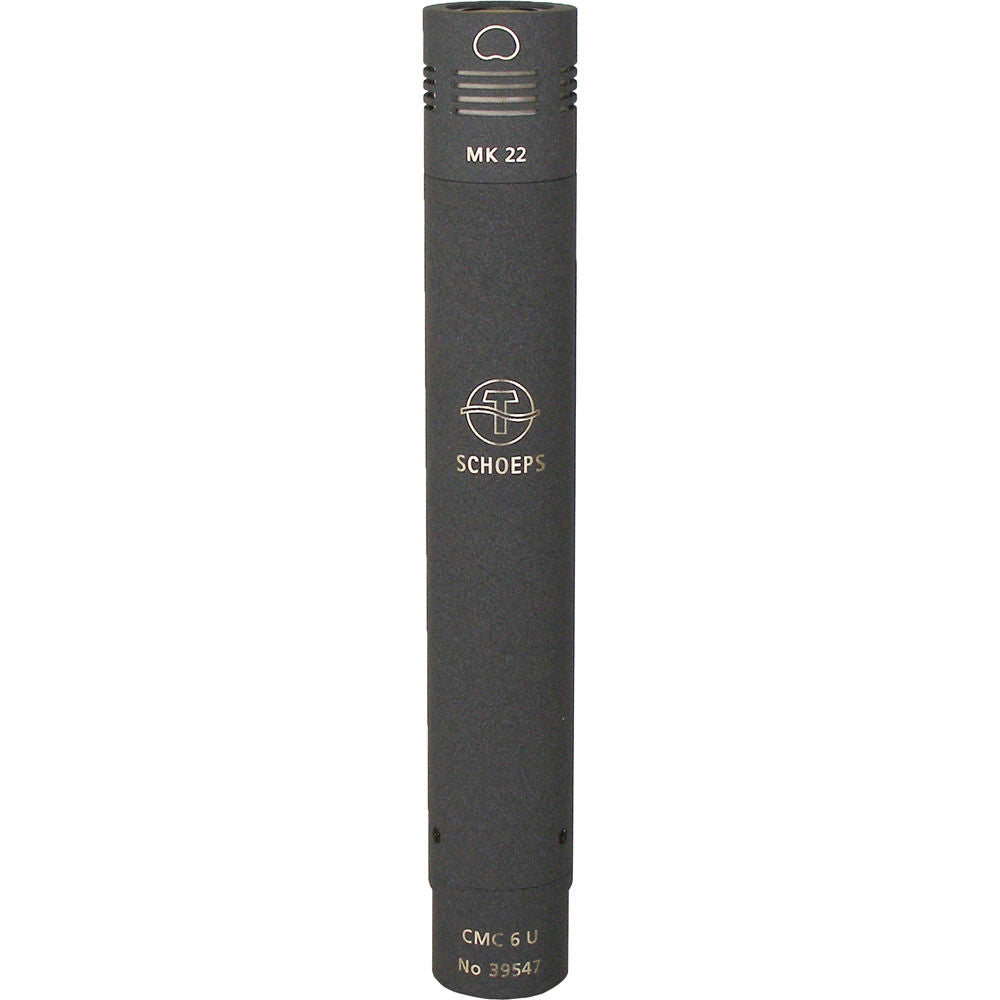

The matte gray Colette CMC 6U Microphone Amplifier & MK 22 Open Cardioid Capsule from Schoeps includes the CMC 6U Analog Microphone Amplifier, MK 22 Open Cardioid Capsule, SG 20 Microphone Stand Adapter, B 5 Solid Foam Popscreen, and a wooden storage case.
The CMC 6U Analog Microphone Amplifier is designed for standard 48 and 12V phantom powering. Its circuitry recognizes the supply voltage and adjusts itself automatically. Its performance characteristics remain essentially the same either way. The main difference is that the current drawn at 12V is greater than that drawn at 48V. However, the 12V mode consumes less power and might be preferred for battery-powered recording.
The microphone amplifier provides electrostatic charge, which the capsule requires in order to produce a signal. Since only a miniscule amount of current is contained in this signal, amplification of the current is required. To avoid interference with the signal on the way from the microphone to the input of the mixer or preamp, the signal is conveyed at low impedance and in a balanced form. The CMC 6U Amplifier offers a symmetrical, transformerless, direct-coupled Class A output stage with low impedance, distortion, and interference.
The MK 22 Open Cardioid Microphone Capsule provides an optimal combination of the classic directionality of the cardioid capsule and the sonic character of the wide cardioid capsule. The response is -5 dB at 90° and there is 16 dB suppression of rear-incident sound. It is in essence a variant cardioid capsule that balances natural sound quality and a good degree of directionality.
The MK 22 Microphone has been developed for use as a spot microphone. Its directivity is essentially constant throughout the frequency range. Its inherent low-frequency response is more pronounced than that of the cardioid capsule, while its proximity effect is somewhat less pronounced. It is well suited for use as a stereo pair.
The SG 20 Stand Clamp can support a microphone with a diameter of up to 0.8" (21mm). The base of this mount has a 5/8"-27 NS internal thread. A threaded adapter is supplied for 3/8" and 1/2" mounting. The angle of the adapter can be changed continuously in the vertical plane.
The B 5 Solid Foam Popscreen provides sufficient protection at normal speaking distances with minimal effect on sound quality for cardioid and other directional capsules, especially when speech capsules are used. With omni-directional capsules, it may even be used outdoors in light wind.
Schoeps CMC6-U 12-48 Volt Phantom Power Supply and Output Stage for Colette Modular Capsules
The Schoeps CMC6-U is a balanced output stage and +12 to +48V phantom power supply for the Schoeps Colette series modular capsules. The transformer-less output stage ensures low-noise and pristine audio reproduction throughout. The CMC6-U is terminated with a standard balanced 3-pin XLR connection for use with standard microphone inputs and preamplifiers.
Schoeps MK22 Open Cardioid Capsule for the CCM 22 Compact Microphone
The Schoeps MK22 is part of the Colette series of modular capsules designed for use with the CMC preamplifiers. The MK22 combines the cardioid polar pattern of the MK4 with the sonic characteristics of the MK21. The result is a microphone ideal for spot capturing with a polar pattern that effectively reduces ambient noise and feedback. The MK22 has a perfect combination of reference microphone and instrument microphone characteristics for crucial capturing in recording and live audio applications.
Open Cardioid Pick Up
High Frequency Shelf
Wide Linear Frequency Response
Schoeps Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray)
This gray Solid Foam Teardrop Popscreen from Schoeps is an acoustic foam close-speech popscreen intended for use with Schoeps Colette Series microphones, but compatible with other microphone capsules as well. It provides sufficient protection at normal speaking distances for cardioids and other directional capsules, especially when speech capsules are used. With omnidirectional capsules, it may even be used outdoors in light wind. This popscreen has minimal effect on sound quality.
Schoeps SG20 Microphone Stand Clamp
The Schoeps SG20 Microphone Stand Adapter is designed to stand mount microphones measuring 20mm or 21mm in diameter. The SG20 features a strong metal housing and a durable plastic clamp. Its base is threaded for 5/8"-27 stands, and a threaded adapter is included to accommodate 3/8" and 1/2" mounting. The angle is continuously variable.
In the Box
- Schoeps CMC6-U 12-48 Volt Phantom Power Supply and Output Stage for Colette Modular Capsules
- SG20 Stand Adaptor
- Polished Wood Case
- Limited 2-Year Warranty
- Schoeps MK22 Open Cardioid Capsule for the CCM 22 Compact Microphone
- 2 Year Warranty
- Schoeps Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray)
- Limited 2-Year Warranty
- Schoeps SG20 Microphone Stand Clamp
- Threaded Adapter for 3/8" and 1/2" Mounting
- Limited 1-Year Warranty
- Wooden Storage Case
- Limited 2-Year Warranty
- Description
- Schoeps CMC6-U 12-48 Volt Phantom Power Supply and Output Stage for Colette Modular Capsules
- Schoeps MK22 Open Cardioid Capsule for the CCM 22 Compact Microphone
- Schoeps Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray)
- Schoeps SG20 Microphone Stand Clamp
Schoeps CMC6-U 12-48 Volt Phantom Power Supply and Output Stage for Colette Modular Capsules Specs
| Package Weight | 0.8 lb |
| Box Dimensions (LxWxH) | 7.6 x 4.45 x 1.7" |
Schoeps MK22 Open Cardioid Capsule for the CCM 22 Compact Microphone Specs
| Transducer | Condenser |
| Polar Pattern | Open Cardioid (MK22) |
| Frequency Response | 20Hz to 20KHz |
| Dynamic Range (Typical) | Not Specified by Manufacturer |
| Signal-to-Noise Ratio | 78dB-A (MK21H) |
| Maximum Input Sound Level | 130dB |
| Power Requirements | 12 - 48V Phantom Power (CMC6) |
| Output Impedance | Minimum Load: 600 Ohms (CMC6) (If a lower load impedance is used, the main effect will be to reduce the maximum output level of the microphone.) |
| Output Connectors | 3-pin XLR (CMC6) |
| Pad | No |
| Low Frequency Roll-Off | No |
| Dimensions | 4.57 x .78" (116 x 20mm) (Length x Diameter) (with CMC6) |
| Weight | 2.4 oz (68g) (with CMC6) |
Schoeps Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray) Specs
| Maximum Noise Attenuation | 20 dBA in 11 mph / 18 km/h Wind |
| Material | Foam |
| Outer Diameter | 1.77" / 45 mm |
| Length | 2.75" / 70 mm |
| Package Weight | 0.02 lb |
| Box Dimensions (LxWxH) | 6.4 x 3.05 x 1.9" |
Schoeps SG20 Microphone Stand Clamp Specs
| Threading | 5/8"-27 |
| Construction Material | Housing: Metal Clamp: Plastic |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 2 x 1 x 0.5" |
Schoeps CMC 6U-MK22 Reviews
