Description
Schoeps STEREO SET 1L8 Overview
- 1Description
- 2Schoeps CMC 1 U Miniature Colette Microphone Amplifier (Matte Gray)
- 3Schoeps MK 8 Microphone Capsule (Matched Pair, Matte Gray)
- 4Schoeps B-5D Hollow Foam Windscreen for Light Wind Noise and as a close-speech guard (Gray)
- 5Schoeps K 5 LU Lemo Male to 3-Pin XLR Male Adapter Cable for CCM-L Microphones (16.4')
- 6Schoeps SGC Swivel Miniature Stand Mount

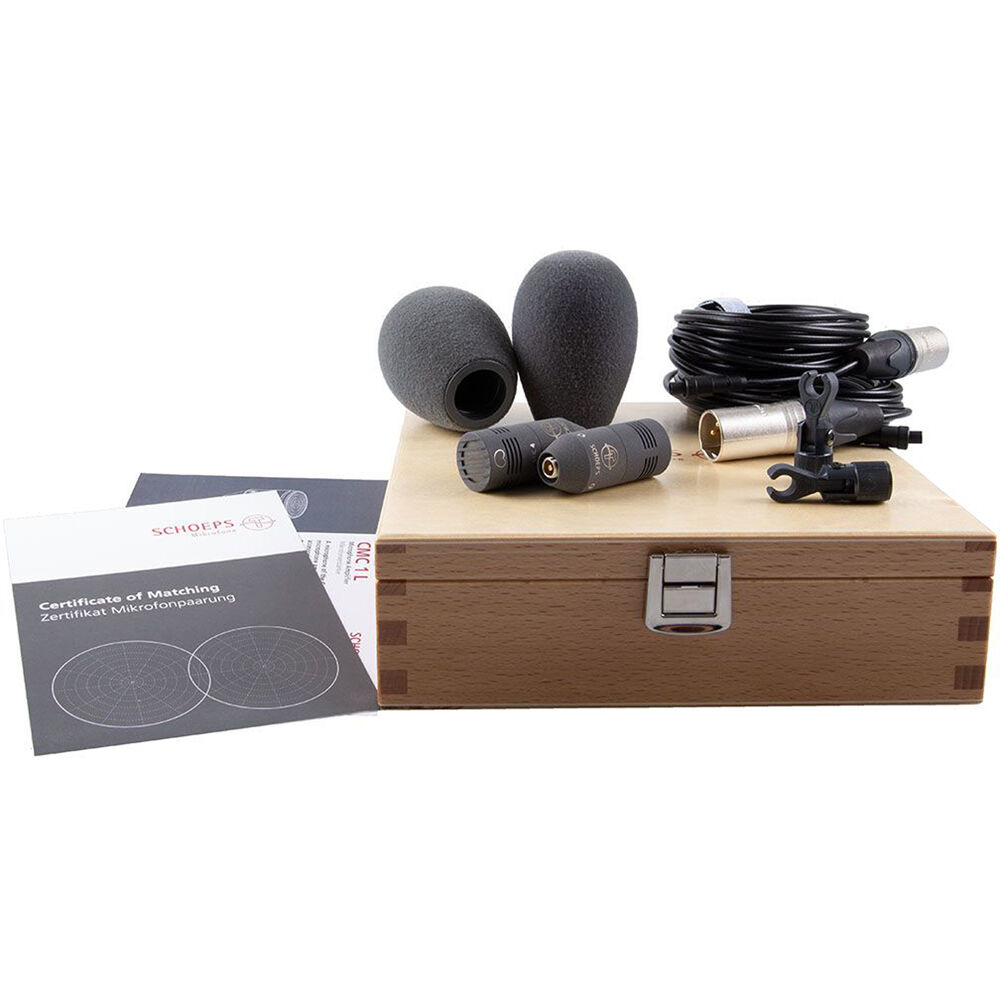

Popular among professional audio engineers, the matte gray Schoeps Colette CMC 1 L Microphone Amplifiers and MK 8 Figure-8 Capsules Stereo Set is a Colette-Series modular microphone bundle that includes two CMC 1 L (mini-LEMO output) miniature microphone amplifiers, a matched pair of MK8 figure-8 mic capsules, two SGC miniature stand mounts with swivel, two mini-LEMO to XLR microphone cables, two B 5 D solid-foam popscreens, and a premium case for secure transport and storage.
The MK 8 capsule is often used for M/S and double M/S stereo sound in film and music recording�in combination with Colette or CCM microphones and/or a CMIT shotgun microphone. The figure-eight pattern of the MK 8 remains constant from low to high frequencies. The pickup direction is lateral, i.e. perpendicular to the microphone housing. The 0 and 180° axes are indicated respectively by red and black dots on the capsule housing.
The matte gray Schoeps CMC 1 U is a miniature Colette Series microphone amplifier offering uncompromising high fidelity in a lightweight and ultracompact form factor for studio recording, broadcast, and live stage applications. Presented as an alternative to the renowned Schoeps CMC 6 amplifier, the CMC 1 U is compatible with all existing MK mic capsules and Colette active accessories (all available separately).
It features a balanced XLR output, compliance with 12 or 48V phantom power, and low current consumption. Its Schoeps RFI Shield provides high immunity from RF interference for a clean, low-noise signal. The CMC 1 U supports the high maximum SPLs tolerated by the various MK mic capsules (available separately).
- Complete alternative to the renowned CMC 6 amplifier
- Can be used in place of the CMC 6 with no compromise
- XLR output connector
- Electrical characteristics of the CMC 1 U are equal to, or even better than, those of the CMC 6
- 1.4" long (about a third the size of the CMC 6)
- 1.3 ounces (about 40% lighter than the CMC 6)
- Fully compatible with all existing MK capsules and Colette active accessories such as the CUT 60 and RC tubes
- Very high immunity from RF interference with the Schoeps RFI Shield
- Includes mic clip for easy attachment to a mic stand
- Suspension mounts such as the Rycote INV-6 are available separately
The matte gray MK 8 Microphone Capsule from Schoeps is a true dipole (bidirectional) transducer, operating with a single diaphragm. Its main axis is at a right angle to the capsule, and is marked at 0 and 180° with a red and a black dot, respectively. Both the microphones that are included are phase-matched.
When M/S stereo recordings are made, the 0° axis normally faces to the left as viewed from behind the microphone setup. The 8 engraved on the top of the housing should be aligned on its side so as to appear horizontal, at a precise right angle to the mid capsule. The microphone should be placed directly above or beneath the M channel microphone, and as close to it as possible. The sound quality of this capsule is clear and neutral. The frequency response rolls off above 16 kHz.
When this capsule is used as a spot microphone, care must be taken to avoid picking up early reflections or unwanted direct sound from its rear, since sound arriving from the back is picked up with full level but reversed in polarity. This could result in partial cancellation of the intended sound, which can lead to comb-filter effects at higher frequencies.
The directivity index of a figure-8 pattern is the same as that of a cardioid. The figure-8 has a rear lobe equal in sensitivity to its front lobe, and this exactly makes up the quantitative difference. However, in normally reverberant settings, the sound reaching a figure-8's rear lobe will be delayed and dispersed to a considerably greater extent; the reflected sound will typically be subject to far more high-frequency absorption as well.
Schoeps Microphones has created the B-5D Windscreen in grey is best when used on pressure-gradient transducers in light wind and as a close-speech guard. The foam encloses an air chamber around the microphone capsule, similar to a basket windscreen.
Although not designed for it, it works hand in hand with the MK 4V, MK 41V or MK 4VXS microphone capsules and the corresponding CCM Compact Condenser Microphones. But this microphone cannot be used with MK 6 or MK 8 capsules, or the corresponding CCM Compact Microphones.
The Schoeps K 5 LU Adapter Cable is a cable designed to be used with a CCM-L microphone. It connects the Lemo output of the mic to a 3-pin XLR male termination, allowing you to use the mic with conventional preamps. This cable measures 16.4' long.
The Schoeps SGC Swivel Miniature Stand Mount swivels 100° in either direction for optimum mic placement.
In the Box
- 2 x Schoeps CMC 1 U Miniature Colette Microphone Amplifier (Matte Gray)
- Schoeps SG20 Microphone Stand Clamp
- Limited 2-Year Manufacturer Warranty
- Schoeps MK 8 Microphone Capsule (Matched Pair, Matte Gray)
- Limited 2-Year Manufacturer Warranty
- 2 x Schoeps B-5D Hollow Foam Windscreen for Light Wind Noise and as a close-speech guard (Gray)
- Product Instructions
- 2 x Schoeps K 5 LU Lemo Male to 3-Pin XLR Male Adapter Cable for CCM-L Microphones (16.4')
- Limited 2-Year Manufacturer Warranty
- 2 x Schoeps SGC Swivel Miniature Stand Mount
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential XLR Cables (Not Included)
- Description
- Schoeps CMC 1 U Miniature Colette Microphone Amplifier (Matte Gray)
- Schoeps MK 8 Microphone Capsule (Matched Pair, Matte Gray)
- Schoeps B-5D Hollow Foam Windscreen for Light Wind Noise and as a close-speech guard (Gray)
- Schoeps K 5 LU Lemo Male to 3-Pin XLR Male Adapter Cable for CCM-L Microphones (16.4')
- Schoeps SGC Swivel Miniature Stand Mount
Schoeps CMC 1 U Miniature Colette Microphone Amplifier (Matte Gray) Specs
Frequency Range |
20 Hz to 20 kHz
|
Maximum Output Voltage |
1.8 V / 5 dBV with 1-Kilohm Load
|
Maximum SPL for 0.5% THD |
P48 with MK 4 Capsule: 135 dB SPL
P12 with MK 4 Capsule: 131 dB SPL |
Impedance |
50 Ohms (±1 Ohm, 8 Hz to 50 kHz)
|
Minimum Load Impedance |
1 Kilohm
|
Sensitivity |
Capsule-Dependent Sensitivity
|
Low-Cut Filter |
12 dB/Octave at 20 Hz
|
Common Mode Rejection Ratio |
>55 dB at 1 kHz
|
Maximum Cable Length |
Up to 1312' / 400 m
|
Output Connector |
1 x 3-Pin XLR Male
|
Operating Current Consumption |
P48: 2 mA
P12: 3 mA |
Operating Voltage |
P48: 30 to 52 VDC
P12: 11 to 13 VDC |
Length |
1.4" / 36 mm
|
Diameter |
0.8" / 20 mm
|
Weight |
1.3 oz / 36 g
|
Package Weight |
0.72 lb
|
Box Dimensions (LxWxH) |
7.4 x 4.3 x 1.3"
|
Schoeps MK 8 Microphone Capsule (Matched Pair, Matte Gray) Specs
Frequency Range |
40 Hz to 16 kHz
|
Sensitivity |
10 mV/Pa
|
Equivalent Noise Level |
18 dB-A (A-weighted)
26 dB (CCIR) |
Signal-to-Noise Ratio |
76 dB-A (A-weighted)
|
Maximum Sound Pressure Level (SPL) |
134 dB-SPL at 0.5% THD
|
Dimensions |
0.79 x 1.35" (20.00 x 34.00 mm)
|
Weight |
0.63 oz (18.00 g)
|
Package Weight |
0.1 lb
|
Box Dimensions (LxWxH) |
7 x 4.9 x 2.1"
|
Schoeps B-5D Hollow Foam Windscreen for Light Wind Noise and as a close-speech guard (Gray) Specs
Material |
Foam
|
Outer Diameter |
2" / 50 mm
|
Length |
2.75" / 70 mm
|
Package Weight |
0.04 lb
|
Box Dimensions (LxWxH) |
3.05 x 2.1 x 2"
|
Schoeps K 5 LU Lemo Male to 3-Pin XLR Male Adapter Cable for CCM-L Microphones (16.4') Specs
Connector 1 |
1x XLR 3-Pin Male
|
Connector 2 |
1x LEMO 3-Pin Male
|
Cable Length |
16.4' / 5 m
|
Package Weight |
0.25 lb
|
Box Dimensions (LxWxH) |
4.095 x 3.228 x 0.472"
|
Schoeps SGC Swivel Miniature Stand Mount Specs
Adjustments |
100°
|
Mount Thread |
3/8"
|
Package Weight |
0.02 lb
|
Box Dimensions (LxWxH) |
4 x 2 x 0.5"
|
