Description
Schoeps STEREO SET 1L5 Overview
- 1Description
- 2Schoeps CMC 1 L Miniature Colette Microphone Amplifier with Mini LEMO Output (Matte Gray)
- 3Schoeps MK 5 Microphone Capsule (Matched Pair, Matte Gray)
- 4Schoeps B-5D Hollow Foam Windscreen for Light Wind Noise and as a close-speech guard (Gray)

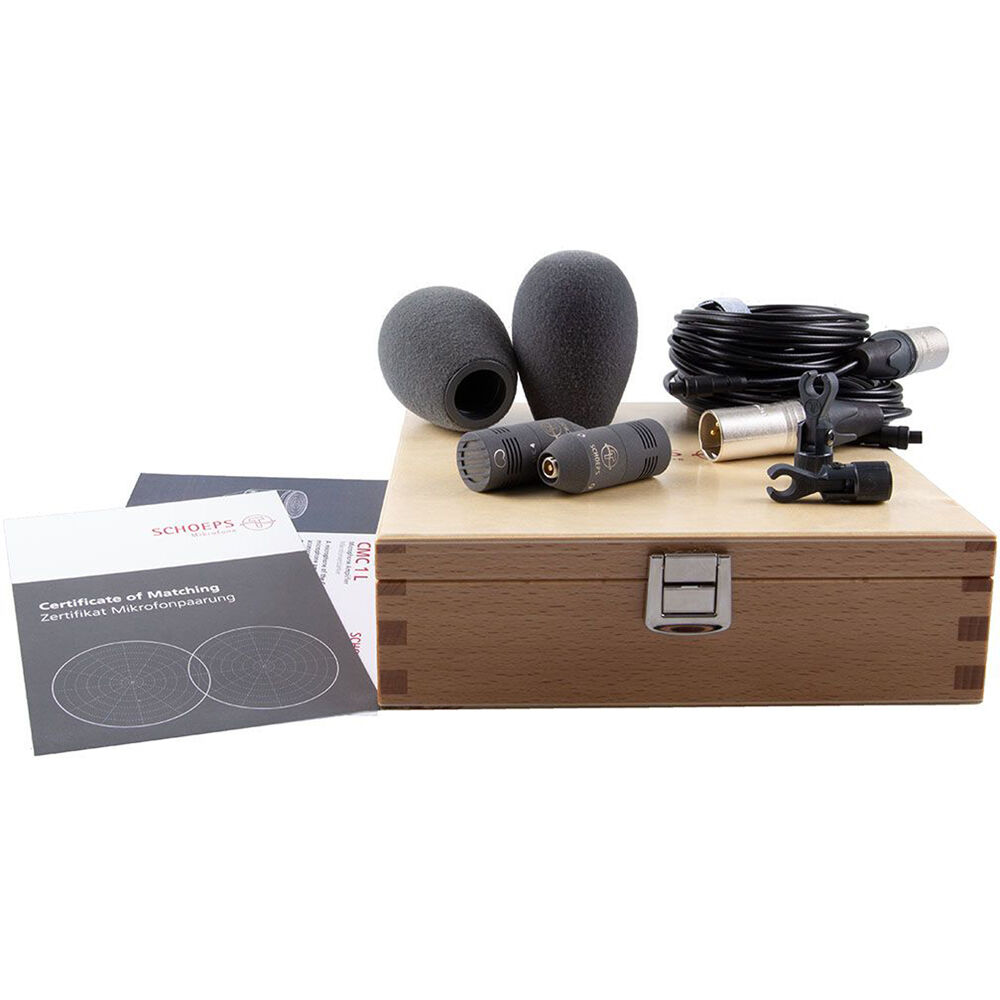

Popular among professional audio engineers, the matte gray Schoeps Colette CMC 1 L Microphone Amplifiers and MK 5 Omni/Cardioid Capsules Stereo Set is an ultracompact, space-saving Colette Series modular microphone bundle that includes two CMC 1 L (mini LEMO output) miniature microphone amplifiers, a matched pair of MK 5 switchable, omnidirectional/cardioid mic capsules, two K 5 LU LEMO to XLR 3-pin male cables, two SGC miniature stand mounts with swivels, two B 5 D solid-foam popscreens, and a premium case for secure transport and storage.
Nearly an all-purpose capsule recommended for those starting out with the Colette Series, the MK 5 is a true, one-diaphragm system with mechanical switching between omnidirectional and cardioid patterns. The result in each setting is like an independent microphone capsule with the same quality as the MK 2S / MK 4, and very similar (though not identical) frequency- and polar-response characteristics.
Thanks to the inclusion of the ultracompact CMC 1 L amplifier, this bundle serves as a lighter and smaller alternative to the acclaimed CMC 6 amplifier without compromising sonic performance.
The matte gray Schoeps CMC 1 L is a miniature Colette Series microphone amplifier offering uncompromising high fidelity in a lightweight and ultracompact form factor for studio recording, broadcast, and live stage applications. Presented as an alternative to the renowned Schoeps CMC 6 amplifier, the CMC 1 L is compatible with all existing MK mic capsules and Colette active accessories (all available separately).
It features a balanced mini LEMO output, compliance with 12V or 48V phantom power, and low current consumption. Its Schoeps RFI Shield provides high immunity from RF interference for a clean, low-noise signal. The CMC 1 L supports the high maximum SPLs tolerated by the various MK mic capsules (available separately). A stand adapter and a 16.4' mini LEMO to XLR 3-pin male adapter cable are supplied with the CMC 1 L.
The matte gray MK 5 Microphone Capsule from Schoeps comes as a matched pair, and offers 2 selectable directional patterns, but uses only a single membrane, a no-compromise approach. The fact that full response is maintained to the high audible frequencies is unusual for a switchable-pattern microphone.
In its omnidirectional setting, this MK 5 Microphone Capsule is a true pressure transducer with smooth, extended low-frequency response, low sensitivity to most wind and breath noise, handling noise or mechanical vibration, and no proximity effect. This capsule has a cardioid setting that retains its full directionality even at very low frequencies. The benefits of this design are in its purity and clarity of sound which is immediately audible. This capsule has a slight high-frequency emphasis.
The MK 5 Microphone Capsule is nearly an all-purpose capsule. It is recommended for those starting out with the Colette series.
The pattern selector should be definitely set to one position or the other; in-between settings will yield undefined results.
Schoeps Microphones has created the B-5D Windscreen in grey is best when used on pressure-gradient transducers in light wind and as a close-speech guard. The foam encloses an air chamber around the microphone capsule, similar to a basket windscreen.
Although not designed for it, it works hand in hand with the MK 4V, MK 41V or MK 4VXS microphone capsules and the corresponding CCM Compact Condenser Microphones. But this microphone cannot be used with MK 6 or MK 8 capsules, or the corresponding CCM Compact Microphones.
In the Box
- 2 x Schoeps CMC 1 L Miniature Colette Microphone Amplifier with Mini LEMO Output (Matte Gray)
- Schoeps SGC Swivel Miniature Stand Mount
- Schoeps K 5 LU Lemo Male to 3-Pin XLR Male Adapter Cable for CCM-L Microphones (16.4')
- Limited 2-Year Warranty
- Schoeps MK 5 Microphone Capsule (Matched Pair, Matte Gray)
- Limited 2-Year Manufacturer Warranty
- 2 x Schoeps B-5D Hollow Foam Windscreen for Light Wind Noise and as a close-speech guard (Gray)
- Product Instructions
Not in the Box
- Essential XLR Cables (Not Included)
- Description
- Schoeps CMC 1 L Miniature Colette Microphone Amplifier with Mini LEMO Output (Matte Gray)
- Schoeps MK 5 Microphone Capsule (Matched Pair, Matte Gray)
- Schoeps B-5D Hollow Foam Windscreen for Light Wind Noise and as a close-speech guard (Gray)
Schoeps CMC 1 L Miniature Colette Microphone Amplifier with Mini LEMO Output (Matte Gray) Specs
| Frequency Range |
20 Hz to 20 kHz
|
| Maximum Output Voltage |
1.8 V / 5 dBV with 1-Kilohm Load
|
| Maximum SPL for 0.5% THD |
P48 with MK 4 Capsule: 135 dB SPL
P12 with MK 4 Capsule: 131 dB SPL |
| Impedance |
50 Ohms (±1 Ohm, 8 Hz to 50 kHz)
|
| Minimum Load Impedance |
1 Kilohm
|
| Sensitivity |
Capsule-Dependent Sensitivity
|
| Low-Cut Filter |
12 dB/Octave at 20 Hz
|
| Common Mode Rejection Ratio |
>55 dB at 1 kHz
|
| Maximum Cable Length |
Up to 1312' / 400 m
|
| Output Connector |
1 x Miniature LEMO Male
|
| Operating Current Consumption |
P48: 2 mA
P12: 3 mA |
| Operating Voltage |
P48: 30 to 52 VDC
P12: 11 to 13 VDC |
| Length |
1" / 25.5 mm
|
| Diameter |
0.8" / 20 mm
|
| Weight |
1 oz / 28 g
|
| Package Weight |
1.415 lb
|
| Box Dimensions (LxWxH) |
7.9 x 7.6 x 2.4"
|
Schoeps MK 5 Microphone Capsule (Matched Pair, Matte Gray) Specs
| Frequency Range |
Omni: 20 Hz to 20 kHz
Cardioid: 40 Hz to 20 kHz |
| Sensitivity |
Omni: 10 mV/Pa
Cardioid: 13 mV/Pa |
| Equivalent Noise Level |
Omni:
14 dB-A (A-weighted) 15 dB-A (A-weighted) Cardioid: 26 dB (CCIR) 24 dB (CCIR) |
| Signal-to-Noise Ratio |
Omni: 80 dB-A (A-weighted)
Cardioid: 79 dB-A (A-weighted) |
| Maximum Sound Pressure Level (SPL) |
Omni: 133 dB-SPL at 0.5% THD
Cardioid: 132 dB-SPL at 0.5% THD |
| Dimensions |
0.79 x 1.06" (20.00 x 27.00 mm)
|
| Weight |
0.88 oz (25.00 g)
|
| Package Weight |
0.4 lb
|
| Box Dimensions (LxWxH) |
6.5 x 4.6 x 1.5"
|
Schoeps B-5D Hollow Foam Windscreen for Light Wind Noise and as a close-speech guard (Gray) Specs
| Material |
Foam
|
| Outer Diameter |
2" / 50 mm
|
| Length |
2.75" / 70 mm
|
| Package Weight |
0.04 lb
|
| Box Dimensions (LxWxH) |
3.05 x 2.1 x 2"
|
