Description
Schoeps CMC1L5 SET Overview
- 1Description
- 2Schoeps CMC 1 L Miniature Colette Microphone Amplifier with Mini LEMO Output (Matte Gray)
- 3Schoeps MK 5 Microphone Capsule (Matte Gray)
- 4Schoeps Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray)

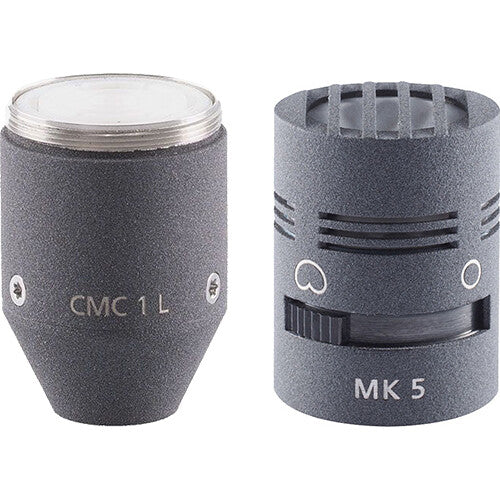

Popular as an initial Colette Series acquisition for professional audio engineers and training institutes, the matte gray Schoeps Colette CMC 1 L Microphone Amplifier and MK 5 Omni Capsule Set is an ultracompact, space-saving Colette Series modular microphone bundle that includes the CMC 1 L (mini LEMO output) miniature microphone amplifier, MK 5 switchable omnidirectional/cardioid mic capsule, K 5 LU LEMO to XLR 3-pin male cable, SGC miniature stand mount with swivel, B 5 solid-foam popscreen, and a premium case for secure transport and storage.
Nearly an all-purpose capsule recommended for those starting out with the Colette Series, the MK 5 is a true, one-diaphragm system with mechanical switching between omnidirectional and cardioid patterns. The result in each setting is like an independent microphone capsule with the same quality as the MK 2S / MK 4, and very similar (though not identical) frequency- and polar-response characteristics.
Thanks to the inclusion of the ultracompact CMC 1 L amplifier, this bundle serves as a lighter and smaller alternative to the acclaimed CMC 6 amplifier, without compromising sonic performance.

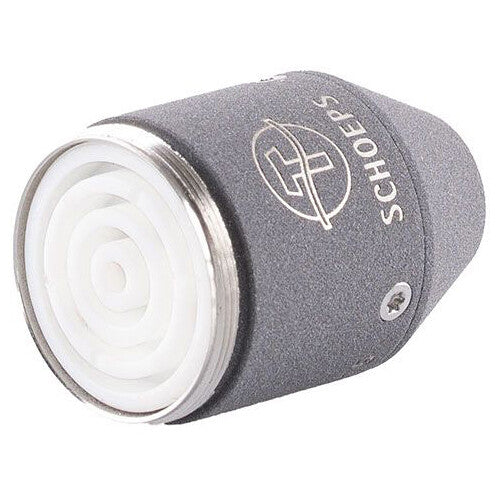

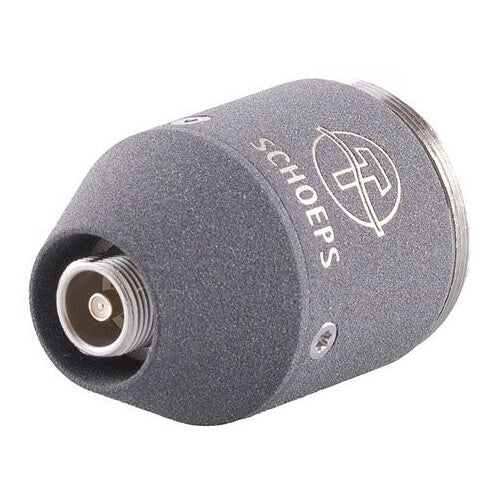

The matte gray Schoeps CMC 1 L is a miniature Colette Series microphone amplifier offering uncompromising high fidelity in a lightweight and ultracompact form factor for studio recording, broadcast, and live stage applications. Presented as an alternative to the renowned Schoeps CMC 6 amplifier, the CMC 1 L is compatible with all existing MK mic capsules and Colette active accessories (all available separately).
It features a balanced mini LEMO output, compliance with 12V or 48V phantom power, and low current consumption. Its Schoeps RFI Shield provides high immunity from RF interference for a clean, low-noise signal. The CMC 1 L supports the high maximum SPLs tolerated by the various MK mic capsules (available separately). A stand adapter and a 16.4' mini LEMO to XLR 3-pin male adapter cable are supplied with the CMC 1 L.
The matte gray MK 5 Microphone Capsule from Schoeps offers 2 selectable directional patterns, but uses only 1 membrane.
In its omnidirectional setting, the MK 5 Microphone Capsule is a true pressure transducer with smooth, extended low-frequency response, low sensitivity to most wind and breath noise, handling noise or mechanical vibration, and no proximity effect.
In its cardioid setting, the MK 5 Microphone Capsule retains its full directionality even at very low frequencies. The benefits of this design in purity and clarity of sound are immediately audible. Additionally, the MK 5 has a slight high-frequency emphasis.
This gray Solid Foam Teardrop Popscreen from Schoeps is an acoustic foam close-speech popscreen intended for use with Schoeps Colette Series microphones, but compatible with other microphone capsules as well. It provides sufficient protection at normal speaking distances for cardioids and other directional capsules, especially when speech capsules are used. With omnidirectional capsules, it may even be used outdoors in light wind. This popscreen has minimal effect on sound quality.
In the Box
- Schoeps CMC 1 L Miniature Colette Microphone Amplifier with Mini LEMO Output (Matte Gray)
- Schoeps SGC Swivel Miniature Stand Mount
- Schoeps K 5 LU Lemo Male to 3-Pin XLR Male Adapter Cable for CCM-L Microphones (16.4')
- Limited 2-Year Warranty
- Schoeps MK 5 Microphone Capsule (Matte Gray)
- Limited 2-Year Warranty on Parts & Labor
- Schoeps Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray)
- Limited 2-Year Manufacturer Warranty
- Premium Case
Not in the Box
- Essential XLR Cables (Not Included)
- Description
- Schoeps CMC 1 L Miniature Colette Microphone Amplifier with Mini LEMO Output (Matte Gray)
- Schoeps MK 5 Microphone Capsule (Matte Gray)
- Schoeps Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray)
Schoeps CMC 1 L Miniature Colette Microphone Amplifier with Mini LEMO Output (Matte Gray) Specs
Frequency Range |
20 Hz to 20 kHz
|
Maximum Output Voltage |
1.8 V / 5 dBV with 1-Kilohm Load
|
Maximum SPL for 0.5% THD |
P48 with MK 4 Capsule: 135 dB SPL
P12 with MK 4 Capsule: 131 dB SPL |
Impedance |
50 Ohms (±1 Ohm, 8 Hz to 50 kHz)
|
Minimum Load Impedance |
1 Kilohm
|
Sensitivity |
Capsule-Dependent Sensitivity
|
Low-Cut Filter |
12 dB/Octave at 20 Hz
|
Common Mode Rejection Ratio |
>55 dB at 1 kHz
|
Maximum Cable Length |
Up to 1312' / 400 m
|
Output Connector |
1 x Miniature LEMO Male
|
Operating Current Consumption |
P48: 2 mA
P12: 3 mA |
Operating Voltage |
P48: 30 to 52 VDC
P12: 11 to 13 VDC |
Length |
1" / 25.5 mm
|
Diameter |
0.8" / 20 mm
|
Weight |
1 oz / 28 g
|
Package Weight |
1.415 lb
|
Box Dimensions (LxWxH) |
7.9 x 7.6 x 2.4"
|
Schoeps MK 5 Microphone Capsule (Matte Gray) Specs
Microphone |
Omni
Frequency Range: 20 Hz to 20 kHz Sensitivity: 10 mV/Pa Equivalent Noise Level (A-Weighted): 14 dB-A Equivalent Noise Level (CCIR): 26 dB Signal-to-Noise Ratio (A-Weighted): 80 dB-A Maximum Sound Pressure Level at 0.5% THD: 133 dB-SPL Cardioid Frequency Range: 40 Hz to 20 kHz Sensitivity: 13 mV/Pa Equivalent Noise Level (A-Weighted): 15 dB-A Equivalent Noise Level (CCIR): 24 dB Signal-to-Noise Ratio (A-Weighted): 79 dB-A Maximum Sound Pressure Level at 0.5% THD: 132 dB-SPL |
Length |
1.1" (27.0 mm)
|
Diameter |
0.8" (20.0 mm)
|
Dimensions |
Not specified by manufacturer
|
Weight |
0.9 oz (25.0 g)
|
Package Weight |
0.2 lb
|
Box Dimensions (LxWxH) |
7 x 4.5 x 0.1"
|
Schoeps Solid Foam Teardrop Popscreen for Schoeps Colette Series Microphones (Gray) Specs
Maximum Noise Attenuation |
20 dBA in 11 mph / 18 km/h Wind
|
Material |
Foam
|
Outer Diameter |
1.77" / 45 mm
|
Length |
2.75" / 70 mm
|
Package Weight |
0.02 lb
|
Box Dimensions (LxWxH) |
6.4 x 3.05 x 1.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
