Description

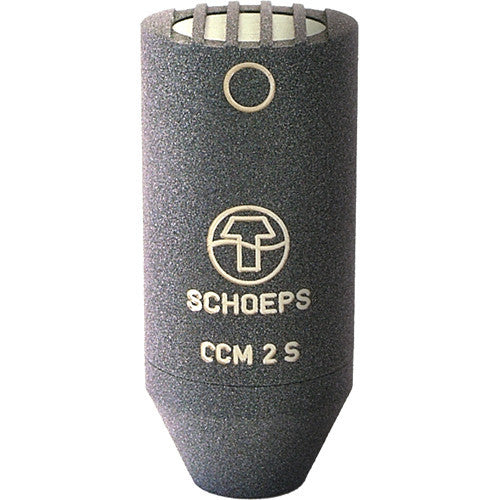

The SCHOEPS CCM 2S Omni-Directional Compact Microphone with LEMO Disconnect has an omni-directional pattern. It is a miniature true classic condenser microphone (no electret used). The capsule and amplifier form an inseparable unit in a single housing. The microphone includes a K5 LU 16� Detachable LEMO to XLR-3M Adapter Cable with 3mm diameter, SGC Stand, and wood box.
It has a slight high frequency emphasis for universal use. It is used for essentially suitable pickup of low-frequency information and room sound. If directivity is not required (e.g., close miking), the omni CCM 2S + windscreen W 5 or W 5 D will offer low sensitivity to wind, popping, and handling noise for outdoor recording. It is an all-purpose capsule for music and speech and also for use at moderate distance (at or near the reverberation radius).
The MK 2S Microphone Capsule exhibits a slight high-frequency emphasis for frontal sound incidence, with only a slight roll-off of high frequencies off-axis and in the reverberant sound field. The frequency response characteristic of the CCM 2S falls between that of the CCM 2 and the CCM 3 Micrphone, making this microphone suitable for a wide range of applications.
The CCM 2S is particularly useful in 2- and 3-microphone stereo arrays, where its placement near the reverberation radius of the sound field presents a sonically balanced pickup favored by many recording engineers. It has become a popular pressure transducer.
The included K 5 LU Cable is an adapter cable from the LEMO output connector of the CCM _L Compact Condenser Microphones to XLR-3M.
The included Miniature Stand Mount with Swivel SGC is adjustable from 0� through 100� in either direction. The internal thread of the SGC screws onto any 3/8� rod (e.g., vertical support rods STR) or stand adapter. The SGC is an integral part of the HC miniature cable hanger and the TCg table stand.
Note: For spaced microphone (A/B) stereo recording and especially the Decca Tree method, KA 40 accessory spheres are recommended.
- True condensers do not require electronic frequency response correction
- Balanced, low-impedance output via removable 16.4' (5m) cable; LEMO to XLR-3M connector
- For universal use
- Small and light
- LEMO disconnect allows for use of special accessories
- Boasts flat frequency response
- Sound is extensively independent of directional pattern
- Has low noise and distortion
- Runs on both 48 and 12V phantom
- Can be used with very long cables over 328' (100m)
- Matte gray non-reflective surface finish
- Omni-directional pattern
- Slight high-frequency rise to compensate for losses at moderate recording distances
- For a very wide range of recording applications
- Often preferred for spaced microphone stereo pickup and Decca Tree arrangements
- Applications: Orchestra in stereo and surround
- Can be used for use with general instrument including organs
- K 5 LU Cable for CCM Microphones
- SGC Swivel Miniature Stand Mount
- Wood Box
- Limited 2-Year Warranty
| General | |
|---|---|
| Current Consumption | P12: 8 mA, P48: 4 mA; (automatically switched) |
| Polarity | Increasing sound pressure on the microphone's 0� axis produces a positive-going voltage at 2-pin voltage at 2-pin2 |
| Output Voltage | Maximum: Approximately 1 V |
| Polar Pattern | Omnidirectional |
| Frequency Range | 20 Hz to 20 kHz |
| Sensitivity | 12 mV/Pa |
| Impedance | 90 ? |
| Load Impedance | Minimum Recommended: 600 ? |
| Equivalent Noise Level | CCIR: 24 dB A-Weighted: 12 dB-A |
| Frequency | Low-Cut: -3 dB: 20 Hz |
| Signal-to-Noise Ratio | A-Weighted: 82 dB-A |
| Length | Without Connector: 1.8 to 2.2" (46.0 to 58.0 mm) |
| Maximum SPL | At 0.5%THD: 130 dB |
| Length | Standard Length of the Cable: 16.4' (5.0 m) |
| Diameter | 0.7" (20.0 mm) |
| Standard | CE-Mark: Relevant Directives: EMC Directive: 89/336/EEC, amended by 92/31/EEC and 93/68/EEC Relevant Standards: EN 55 103-1, -2 |
| Weight | 1.5 oz (43.0 g) |
