Description
Schneider Topaz Overview
- 1Description
- 2Sensor Coverage
- 3Long Working Distance
- 4Motorized P-Iris
- 5Low Chief Ray Angle
- 6C Mount
- 7Applications

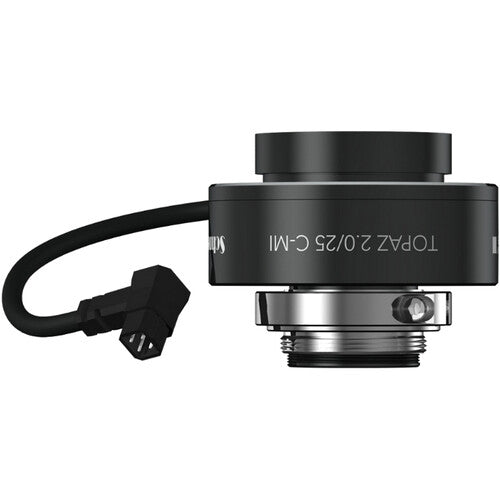

The Schneider Xenon-Topaz 25mm f/2.0 Lens with P-Iris is optimized for long working distances up to infinity for machine vision, traffic, and surveillance applications. This lens supports up to 1.2" sensors and is compatible with all generations of Sony Pregius sensors. It features an f-stop range of f/2.0 to 16, a compact, robust mechanical design and focus and iris locks. This lens is the P-iris version with motorized iris control.
Sensor Coverage
Produces optimal quality images for sensors measuring up to 1.2"/19.3mm diagonal
Long Working Distance
This Topaz lens is optimized for long working distances up to infinity
Motorized P-Iris
The motorized P-Iris enables you to select and maintain a precise aperture setting
Low Chief Ray Angle
This lens's low chief ray angle suits all Sony Pregius sensor generations
C Mount
This 25mm lens is one of a series of six C-mount lenses that are compatible with a range of industrial cameras
Applications
A robust build suits this Topaz lens for traffic, surveillance, and machine vision applications
Table of Contents
- Description
- Sensor Coverage
- Long Working Distance
- Motorized P-Iris
- Low Chief Ray Angle
- C Mount
- Applications
Schneider Topaz Specs
| Lens Mount | C |
| Sensor Compatibility | 1.2" |
| Focal Length | 25mm |
| Maximum Aperture | f/2 |
| Minimum Aperture | f/16 |
| Angle of View | 1.2" Sensor Horizontal: 38° |
| Minimum Focus Distance | From Unspecified Point in Lens: 3.0" / 77 mm |
| Focus Type | Manual Focus |
| Iris Type | P-Iris |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Filter Thread | M30.5 x 0.5 mm |
| Dimensions (ø x L) | 2 x 1.6" / 50 x 40.2 mm |
| Weight | 5.2 oz / 146 g |
