Description
Schneider Tourmaline Overview
- 1Description
- 2Sensor Coverage
- 3Compact Design
- 4Antireflective Coating
- 5Sony Pregius Compatible
- 6TFL Mount
- 7Applications

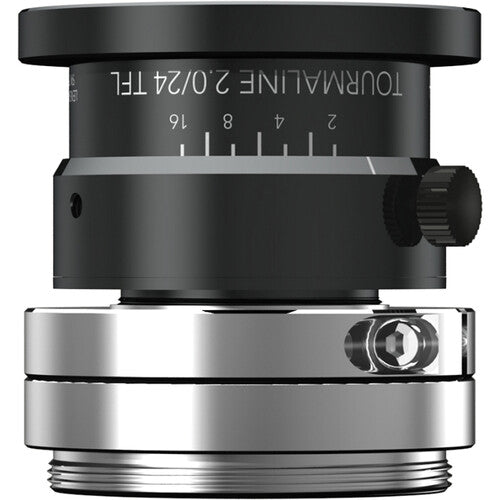

The TFL-mount Tourmaline 24mm f/2.0 TFL-Mount Lens has a compact, robust build optimized for machine vision, traffic, and surveillance applications. This lens supports up to 1.3" sensors and is compatible with all generations of Sony Pregius sensors. It features an f-stop range of 2.0 to 16, a broadband antireflective coating, an M37 filter thread, and focus and iris locks. This lens is the manual focus and iris version.
Sensor Coverage
Produces optimal quality images for sensors measuring up to 1.3"/24mm diagonal
Compact Design
This Tourmaline lens features a compact, rugged design ideal for demanding environments
Antireflective Coating
This lens's broadband antireflective coating makes it suitable for use in the visible (400-700nm) or near-infrared (700-1000nm) spectrum
Sony Pregius Compatible
The low chief ray angle is suitable for all generations of Sony Pregius sensors
TFL Mount
This 24mm lens is one of a series of eight focal lengths that are compatible with a range of industrial cameras
Applications
A robust build suits this Tourmaline lens for traffic, surveillance, and machine vision applications
In the Box
- Schneider Tourmaline 24mm f/2.0 TFL-Mount Lens
- Limited 1-Year Warranty
Table of Contents
- Description
- Sensor Coverage
- Compact Design
- Antireflective Coating
- Sony Pregius Compatible
- TFL Mount
- Applications
Schneider Tourmaline Specs
| Lens Mount | TFL |
| Sensor Compatibility | 1.3" |
| Focal Length | 24mm |
| Maximum Aperture | f/2 |
| Minimum Aperture | f/16 |
| Angle of View | 1.3" Sensor Horizontal: 52° |
| Minimum Focus Distance | From Unspecified Point in Lens: 4.3" / 108 mm |
| Focus Type | Manual Focus |
| Iris Type | Manual |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Filter Thread | M37 x 0.75 mm |
| Dimensions (ø x L) | 1.6 x 1.6" / 40 x 41.5 mm |
| Weight | 4.2 oz / 120 g |
