Description

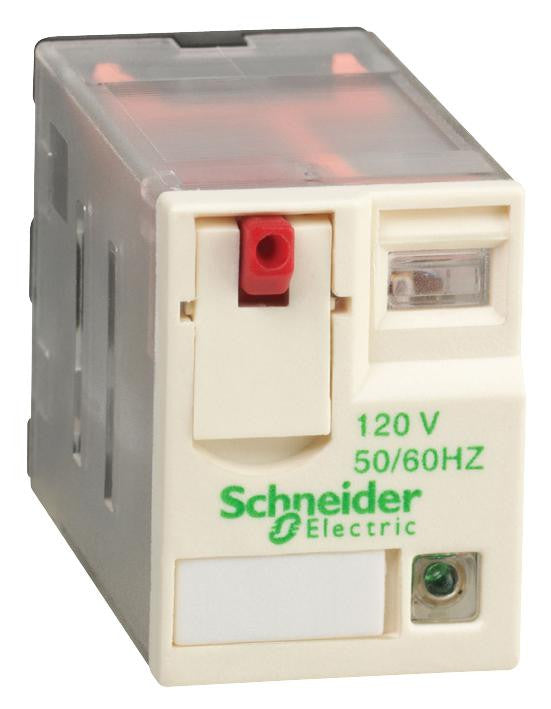

The RXM2AB1P7 is a 2-pole Miniature Plug-in Relay with AC coil, Zelio RXM series. 2CO contact configuration, flat pin, pushbutton control, AgNi contact. Without status LED. Plug-in type with standard pin arrangement (with socket). Energy management. Asset management. Input and output current and voltage adaptation.
- RT I Environmental protection rating
- IP40 Protection rating
- LED (depending on version) indicating the relay status
- Four notches for rail mounting adapter or panel mounting adapter with fixing lugs
- DPDT, 3PDT, 4PDT contact configurations
- Sockets with mixed or separate contact terminals
- AC and DC coils available based on ordering
Applications
Industrial, Power Management, Automation & Process Control, HVAC
Product details
| Contact Material | Silver |
| Relay Mounting | Socket |
| Coil Type | - |
| Coil Resistance | 15kohm |
| Product Range | Zelio RXM Series |
| Relay Terminals | Quick Connect |
| Contact Current | 12A |
| Approvals & Standards | CSA, IEC, UL |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 230VAC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 250VDC |
Other details
| Brand | SCHNEIDER ELECTRIC |
| Part Number | RXM2AB1P7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1096.66 |
| 3-5 | ₹ 1085.47 |
| 5-10 | ₹ 1063.09 |
| 10+ | ₹ 1040.71 |
Bulk discount will be automatically applied during checkout based on quantity.
