Description

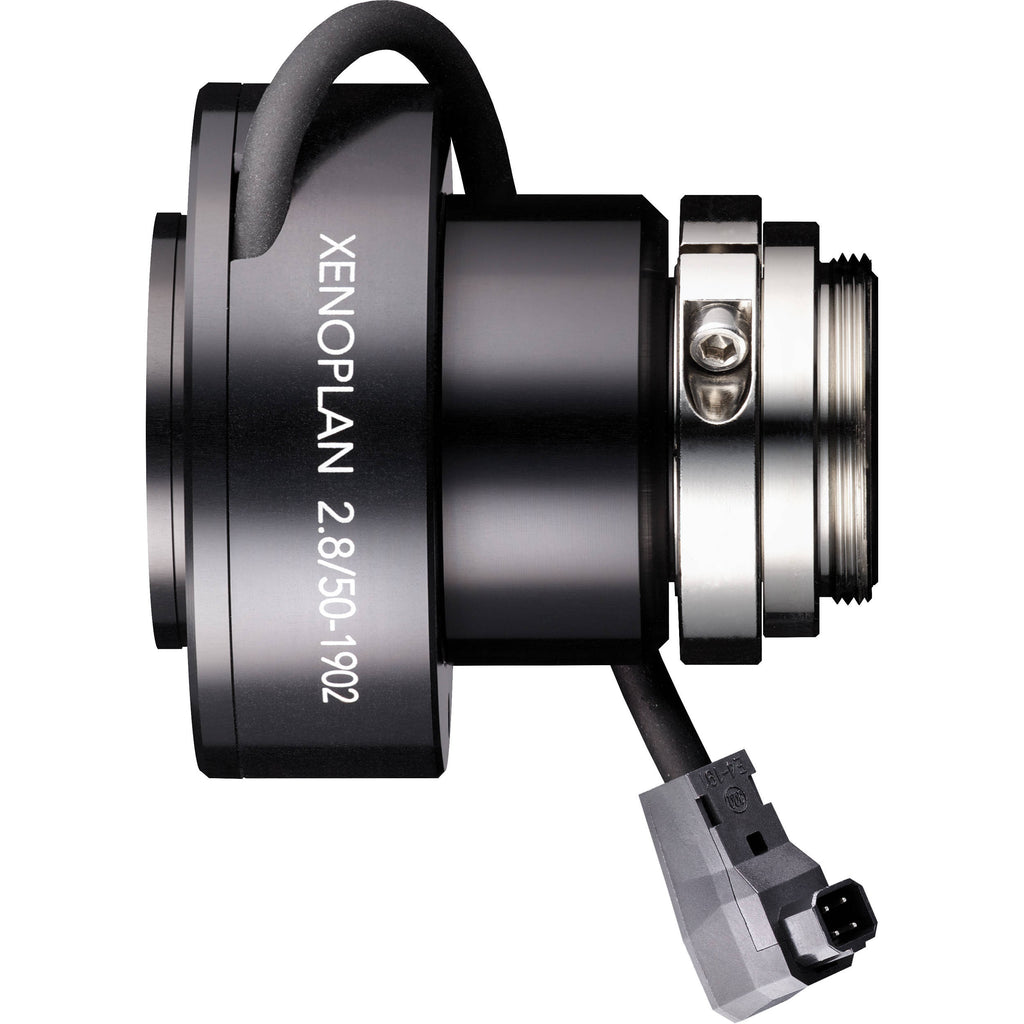

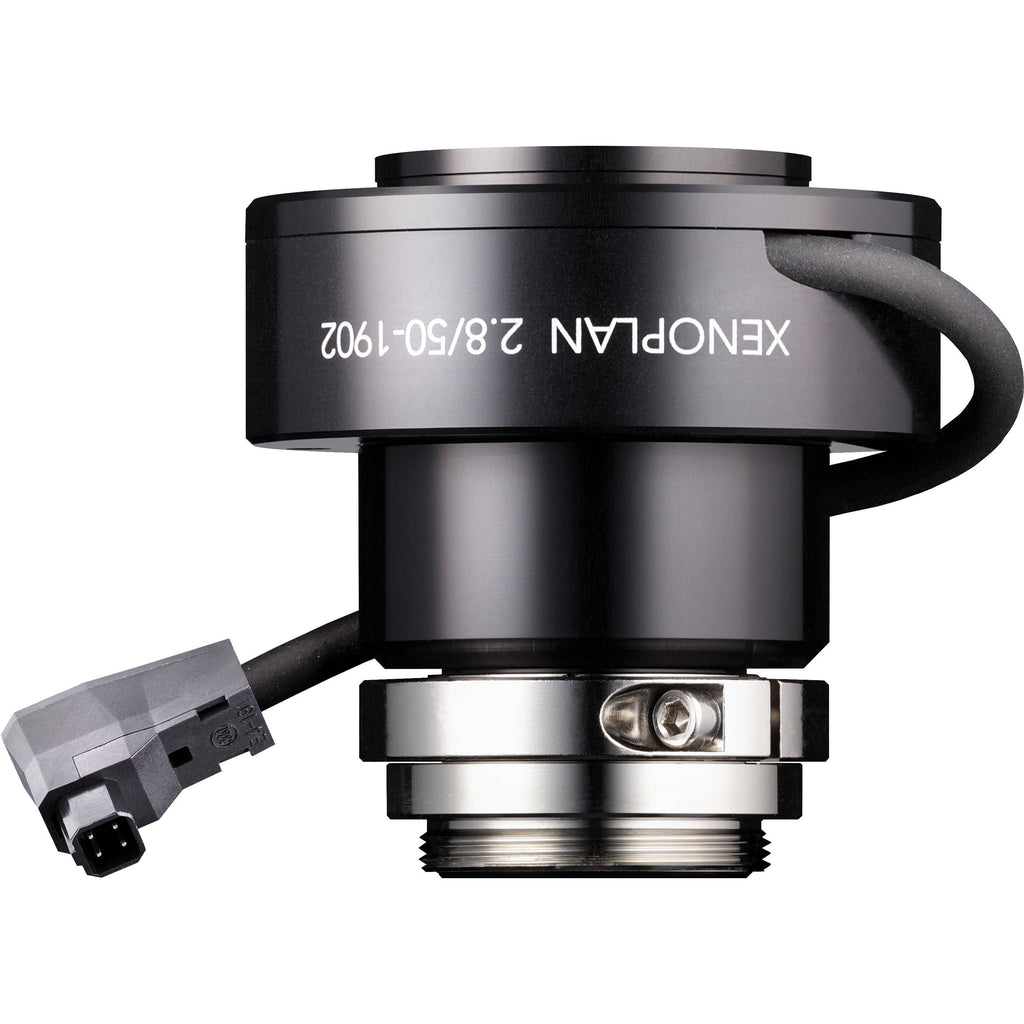

The Apo-Xenoplan F2.8 50mm Anti-Shading Ruggedized Lens from Schneider is optimized for use with 4 & 8 MP 1.3" sensors. The special optical design prevents unwanted shading on the sensor. This makes it much easier to combine a homogeneous luminance distribution with high imaging performance. The image circles are very large for C-Mount lenses. With a 1.3" sensor, the relatively short focal lengths allow a large coverage range at a short working distance. The lens is also broadband coated and can be used in the visible range 400 to 700 nm or the near infrared range 700 to 1000 nm.
- Anti-shading for sensor sizes up to 1.3" (image circle 24 mm)
- Stabilized mechanism
- Designed for 4 & 8 MP sensors
- High resolution optics 400 - 700 nm (VIS) / 700 - 1000 nm (NIR)
- High MTF across the entire sensor
- Robust mechanics for industrial environment, secured ring
- Compact and low weight construction
- Focus and iris setting lockable
- For use in 3D measurement, machine vision, traffic, and other imaging applications
In the Box
Schneider Apo-Xenoplan F2.8 50mm Anti-Shading Ruggedized Lens with P-Iris
- Limited 1-Year Warranty
| F-Number (f) | F2.8 |
| Focal Length | 50.2 mm |
| Image Circle | 24 mm |
| Spectral Range | 400 to 1000 nm |
| Interface | C-Mount |
| Dimensions (� x D) | 1.33 x 2.07" (34 x 52.7 mm) |
| Weight | 4.76 oz (135 g) |
