- Supports 1/3" Image Format
- Compatible with 4 MP CCD Cameras
- Optical Design Prevents Sensor Shading
- Numerical Aperture - f/2.0
- Provides High-resolution Images

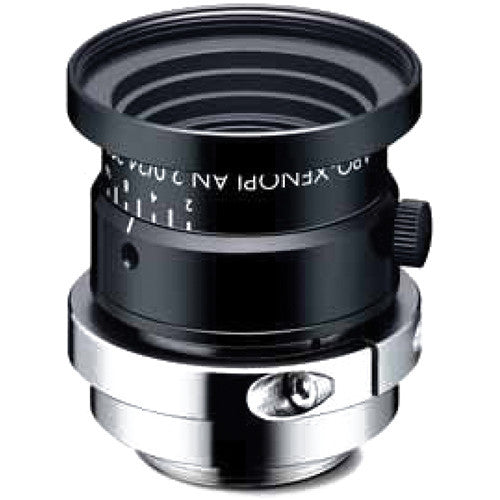

The Schneider Apo-Xenoplan 2.0 Lens (24mm) is suitable for use with 4 MP and 1/3" CCD cameras with micro-lenses on the sensor surface. With an advanced optical design and a numerical aperture of f/2.0, it prevents unwanted shading on the sensor, thereby providing images with even light distribution. Capable of producing high resolution images, the Apo-Xenoplan lens is ideal for use in 3D meteorological departments and for traffic supervision.
- Suitable for use with 4 MP and 1/3" CCD cameras with micro-lenses on the sensor surface
- With advanced optical design and numerical aperture of f/2.0, it prevents unwanted shading on the sensor, thereby providing images with even light distribution
- Produces high-resolution images and is ideal for use in 3D meteorological departments and for traffic supervision
In the Box
Schneider Apo-Xenoplan 2.0 Lens (24mm)
Type | Anti-shading |
Focal Distance | 24mm |
Aperture | f/2.0 |
Iris | f/2.0-16 |
Working Distance | ? - 76mm |
Image Circle | 24mm |
Filter Thread | 37 x 0.75 |
Dimensions (Diam. x L) | 1.9 x 2.5" (48 x 63mm) |
Weight | 2.8 oz (80g) |
