Description

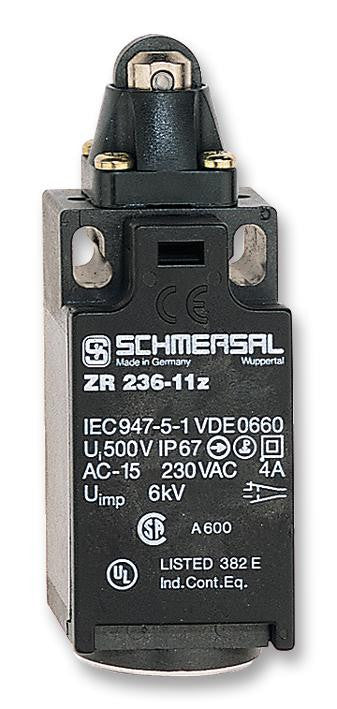

The ZR236-11Z-M20 is a safety Limit Switch with a roller plunger actuator, R snap action contacts and thermoplastic enclosure. The limit switch features snap action with constant contact pressure up to switching point and self-extinguishing glass-fibre reinforced thermoplastic housings.
- Good resistance to oil and petroleum spirit
- 1 Cable entry M20 x 1.5
- Double-insulated
- Silver-plated contacts
- IP67 Protection rating
Applications
Industrial
Product details
| Contact Current DC Max | 1A |
| Operating Force Max | 9N |
| Contact Voltage DC Max | 24V |
| Contact Current AC Max | 4A |
| Contact Configuration | 1NO / 1NC |
| Product Range | - |
| Limit Switch Actuator | Roller Plunger |
| Contact Voltage AC Max | 230V |
Other details
| Brand | SCHMERSAL |
| Part Number | ZR236-11Z-M20 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7142.81 |
| 3-5 | ₹ 7069.92 |
| 5-10 | ₹ 6924.15 |
| 10+ | ₹ 6778.38 |
Bulk discount will be automatically applied during checkout based on quantity.
