Description

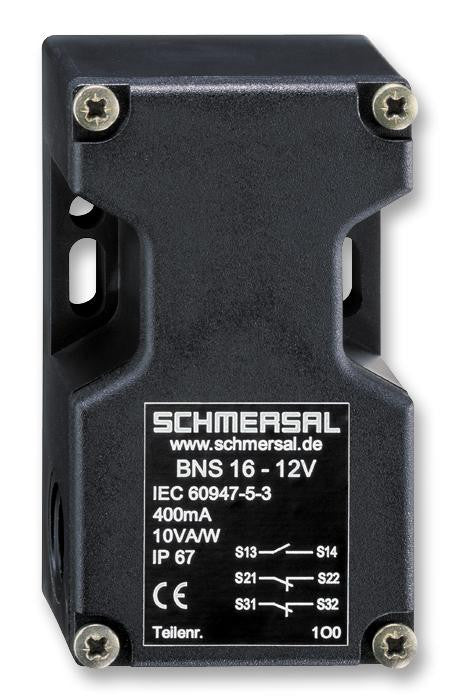

The BNS16-12ZV is a coded magnetic Safety Switch with screw connection, 1NO/2NC contacts and top activation direction. The series BNS16 coded-magnet sensors are designed for use as a safety interlock on movable machine guards. Each sensor set consists of a multiple reed switch unit and a coded-magnet actuator. The sensor outputs will only change state in the presence of their matched magnetic field array. Both switch and magnet assembly is sealed to IP67 (submersible) standard. The unit features small mounting footprint dimensions providing an attractive alternative in applications characterized by alignment problems and/or harsh environments. Suitable for food processing industry.
- Thermoplastic enclosure
- Wiring compartment with 3 cable entries (M20 x 1.5)
- Tamper-resistant cannot be bypassed with simple magnets
- Shock and vibration tolerant - Designed to withstand mechanical abuse
- Rugged, corrosion-resistant housing - Tolerates most industrial environments
- Long life
- Insensitive to transverse misalignment
- Insensitive to soiling
Applications
Industrial
Product details
| Contact Current DC Max | 400mA |
| Operating Force Max | - |
| Contact Voltage DC Max | 100V |
| Contact Current AC Max | 400mA |
| Contact Configuration | 1NO / 2NC |
| Product Range | - |
| Limit Switch Actuator | - |
| Contact Voltage AC Max | 100V |
Other details
| Brand | SCHMERSAL |
| Part Number | BNS16-12ZV |
| Quantity | Each |
| Technical Data Sheet EN |  |
