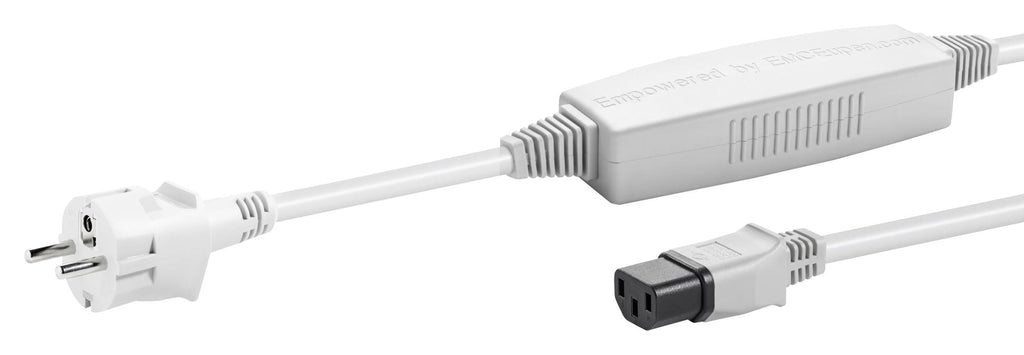

The IF13 power cords with integrated filter provide the easiest way to integrate an EMC filter into a given design with a power cord. The approach to incorparate the filter in an external cable can help to pass compliance testing at the end of the design phase. The performance of the filter is enhanced through the ferrite cable and shielding. With different versions of input and output connections the cord can be easily implemented. Complying with RoHS and REACH the power cords fulfill worldwide environmental regulations.
- High performance in high frequency range
- Retrofit for cord connected devices
- Shielding and ferrite cable
- Rated current up to 10A
Applications
Data / Computing, Industrial, Laboratory, Medical, Security
Product details
| Connector Type A |
IEC 60320 C13 |
| Connector Type B |
CEE7/VII |
| Cable Length - Metric |
2m |
| Current Rating |
10A |
| Voltage Rating |
250VAC |
| Jacket Colour |
- |
| Product Range |
IF13 Series |
| Cable Length - Imperial |
6.6ft |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
SCHAFFNER |
| Part Number |
IF13-EU2-H05-3100-WF-200 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
