Description

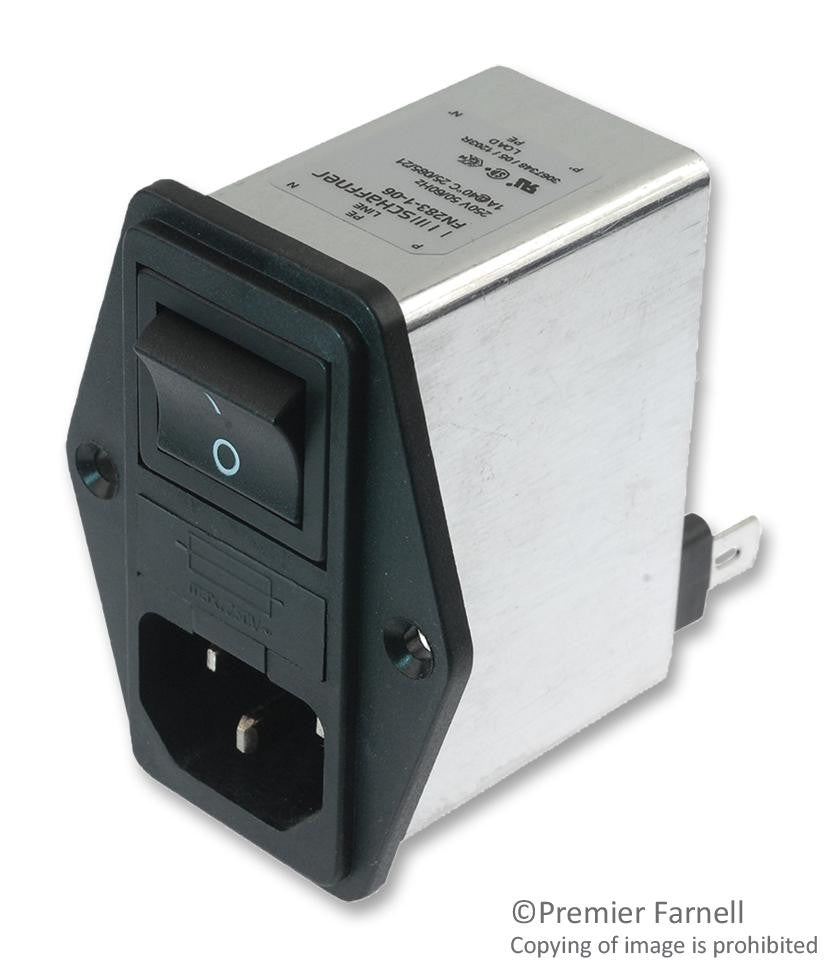

The FN284-10-06 is a dual-fuse compact filtered Power Entry Module with solder contact termination. The power entry module combines an IEC inlet, a mains filter with dual-fuse holder and a 2-pole rocker switch in a small form factor. Line brings the rapid availability of a standard filter associated with the necessary safety acceptances. Standard IEC connector filters are a practical solution helping to pass EMI system approval in a short time. High conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
- 2-pole Rocker switch
- 373�A at 230VAC/50Hz Leakage current
- 1000kR Resistance
- IP40 Protection grade
- UL94V-2 or better Flammability rating
Applications
Medical, Portable Devices, Consumer Electronics, Power Management, Test & Measurement
Product details
| Gender | Plug |
| Current Rating | 10A |
| Product Range | FN 280 Series |
| Contact Termination Type | Quick Connect |
| Voltage Rating | 250VAC |
| Connector Mounting | Panel Mount |
Other details
| Brand | SCHAFFNER |
| Part Number | FN284-10-06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
