Satechi ST-TCPHE Overview
By Photo's
Steven Esposito

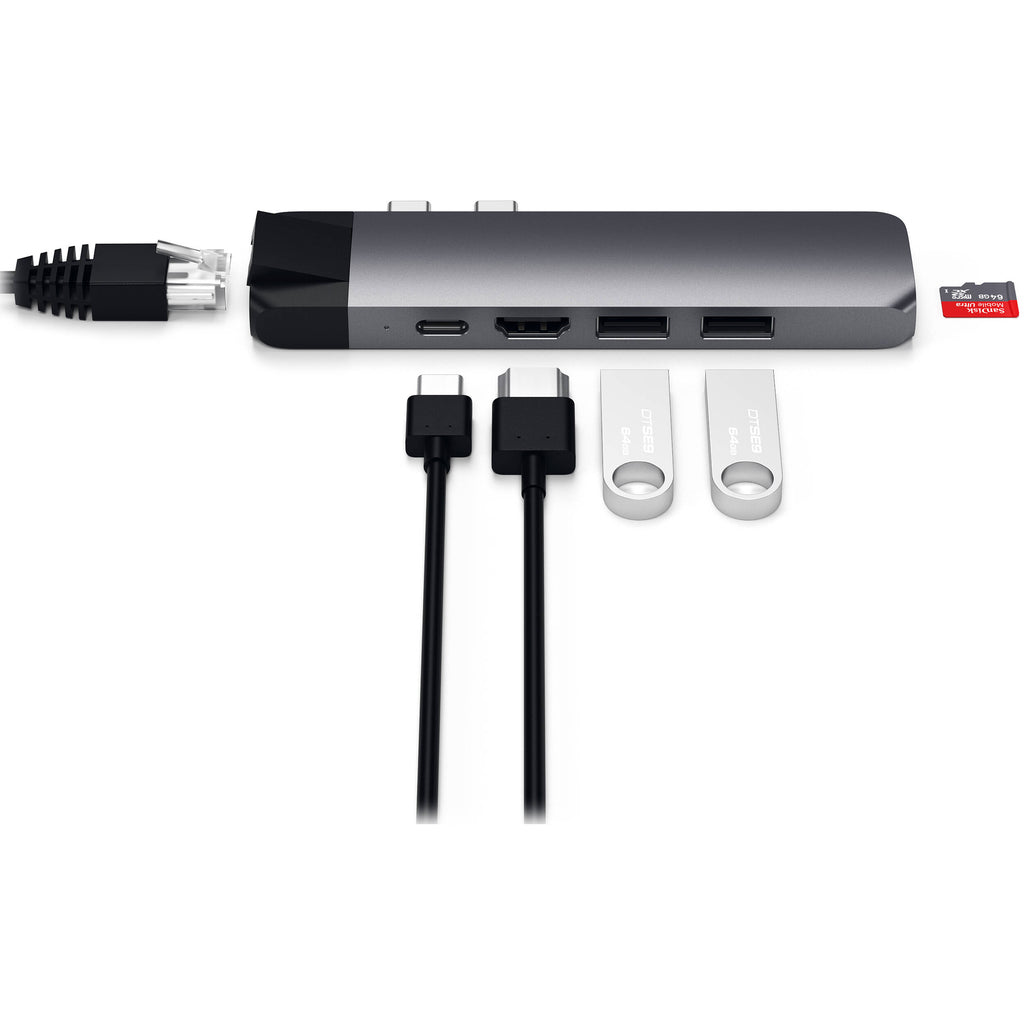

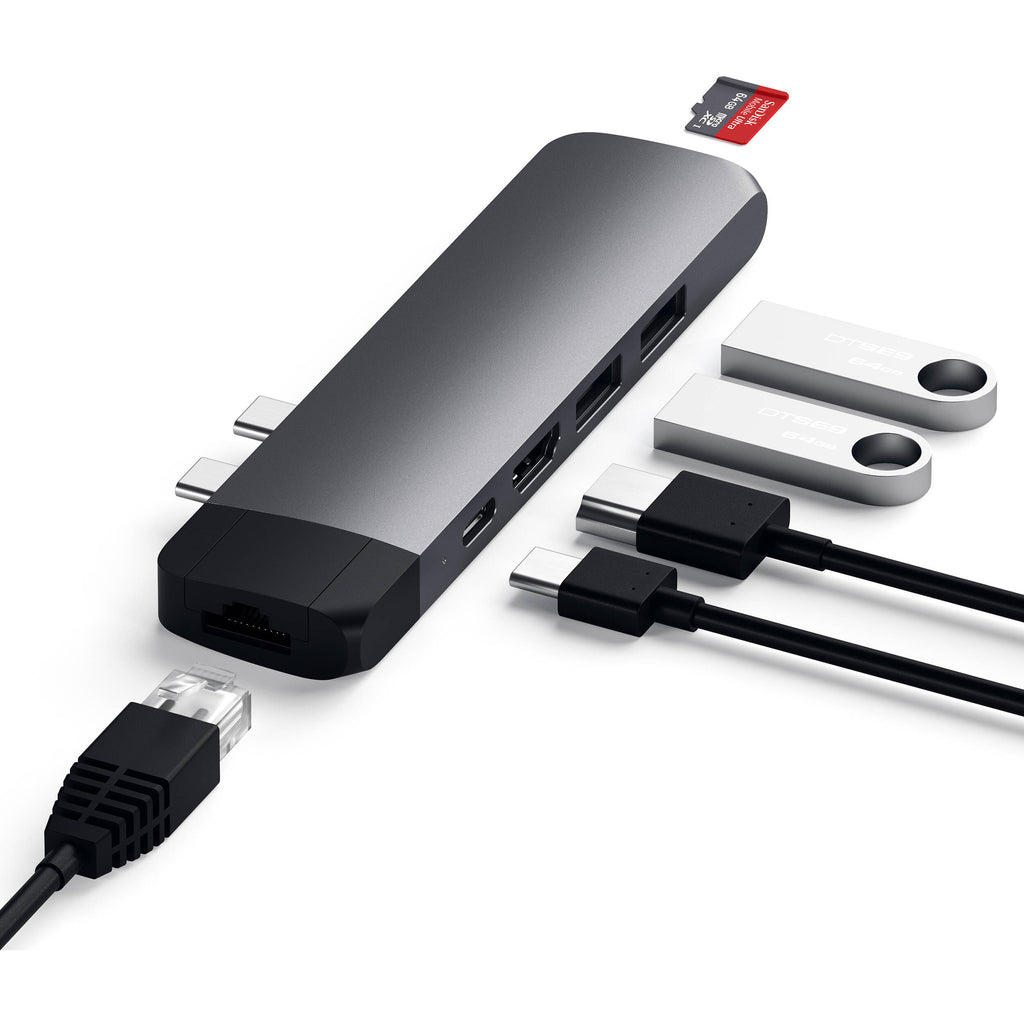

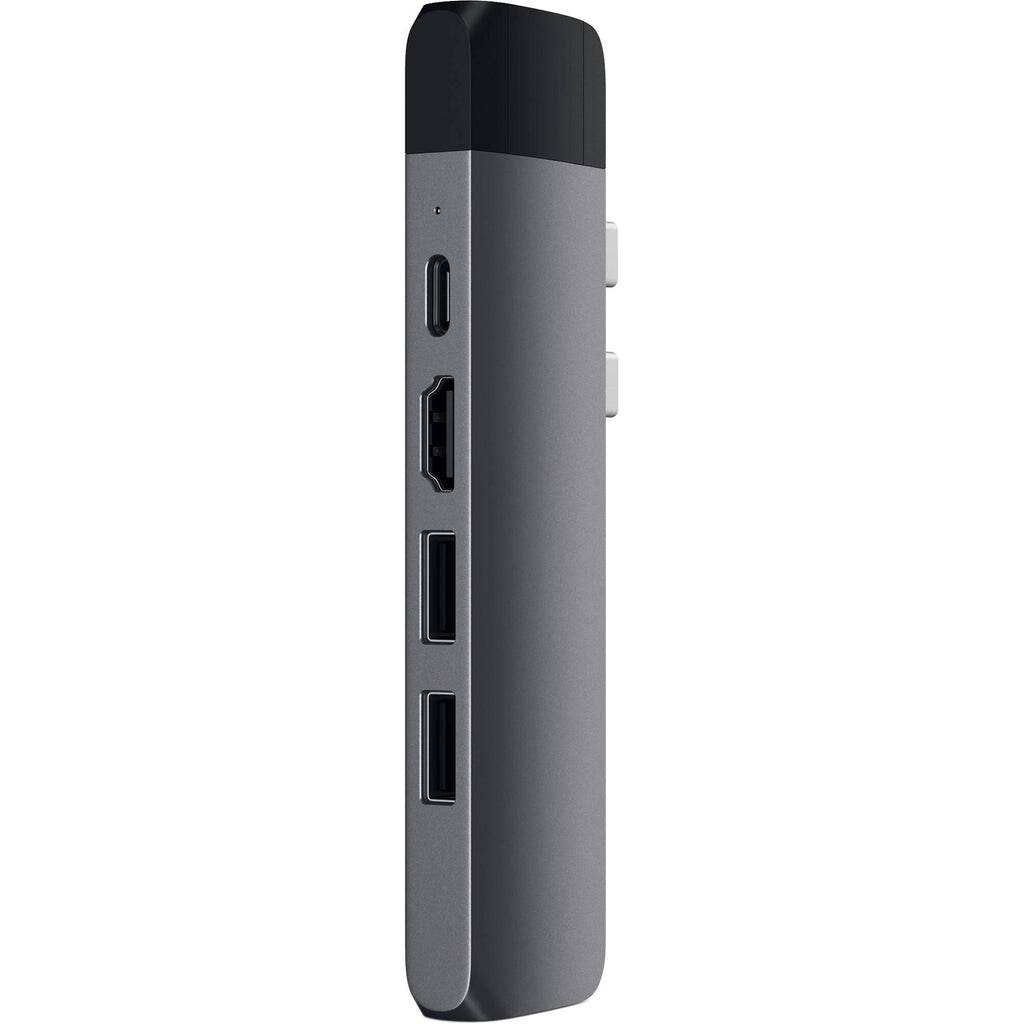

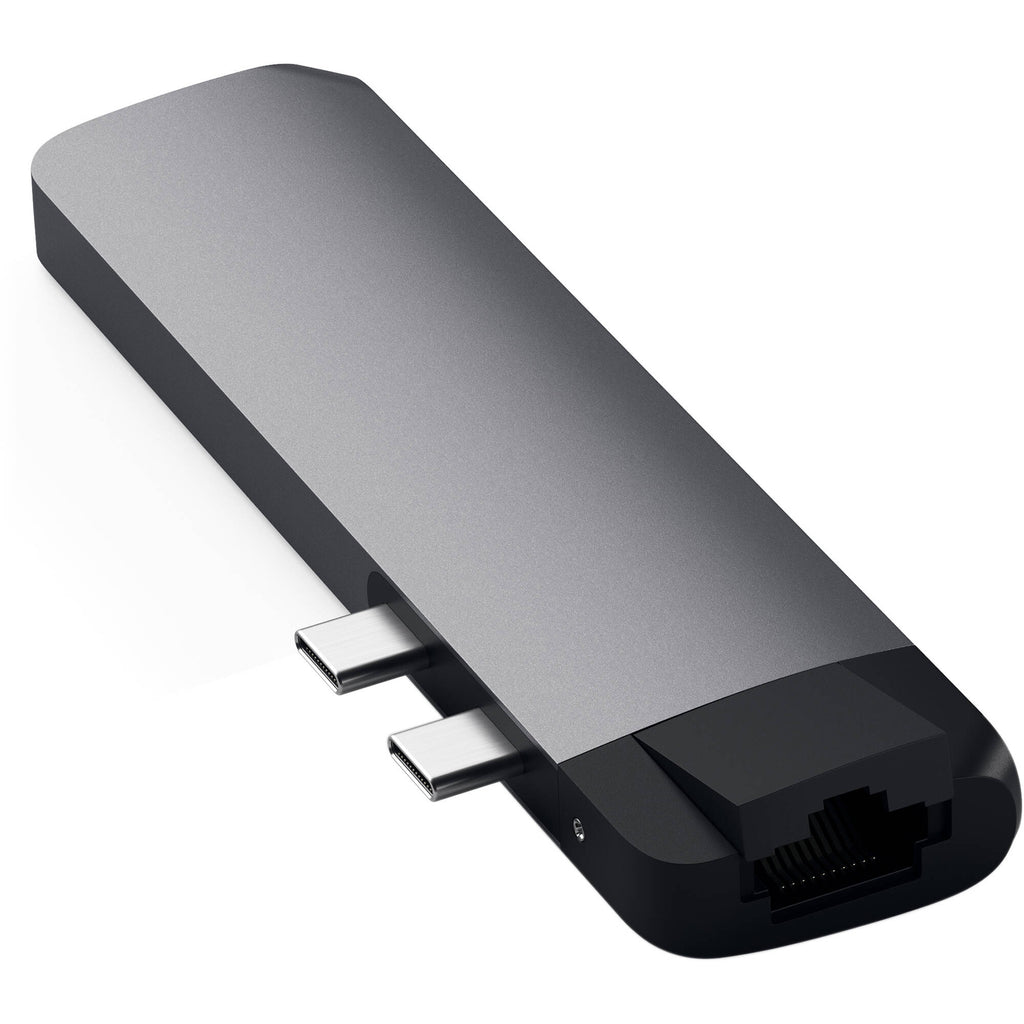

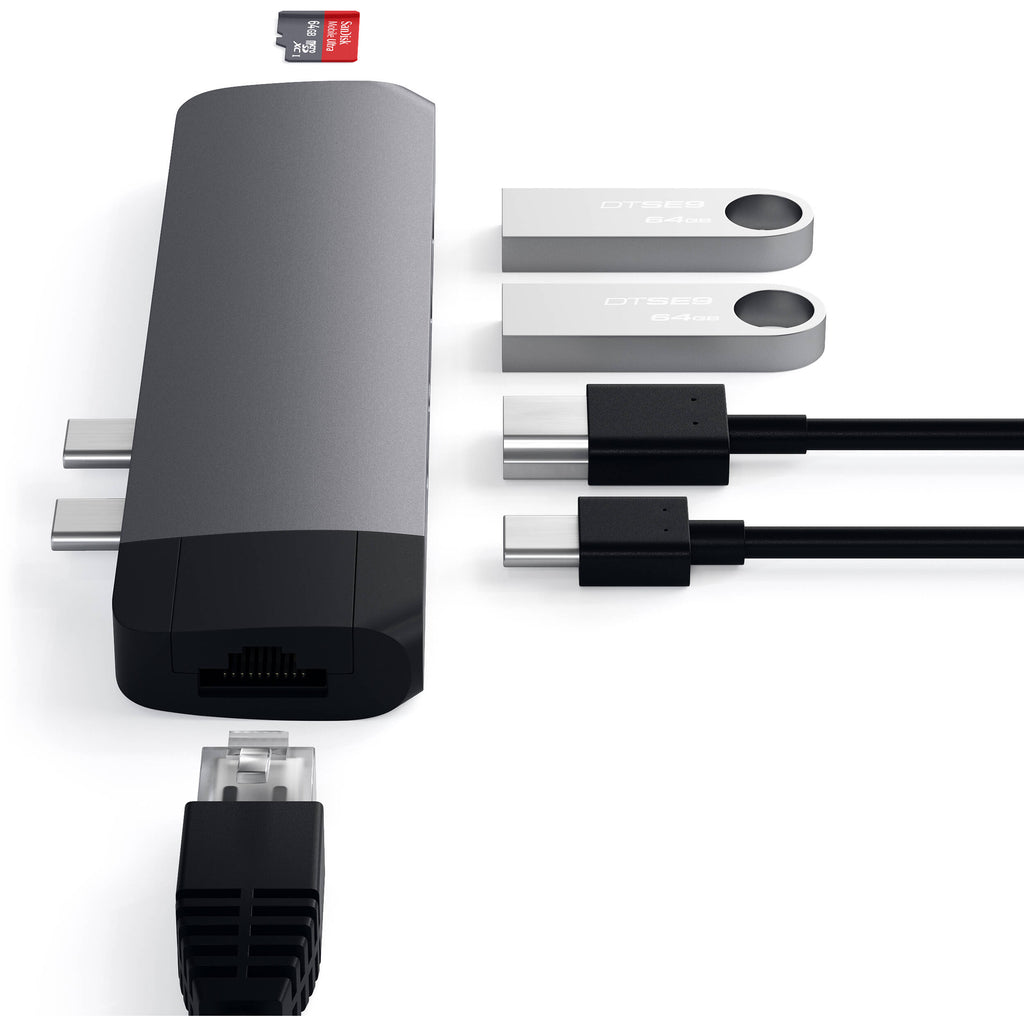

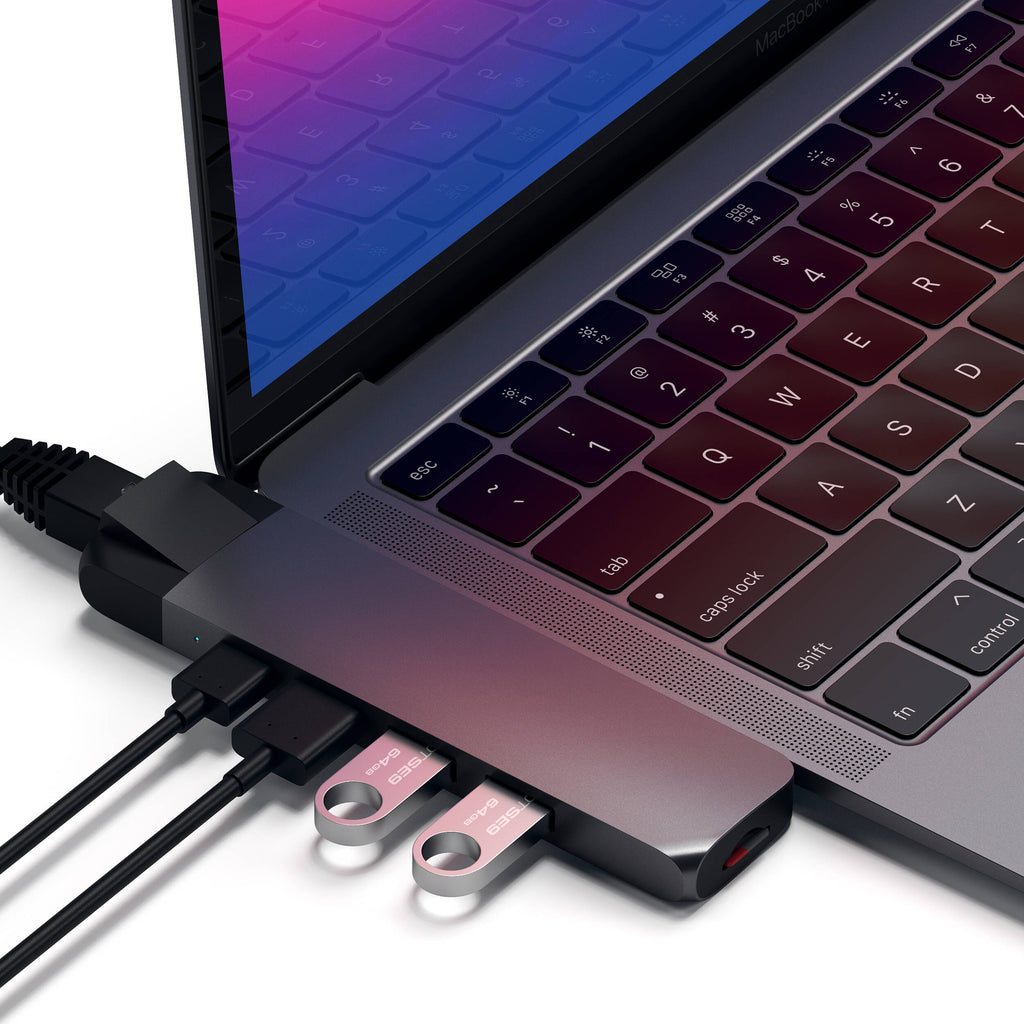

Expand the utility of your MacBook with the Satechi USB Type-C Pro Hub Adapter with Ethernet. You get robust connectivity options while sporting a slimline design, enabling you to quickly slide it into your bag or desk drawer when not in use.
Dual USB Type-C host connectors provide enough power to operate your ports. Two USB 3.2 Gen 1 Type-A ports offer data transfer speeds up to 5 Gb/s and support peripherals like external storage and thumb drives. The USB Type-C port offers 87W Power Delivery so you can charge your MacBook while using the adapter. An HDMI port allows you to expand your screen real estate, offering a max resolution up to 4K at 30 Hz refresh rate for a clear and smooth picture. You can access your photos with the SD and microSD card slots, helping you edit and obtain that perfect shot. When you can't access a wireless network, the Gigabit Ethernet port allows you to connect using a wired connection so you can access cloud networks, manage files, and even enjoy streaming media.
This adapter is compatible with select MacBook models that offer dual USB Type-C ports. Dual display functionality is not supported on Apple M1 Macs, 2020/2019/2018/2017/2016 MacBook Pro, and 2020/2018 MacBook Air devices.
While the adapter supports a wide range of devices, it does not support CD readers such as the Apple SuperDrive or iPad charging via USB Type-A ports, and it is recommended to connect one bus-powered device at a time.
Satechi ST-TCPHE Specs
Ports
| USB |
2 x USB-A USB 3.0 / 3.1/3.2 Gen 1
1 x USB-C USB 3.0 / 3.1/3.2 Gen 1 (87 W) |
| Thunderbolt |
None |
| Ethernet |
1 x RJ45 (10/100/1000 Mb/s) |
| Display |
1 x HDMI (Female) |
| Media Card Reader |
1 x microSD (Unspecified Type)
1 x SD (Unspecified Type) |
Host Connections
| Host Connection |
USB-C 3.0 / 3.1/3.2 Gen 1 |
| Connection Type |
Integrated Connector |
| Powered Connection |
87 W |
General
| Maximum Resolution Supported |
3840 x 2160 |
| HDCP Support |
No |
Power
| Power Source |
Bus Powered |
| Power I/O |
USB-C |
Physical
| LED Indicator |
None |
| Lock Slot |
No |
Packaging Info
| Package Weight |
0.165 lb |
| Box Dimensions (LxWxH) |
8.2 x 4.2 x 0.8" |
