Satechi ST-UCT4DM Overview
By Photo's
Steven Esposito

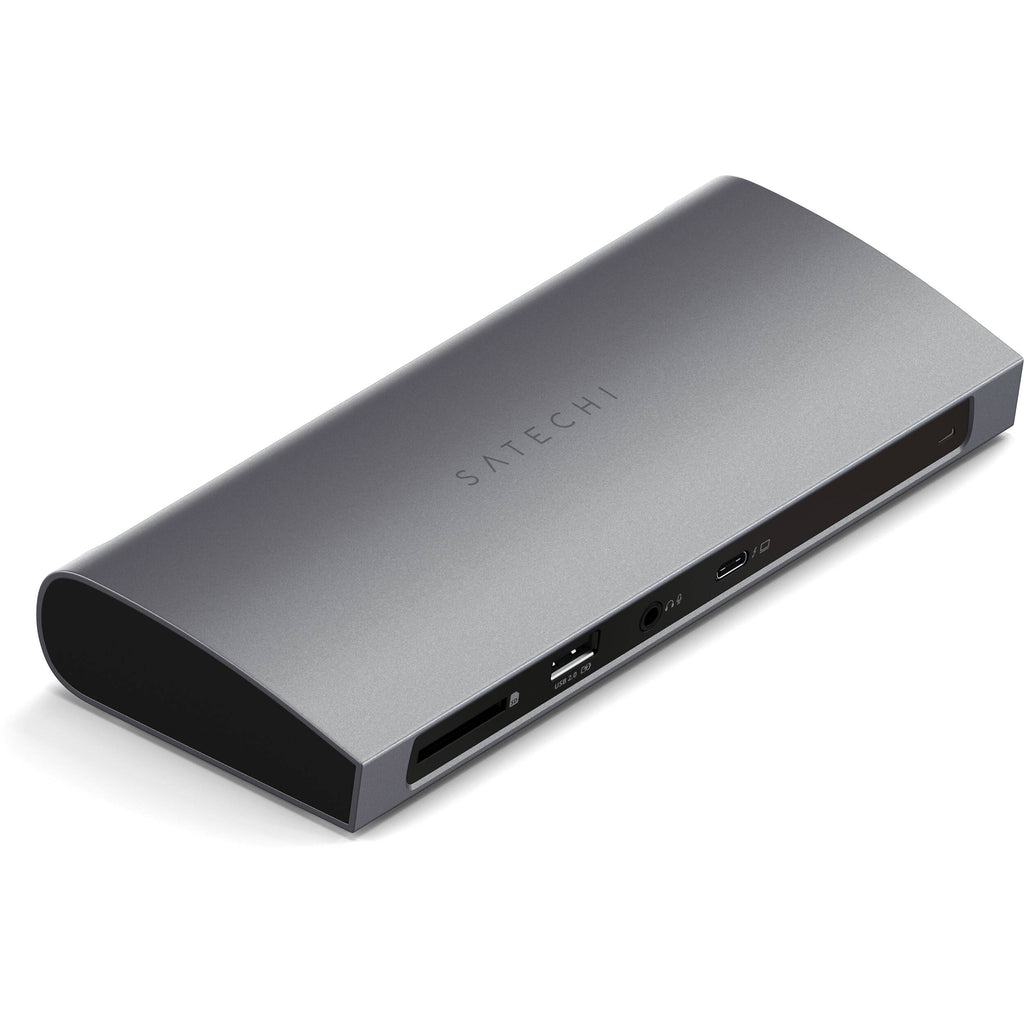

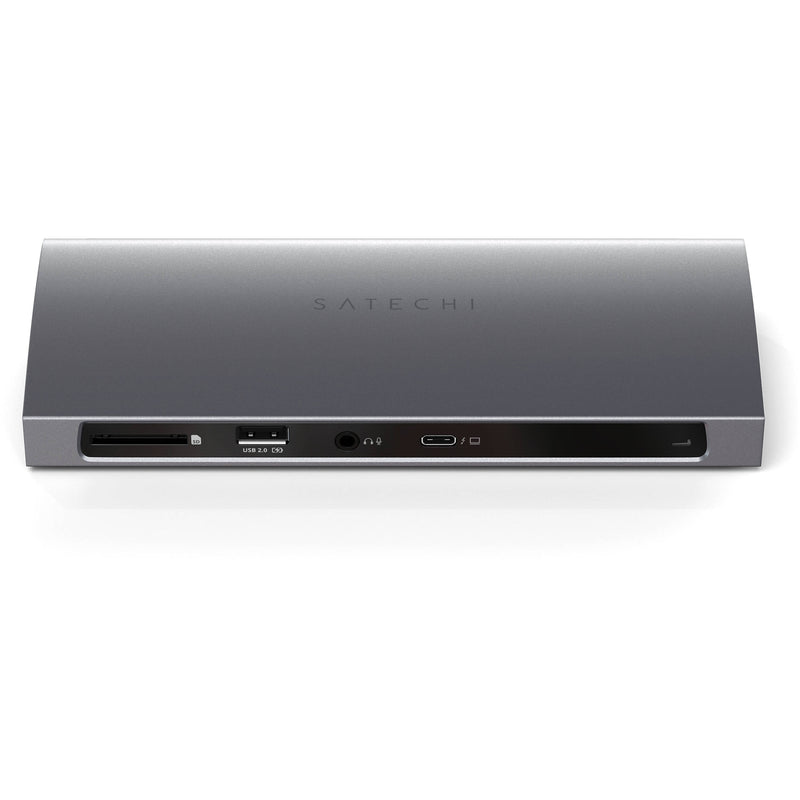

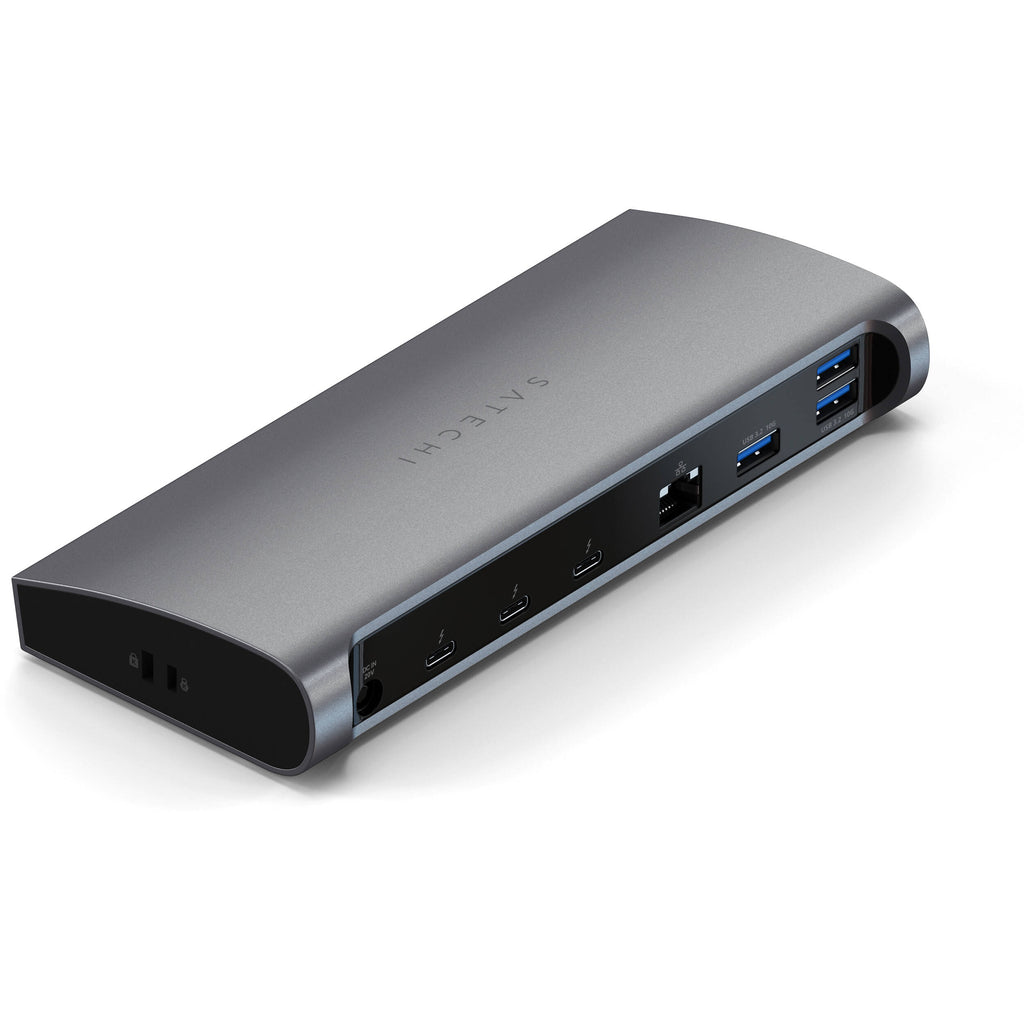

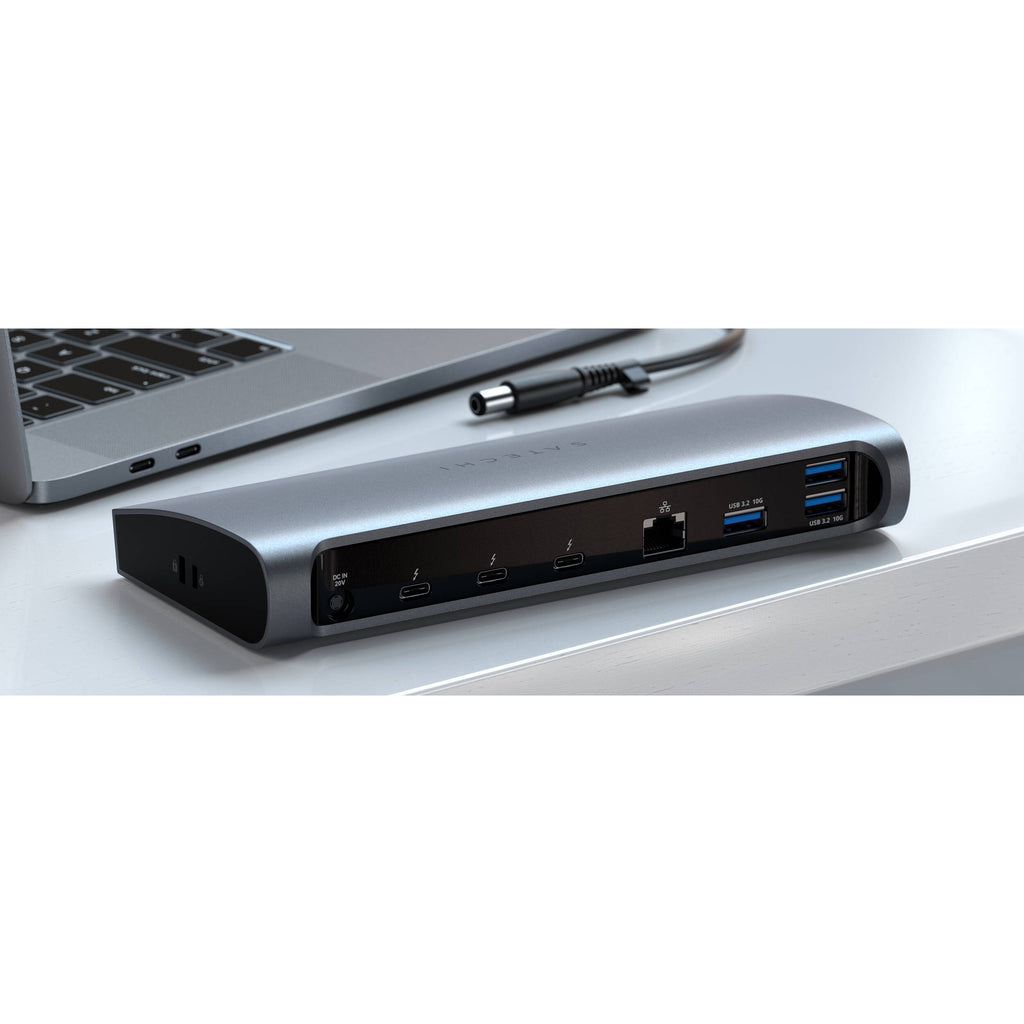

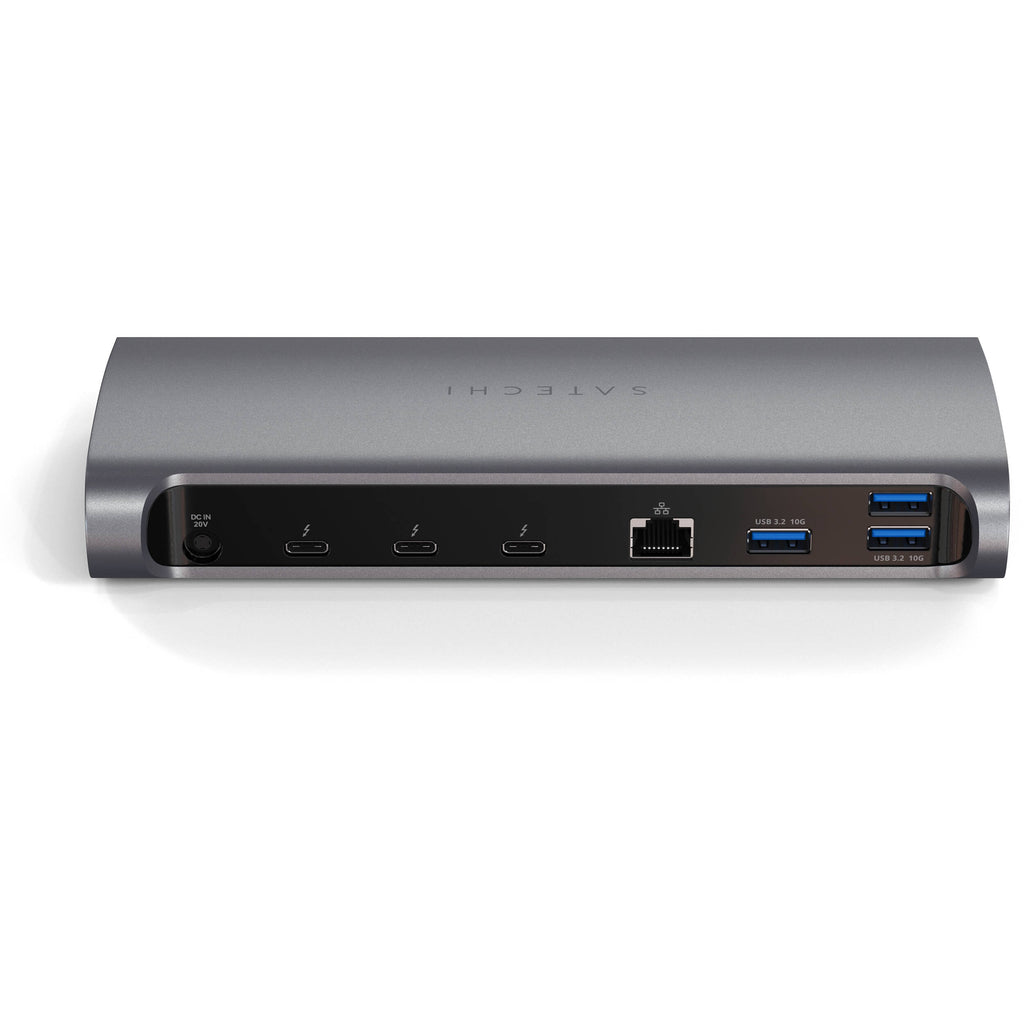

Easily expand the utility of your Windows notebook or Apple Device with the Satechi 10-in-1 Thunderbolt 4 Dock. Delivering robust functionality with ample connectivity options, this dock provides power users with workstation-like performance, streamlining your desktop setup and workflow.
A single Thunderbolt 4 host port and detachable cable charges your device with 96W Power Delivery, keeping your system operational while you work. Three Thunderbolt 4 ports sport a data transfer speed up to 40 Gb/s, ideal for resource-demanding peripherals such as storage arrays and up to two 4K displays with 60 Hz refresh rate. Three USB 3.2 Gen 2 Type-A ports offer up to 10 Gb/s speeds and support for keyboards, mice, powered microphones, and more. Low-powered devices such as thumb drives can be inserted into the USB 2.0 Type-A port. Quickly move files from your camera to your computer with the UHS-II SD card reader. Listen to your favorite media or take part in conference calls with the 3.5mm combo audio jack. If you cannot obtain a reliable Wi-Fi connection, the integrated Gigabit Ethernet port is available for a secure hardwired connection.
The Thunderbolt 4 Dock is compatible with a wide range of devices including the Apple MacBook Pro M2, MacBook Air M2, 2021 MacBook Pro M1, 2016 to 2020 MacBook Pro, 2020 MacBook Air M1, 2018 MacBook Air, 2021 iMac M1, 2019 and 2017 iMac, iMac Pro, 2021 iPad pro M1, 2020 and 2018 iPad pro, 2020 iPad Air, Microsoft Surface Laptop Studio, and Microsoft Surface Pro 8
In the Box
- Satechi 10-in-1 Thunderbolt 4 Dock (Silver)

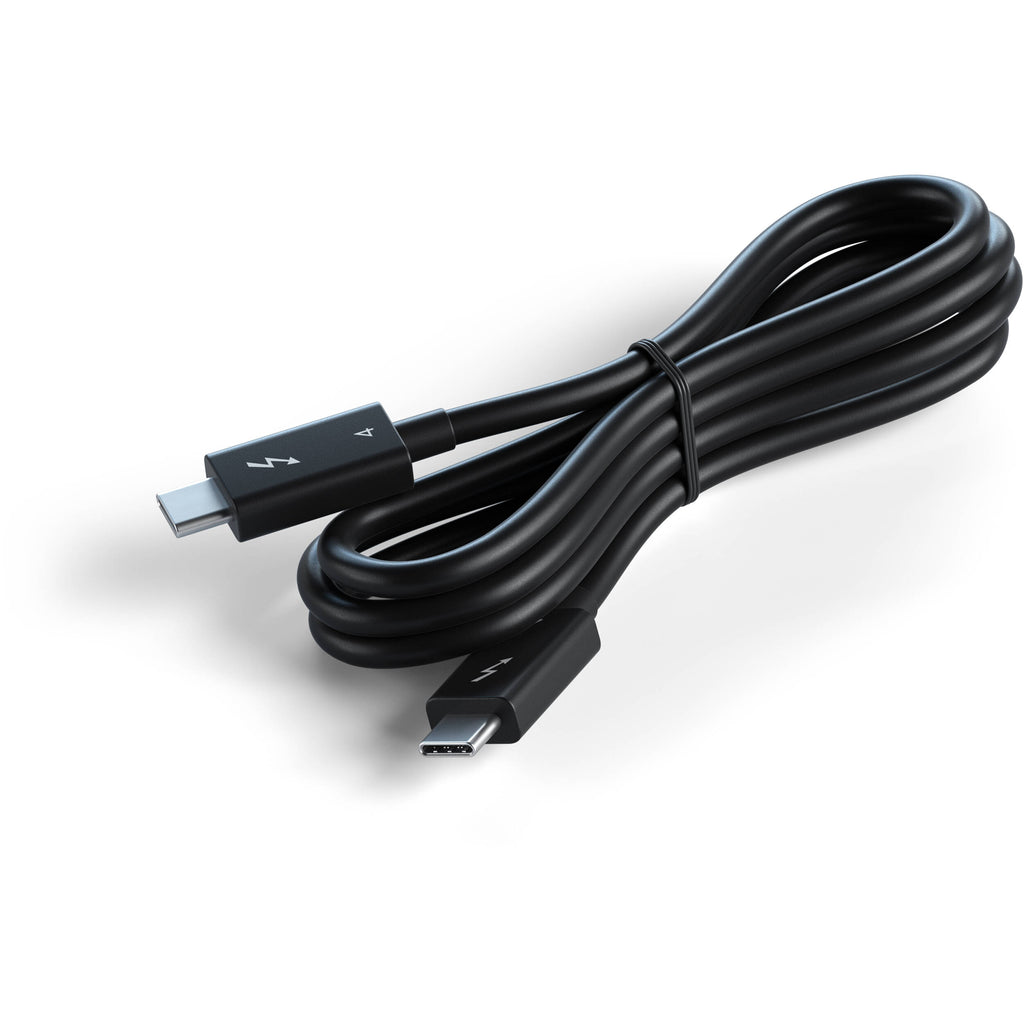

- Thunderbolt 4 Type-C Cable
- Power Cable & Adapter
Satechi ST-UCT4DM Specs
Ports
| USB |
3 x USB-A USB 3.1/3.2 Gen 2
1 x USB-A USB 2.0 |
| Thunderbolt |
3 x Thunderbolt 4 |
| Ethernet |
1 x RJ45 (10/100/1000 Mb/s) |
| Audio |
1/8" / 3.5 mm Headphone/Microphone Combo Jack |
| Media Card Reader |
1 x SD (Unspecified Type) (UHS-II [312 MB/s]) |
Host Connections
| Host Connection |
USB-C (Thunderbolt 4) |
| Connection Type |
Detachable Cable |
| Powered Connection |
96 W |
General
| Number of Displays Supported |
2 |
| Maximum Resolution Supported |
3840 x 2160 at 60 Hz (Dual Display) |
Power
| Power Source |
AC Adapter |
| Power I/O |
Barrel Connector (Unspecified Diameter) (Input) |
| DC Input Power |
20 VDC |
Physical
| Color |
Silver |
| Lock Slot |
No |
| Dimensions |
7.7 x 3.3 x 1.2" / 19.5 x 8.5 x 3 cm |
| Weight |
14.9 oz / 422 g |
Packaging Info
| Package Weight |
3.04 lb |
| Box Dimensions (LxWxH) |
9.5 x 6 x 3.7" |
