Description

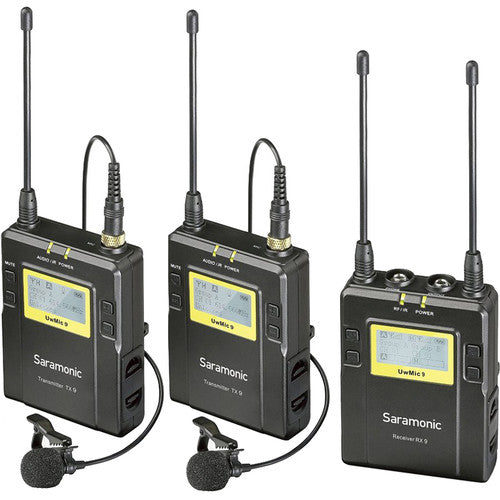

- RX9 Bodypack Receiver
- 2 x TX9 Bodypack Transmitters
- 2 x Lavalier Microphones
- 96 Selectable Channels
- Up to 330' Operating Range
- Easy-to-Read LCD Display
The UWMIC9 RX9 + TX9 + TX9, 96-Channel Digital UHF Wireless Dual Lavalier Mic System from Saramonic is a portable, camera-mountable wireless system for capturing audio with dual subjects. It can be used in several environments for video, field recording, interview, broadcast TV, and ENG applications.
The system's RX9 camera-mountable receiver features a wide-switching RF bandwidth and an easy-to-read LCD display. It is built with infrared synchronization between transmitter and receiver, an auto-scan function, and can search for an available transmission frequency. The headphone jack provides real-time monitoring with headphones, which is useful for cameras that lack a monitor output.
The two compact transmitters employ a crystal-controlled PLL synthesizer and are equipped with a muting function. Their RF power output can be switched between high, middle, and low settings. In addition, each transmitter is built with a 1/8" type mic input. Also, included with this system are two lavalier microphones, a shoe-mount adapter, a single 1/8" to XLR output cable, and a single 1/8 to 1/8" output cable.

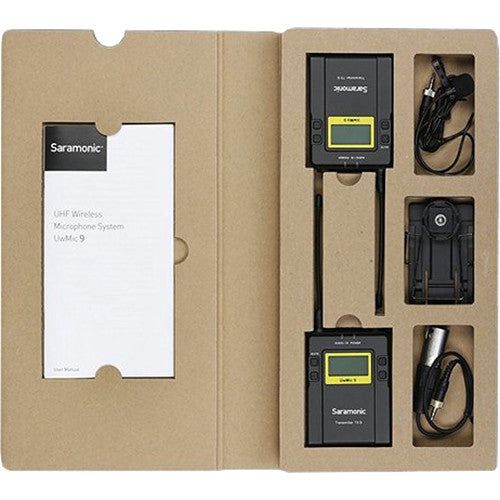

- RX9 Portable Receiver
- 2 x TX9 Bodypack Transmitters
- Shoe-Mount Adapter
- 2 x Lavalier Microphones
- 1/8" to XLR Output Cable
- 1/8 to 1/8" Output Cable
- 2 x Windscreen
- 2 x Belt Clip
- Limited 1-Year Warranty
| Receiver | |
|---|---|
| Channels | Dual Channel Available |
| Frequencies | 96, A & B group |
| Oscillator Type | PLL synthesizer |
| Audio Output Connector | 1/8" (3.5 mm) jack |
| Antenna | 1/4 wave wired |
| Audio Output Level | -60 dBV |
| Headphone Output Level | 30 mW (16 Ohms) |
| Receiving Frequency | 514 to 596 MHz |
| Receiving Sensitivity | -95 dBm |
| Signal to Noise Ratio | 70 dB or more |
| Voice Delay | 12 ms |
| Reference Deviation | ±5 kHz (-60 dBV, 1 kHz input) |
| Frequency Response | 40 Hz to 18 kHz (±3 dB) |
| Distortion | 0.5% or less |
| Spurious and Harmonic Suppression | -60 dB |
| Batteries | Two AA size batteries |
| Dimensions | 6.7 x 2.5 x 1.2" (17 x 6.4 x 3.0 cm) |
| Weight | Approx. 7.72 oz (219 g) excluding batteries |
| Transmitter | |
|---|---|
| Channels | 96, A & B group |
| Oscillator Type | PLL synthesizer |
| Audio Carrier Frequencies | 514 to 596 MHz |
| Reference Deviation | ±5 kHz (-60 dBV, 1 kHz input) |
| Signal to Noise Ratio | 70 dB or more |
| Spurious and Harmonic Suppression | -60 dB |
| Voice Delay | 12 ms |
| Antenna | 1/4 wave wired |
| Audio Input Connectors | 1/8" (3.5 mm) jack |
| Audio Input | -60 dBV (MIC input, 0 dB attenuation) |
| RF Output Level | 30 mW / 20 mW / 10 mW selectable |
| Battery | 2 x AA size batteries |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 131°F (-20 to +55°C) |
| Distortion | 0.5% or less |
| Dimensions | 6.7 x 2.5 x 1.2" (17 x 6.3 x 3.0 cm) |
| Weight | Approximately 7.46 oz (211.4 g) excluding batteries |
| Packaging Info | |
|---|---|
| Package Weight | 3.2 lb |
| Box Dimensions (LxWxH) | 13.4 x 9.9 x 2.1" |
