Saramonic Blink 500 ProX Overview
-
1Description
-
2A One-Person Wireless Audio System for Mobile Content Creation
-
3Clip-On Transmitter with Built-In Mic + Discreet Lavalier Mic
-
4Dual-Channel Receiver with USB-C Connector
-
5Quality Sound for 1- or 2-Person Shoots
-
6Blink 500 Pro vs Blink 500 ProX
A One-Person Wireless Audio System for Mobile Content Creation
Ideal for content creators, videographers, journalists, vloggers, podcasters, and live streamers, the Saramonic Blink 500 ProX B5 is a true-wireless, digital microphone system that offers a complete, cost-effective solution for recording a single on-camera personality directly to a mobile device equipped with a USB-C port.
The transmitter features a built-in mic and is paired with the receiver at the factory, making the system easy to use for anyone, and delivering reliable wireless transmission with a clear sound at a distance up to 328'. A built-in rechargeable battery in the transmitter provides up to 10 hours of operation, while the receiver is powered via the USB-C port. The included storage case features a built-in battery to recharge the transmitter and provides 35 hours of shooting time between charges.

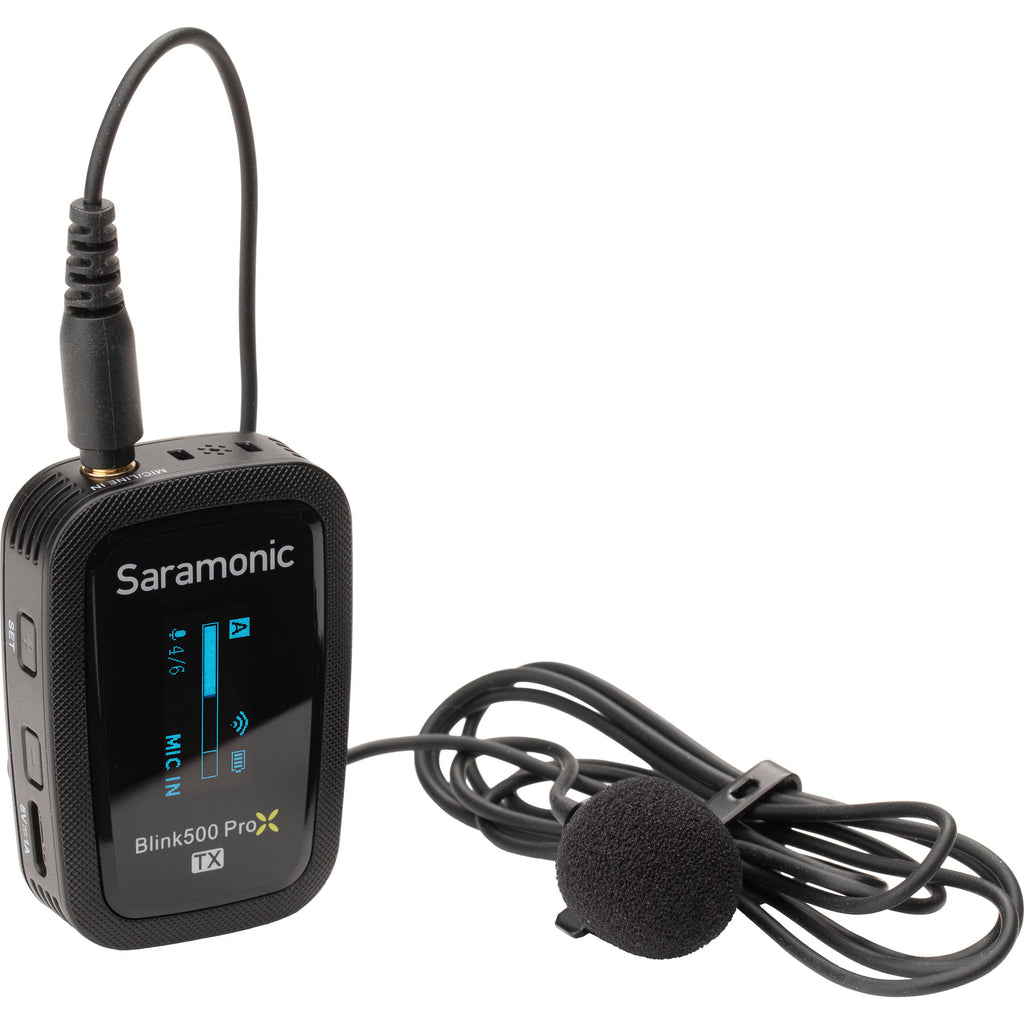

Clip-On Transmitter with Built-In Mic + Discreet Lavalier Mic
- The compact, clip-on transmitter can be quickly attached to subjects for fast, run-and-gun-style shoots; you can clip it to clothing, slide it into a shirt pocket, place it on a podium, or hold it in your hand.
- Its built-in miniature condenser microphone captures clear and natural voice tonality. The mic's omnidirectional polar pattern picks up sound in all directions, making it easy to position on your talent and get high-quality, intelligible speech.
- For a more discreet look, you can plug the included omni lavalier microphone into the transmitter's 3.5mm input jack. The input can accept mic- or line-level signals, making it fully capable of accommodating a variety of external sources, including an audio feed from a mixer or receiver.

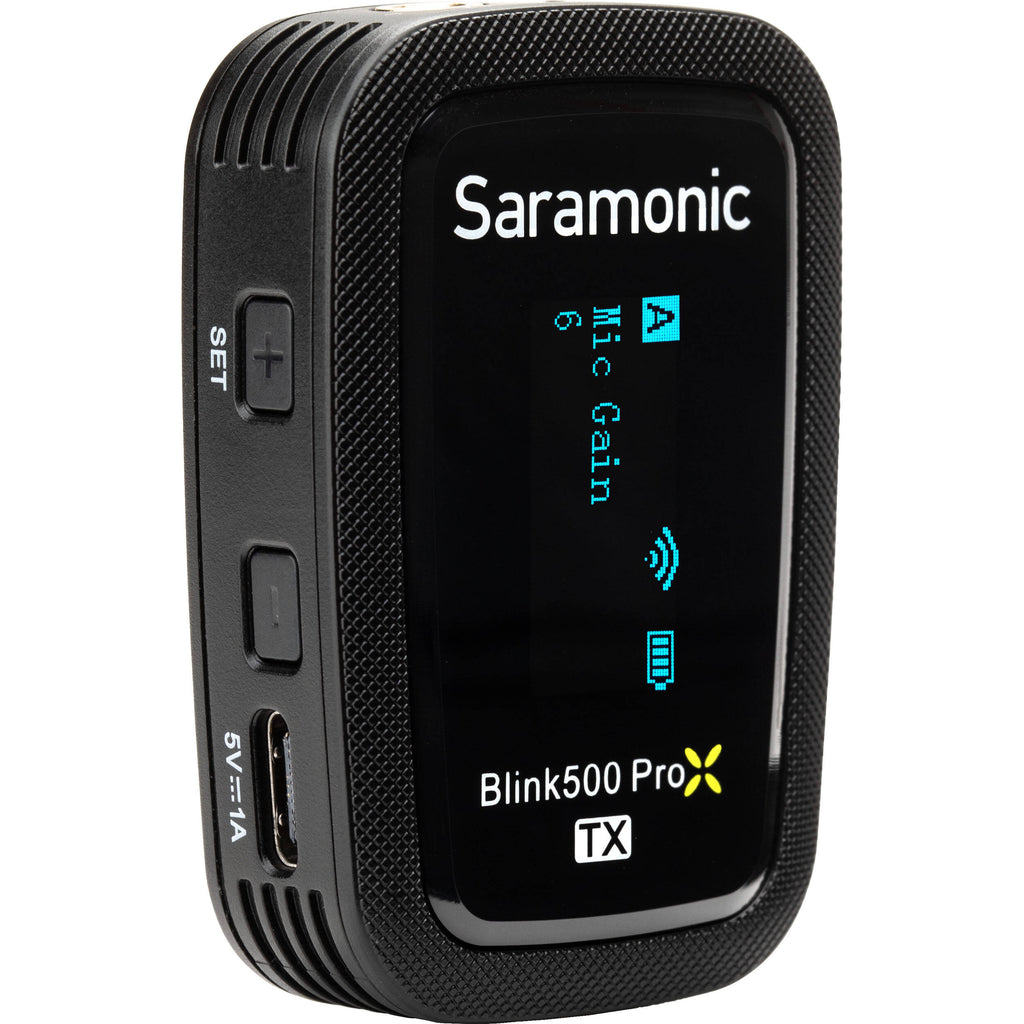

- Since your subjects may speak at very different volumes, Saramonic outfitted the Blink 500 ProX TX with dedicated gain buttons to allow quick and effortless adjustment of the signal level. Utilize the tactile mute function to cut the signal in a hurry without having to adjust the volume.
- The high-contrast OLED screen shows real-time input metering, input-gain level, mute icon, wireless strength, and battery life.
- An internal 10-hour lithium-ion battery keeps you going on extra-long shoots or multiple run-and-gun gigs in a day. Recharge the battery via the USB-C port. The transmitter can also be powered via USB, even while in use, giving you near unlimited operating time.
- The transmitter powers on and off automatically when opening and closing the charging case. The case can charge the transmitter up to 2.5 additional times anywhere.
- A furry windscreen is included for the mic/transmitter to reduce wind noise on outdoor shoots. A foam windscreen is also supplied for the lavalier microphone.

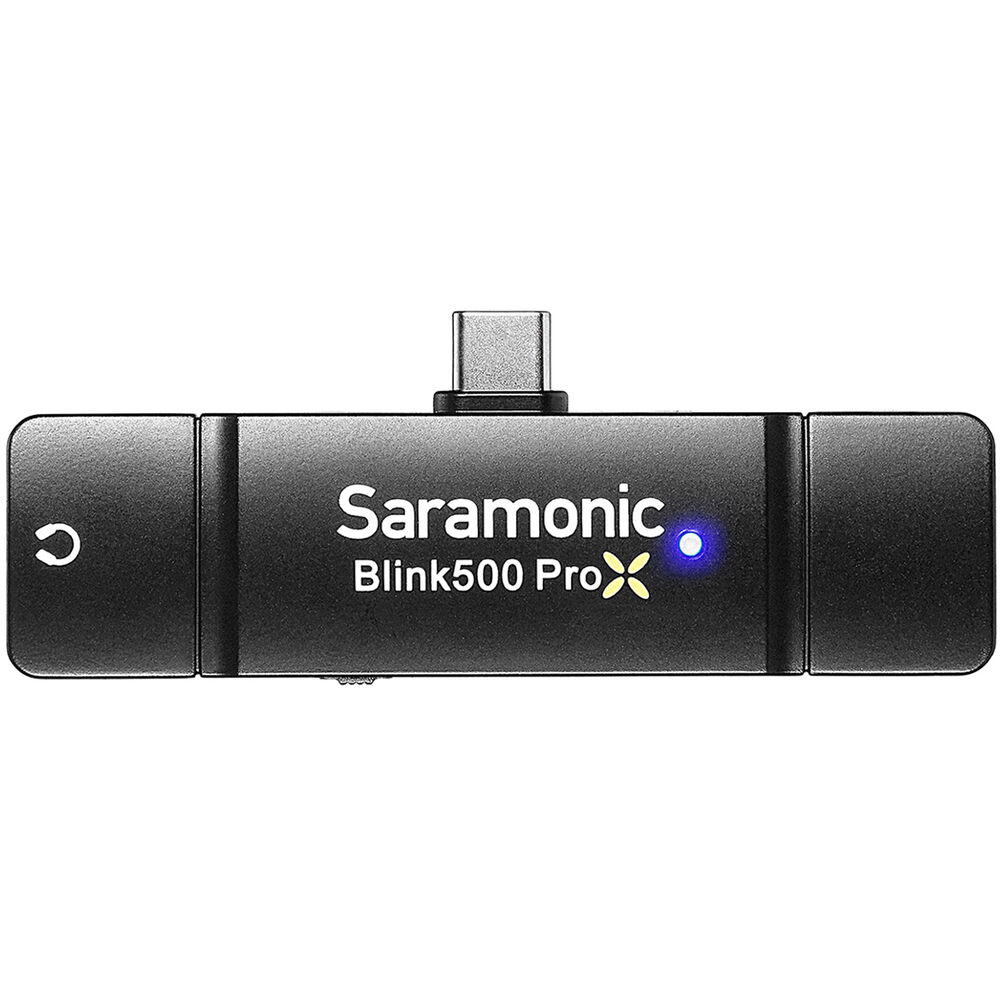

Dual-Channel Receiver with USB-C Connector
- Simply plug the dual-channel receiver into the USB-C connection on your mobile device, the USB-C port supplies the receiver with power and provides a cable-free digital connection to your phone or tablet.
- Just power up the receiver and transmitter to access reliable wireless audio functionality in an instant.
- Advanced technology invisibly handles complicated tasks such as switching channels to avoid dropouts, leaving you with a streamlined and simple system that requires no tedious manual configuration.
- A 3.5mm jack allows for headphone monitoring.
Quality Sound for 1- or 2-Person Shoots
- Blink 500 ProX systems utilize 16-bit / 48 kHz digital audio resolution to give you quality sound at a budget-friendly price point.
- Compared to the built-in microphones on cameras and mobile devices, Blink 500 ProX systems offer considerably improved fidelity and clarity with less noise.
- Within the 2.4 GHz spectrum, the Blink 500 ProX boasts automatic channel hopping to mitigate noise and dropouts at a line-of-sight distance of up to 328 feet. For optimal performance, environments with limited Wi-Fi / 2.4 GHz traffic and minimal physical obstructions are recommended.
- Since the Blink 500 ProX receiver is a dual-channel receiver, it can simultaneously handle two Blink 500 ProX wireless transmitters (second transmitter/mic available separately) for 2-person recordings.

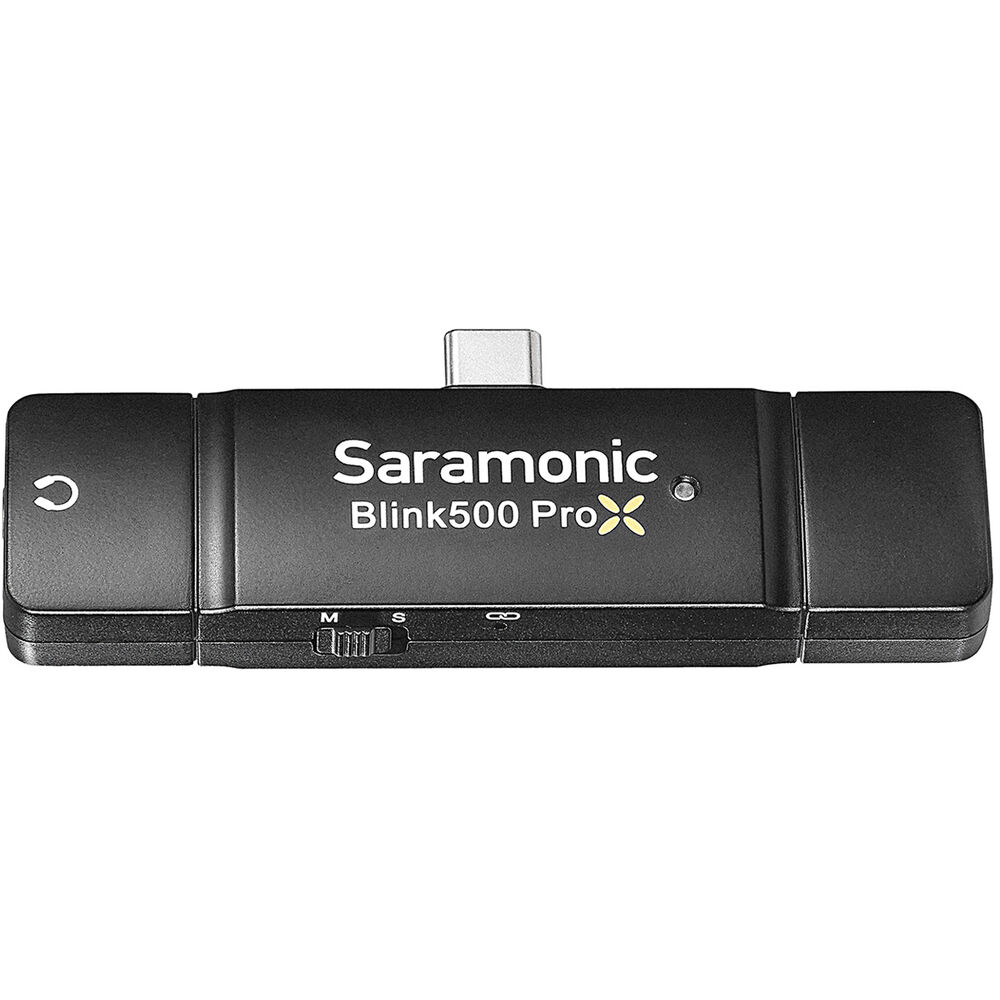

- The receiver features a selectable mono/stereo output mode, allowing it to appropriately feed signal from one transmitter into both input channels of your device (via mono mode) or from two transmitters into separate input channels of your device (via stereo mode).
- If you need to expand beyond that, you can use up to 18 Blink 500 ProX mics at once at the same location.
Blink 500 Pro vs Blink 500 ProX
- Smaller and lighter updated design
- Advanced next-generation 2.4 GHz wireless
- Higher-resolution, 16-bit / 48 kHz digital audio
- Wider 20 Hz to 20 kHz frequency response
- Less latency at ?8ms
- Higher signal-to-noise ratio at ?84 dB
- Longer transmitter battery life at 10 hours on a full charge
- Upgraded OLED display with real-time metering on transmitter
- Charging case with 2000mAh internal battery for on-the-go power
In the Box

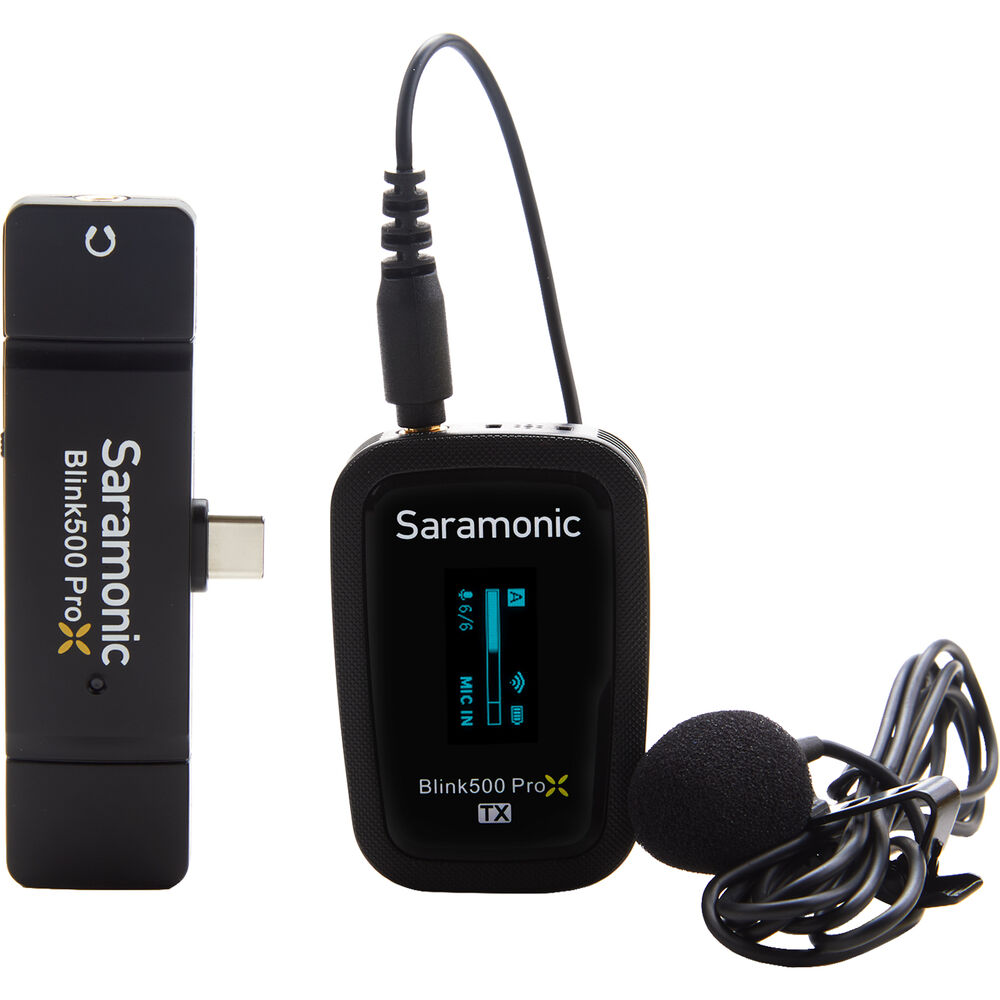

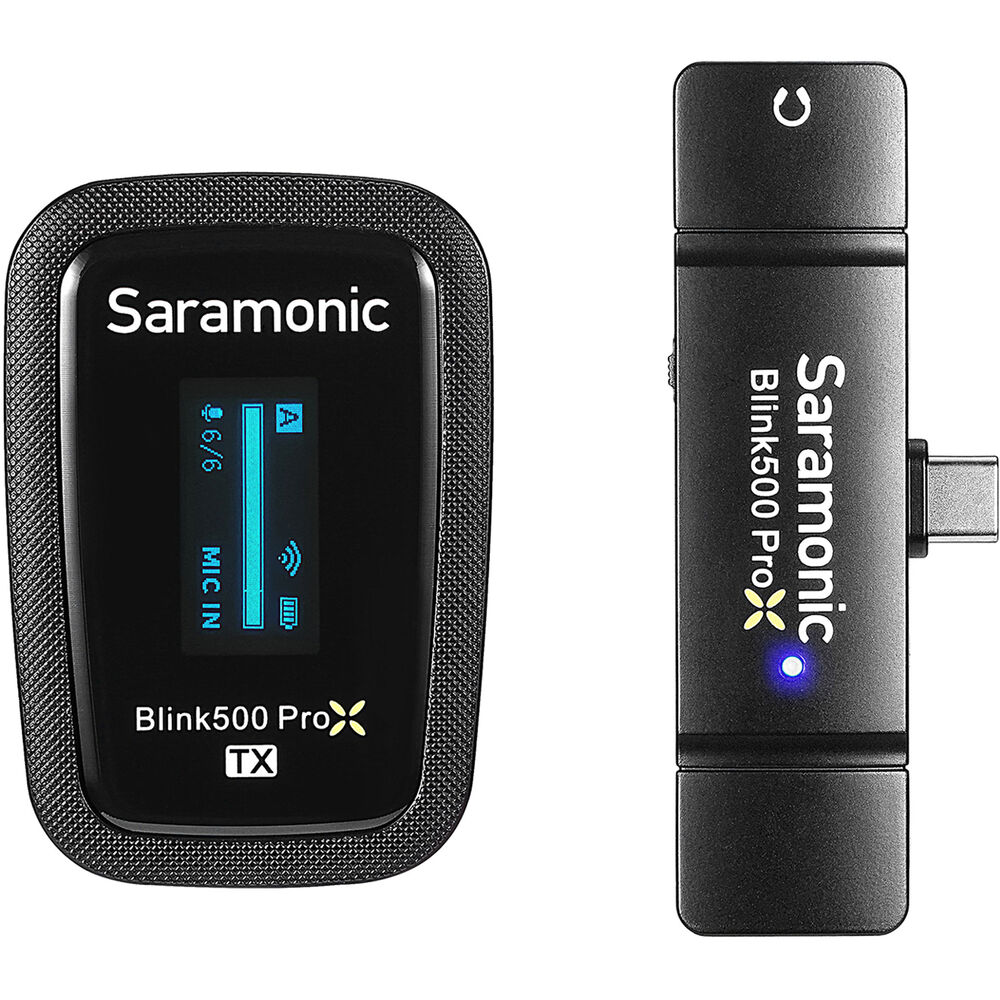

- Saramonic Blink 500 ProX B5 Digital Wireless Lavalier Microphone System with USB-C Connector (2.4 GHz)
- Saramonic Blink 500 ProX TX Transmitter with Built-In Mic and Lavalier Mic (2.4 GHz)
- Saramonic Blink 500 ProX RXUC Dual-Channel Digital Wireless Receiver with USB-C Connector (2.4 GHz)
- Saramonic SR-M1 Omnidirectional Lavalier Microphone Cable with 3.5mm TRS Connector (Black)
- Blink 500 ProX B3/5BOX Charging Case
- Carry Pouch
- Pairing Pin
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- A One-Person Wireless Audio System for Mobile Content Creation
- Clip-On Transmitter with Built-In Mic + Discreet Lavalier Mic
- Dual-Channel Receiver with USB-C Connector
- Quality Sound for 1- or 2-Person Shoots
- Blink 500 Pro vs Blink 500 ProX
Saramonic Blink 500 ProX Specs
System
Wireless Technology |
Digital 2.4 GHz |
Included Transmitters |
1 x Clip-On with Microphone |
Diversity |
Non-Diversity |
RF Channel Scanning |
Auto-Scan |
Max Operating Range |
328' / 100 m (Line of Sight) |
Max Transmitters per Band |
18 |
Built-In Recorder |
No |
Timecode Support |
No |
Mobile App Compatible |
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
OS Compatibility |
Android *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Latency |
8 ms |
Encryption |
None |
SNR |
>84 dB |
THD |
?0.1 % |
Receiver
Receiver Type |
USB Stick |
Mounting Options |
Plug-In (with Included Hardware) |
Antenna |
1 x Internal |
Number of Audio Channels |
2 |
Audio I/O |
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
Audio Output Level |
-16.5 dBu |
Phantom Power Protection |
None |
Frequency Response |
20 Hz to 20 kHz |
Network I/O |
None |
Word Clock I/O |
None |
USB/Lightning Connectivity |
1 x USB-C Male (Audio, Bus Power) |
Standalone Audio Interface Capable |
No |
Power Requirements |
Bus Power (USB) |
Display & Indicators |
1 x LED (Sync) |
Operating Temperature |
32 to 122°F / 0 to 50°C |
Storage Temperature |
14 to 122°F / -10 to 50°C |
Dimensions |
3.2 x 0.5 x 0.9" / 82 x 12 x 22 mm |
Weight |
0.5 oz / 15.5 g |
Transmitter
Transmitter Type |
Clip-On with Microphone |
RF Output Power |
< 10 mW |
Audio I/O |
1 x 1/8" / 3.5 mm TRS Female Unbalanced Input |
Included Cable Connector |
1/8" / 3.5 mm TRS |
Muting |
Off/On Switch |
Auto-Level Control |
No |
Frequency Response |
20 Hz to 20 kHz |
Sync Method |
Proprietary |
Antenna |
1 x Internal |
Power Requirements |
Battery or Bus Power (USB) |
Battery Type |
1 x Built-In Rechargeable (Included, Not Replaceable) |
Approx. Battery Life |
10 Hours |
USB/Lightning I/O |
1 x USB-C (Bus Power, Charging) |
Display & Indicators |
1 x OLED (Audio Level, Battery Status, Mute, Power, Signal Strength) |
Operating Temperature |
32 to 122°F / 0 to 50°C |
Storage Temperature |
14 to 122°F / -10 to 50°C |
Dimensions |
2.2 x 1.5 x 0.6" / 56 x 38 x 15 mm |
Weight |
1 oz / 29.5 g |
Microphone
Microphone Type |
Lavalier |
Color |
Black |
Sound Field |
Mono |
Operating Principle |
Pressure Operated |
Capsule |
Electret Condenser |
Polar Pattern |
Omnidirectional |
Maximum SPL |
120 dB SPL |
Sensitivity |
-39 dB |
Output Connector |
1 x 1/8" / 3.5 mm TRS Male Unbalanced |
Microphone 2
Microphone Type |
Integrated |
Color |
Black |
Sound Field |
Mono |
Capsule |
Electret Condenser |
Polar Pattern |
Omnidirectional |
Maximum SPL |
106 dB SPL |
Sensitivity |
-39 dB |
Outputs |
None |
Charging Case
Additional Runtime |
35 Hours |
