- Supports 51 to 80" Displays Up to 125 lb
- 100 x 25 to 750 x 400mm Mount Pattern
- Provides -10 to 0° of Tilt
- Leveling and Height Adjustments
Mount your 51 to 80" flat-panel display only 0.82" from the wall with the Sanus VLT16-B1 Slim Tilting Wall Mount . It supports displays weighing up to 125 lb with mount patterns ranging from 100 x 25 to 750 x 400mm and provides -10 to 0° of tilt adjustments as well as post-installation height and leveling adjustments. ClickStand technology provides access to the rear of the display for simplified input/output access.
- Designed for custom installers
- Installation hardware included
- Leveling adjustments allow the display to be positioned after hanging
- Position your TV as close as 0.82" from the wall
- Pull down on hidden straps to access cables behind your display

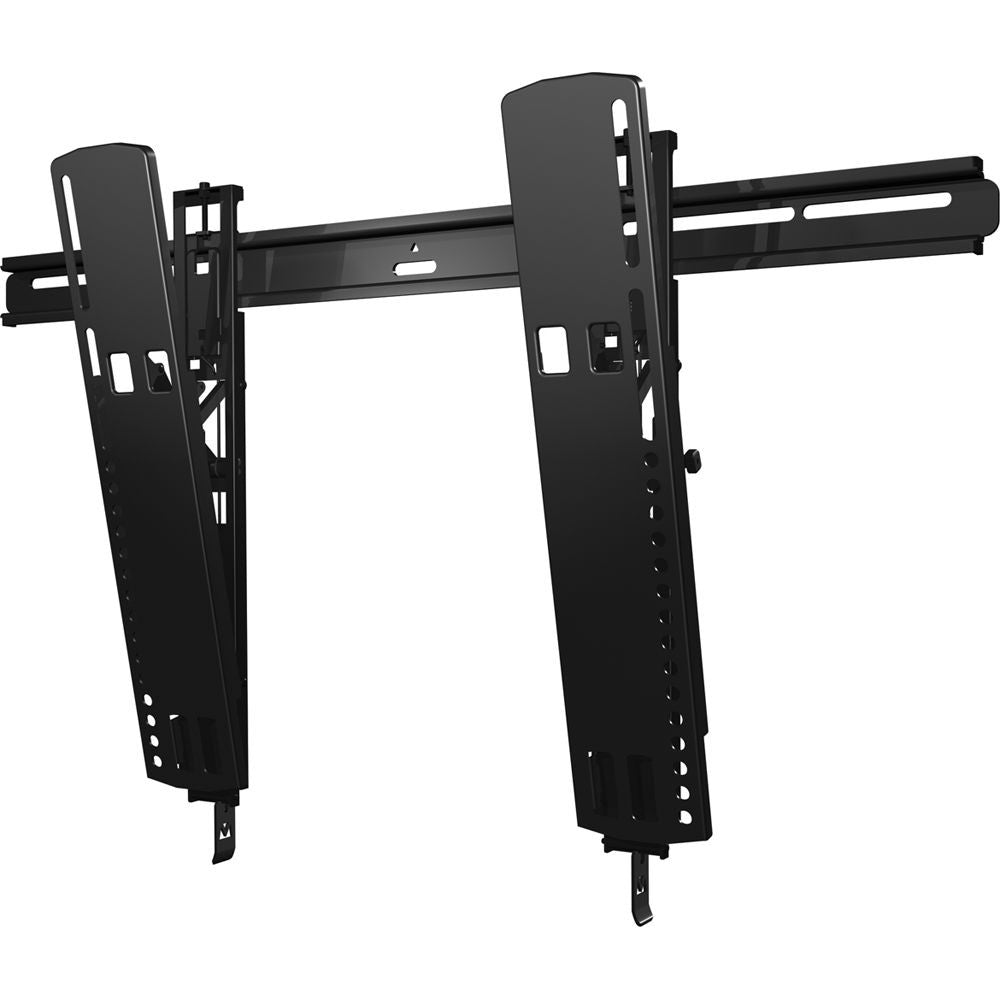

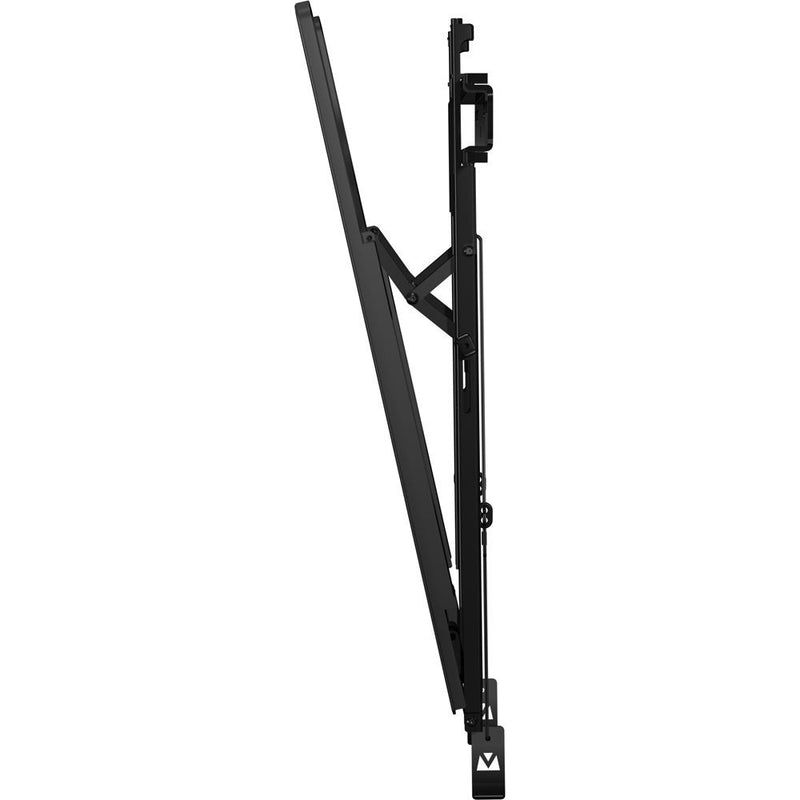

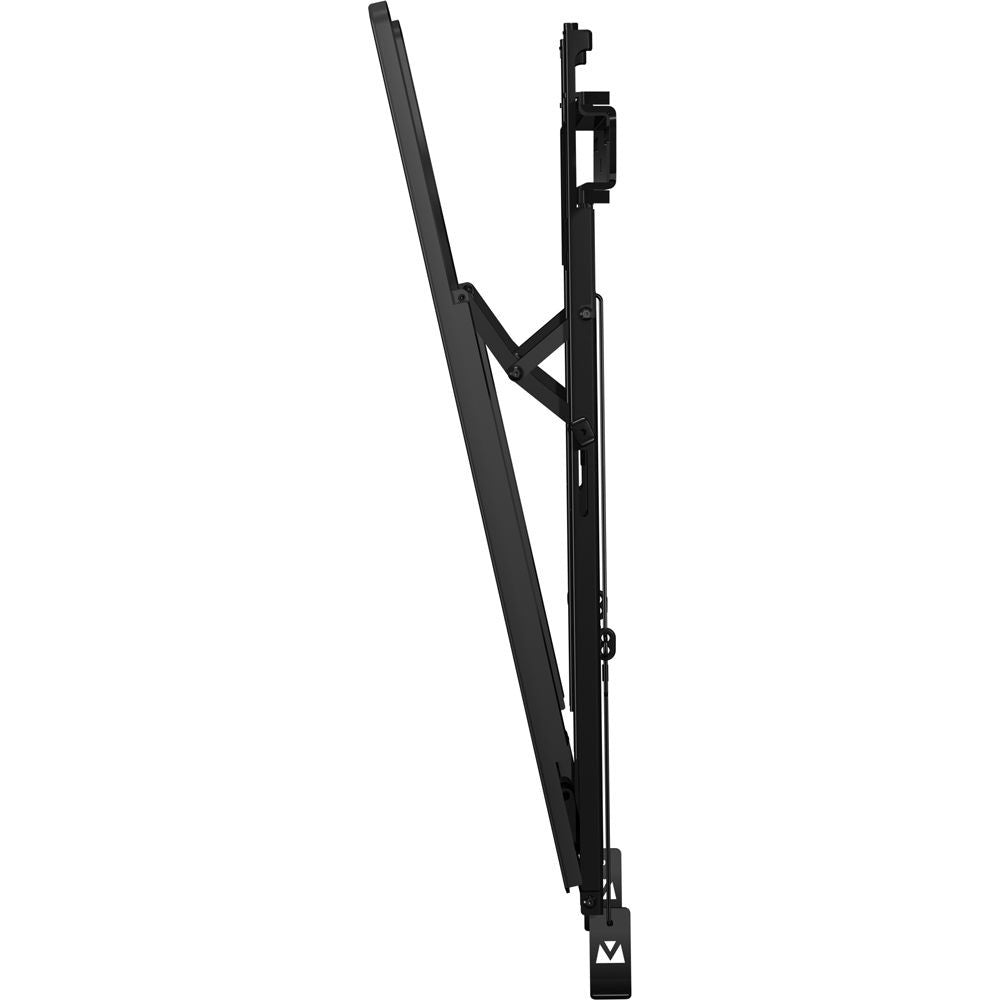

- Tilt your display for your preferred viewing angle
UPC: 793795527486
TV Size Range | 51 to 80" (129.54 to 203.2 cm) |
Maximum Weight | 125 lb (56.7 kg) |
Universal Mounting Pattern | 100 x 25 to 750 x 400 mm |
VESA Hole Pattern | 100 x 100 to 750 x 400 mm |
Tilt | -10 to 0° |
Wall Stud Compatibility | 16 or 24" (40.64 or 61 cm) on-center |
Dimensions (W x H x D) | 29.3 x 17.3 x 0.82" (74.42 x 43.94 x 2.08 cm) |
Weight | Not specified by manufacturer |
Packaging Info |
Package Weight | 9.0 lb |
Box Dimensions (LxWxH) | 30.0 x 9.2 x 2.0" |
In the Box
SANUS VLT16-B1 Slim Tilting Wall Mount for 51 to 80" Displays
- Assembly Hardware
- Mounting Hardware
- Limited 10-Year Warranty
