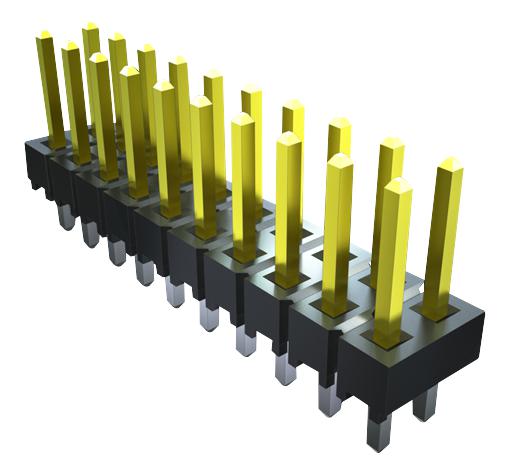

Samtec TSW-136-22-L-S TSW-136-22-L-S Pin Header Vertical Board-to-Board 2.54 mm 1 Rows 36 Contacts Through Hole TSW

The TSW series from Samtec are standard terminal strip headers. These are unshrouded through hole headers with 0.025" (0.635mm) square post and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD and SMSS series of connectors. TSW series connectors are available with industry's largest variety of standard pin counts, terminal lengths and are used where signal integrity and reliability is of major concern.

• Orderable with single/dual/triple rows (-S/-D/-T/-Q option)
• Pitch spacing is 2.54mm (1 to 50 contacts per row) with straight orientation
• High operating temperature range of -55?C to 125?C for 10?" gold plated contacts
• Terminal material is phosphor bronze
• Black glass filled polyester insulator material
• Complies with UL E111594 and CSA 090871
• 0
• 000 standards
• Locking lead and locking clip feature is optional

Applications

Industrial

Other details

Brand	SAMTEC
Part Number	TSW-136-22-L-S
Quantity	Each
Technical Data Sheet EN

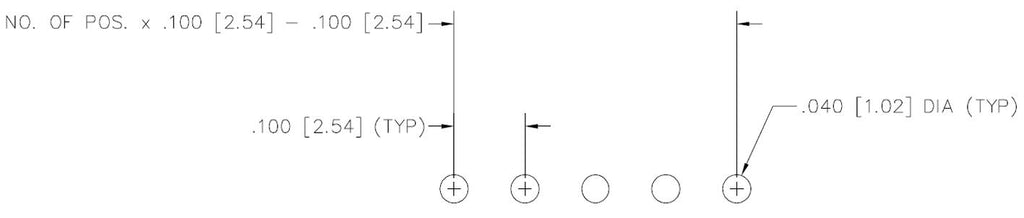

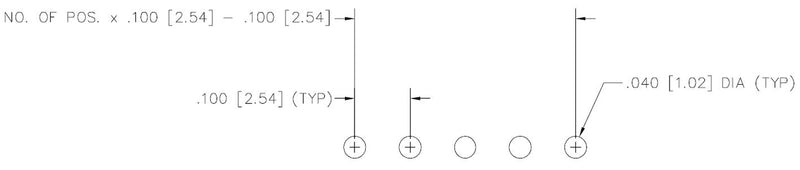

Packaging / Drawing / Footprint EN
