Description

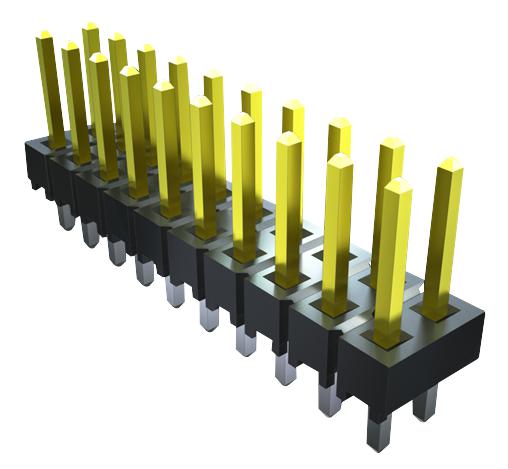

The TSW series from Samtec are standard terminal strip headers. These are unshrouded through hole headers with 0.025" (0.635mm) square post and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD and SMSS series of connectors. TSW series connectors are available with industry's largest variety of standard pin counts, terminal lengths and are used where signal integrity and reliability is of major concern.
- Orderable with single/dual/triple rows (-S/-D/-T/-Q option)
- Pitch spacing is 2.54mm (1 to 50 contacts per row) with straight orientation
- High operating temperature range of -55?C to 125?C for 10?" gold plated contacts
- Terminal material is phosphor bronze
- Black glass filled polyester insulator material
- Complies with UL E111594 and CSA 090871
- 0
- 000 standards
- Locking lead and locking clip feature is optional
Applications
Industrial
Product details
| Connector Systems: Board-to-Board |
| Pitch Spacing: 2.54mm |
| No. of Rows: 2Rows |
| No. of Contacts: 40Contacts |
| Contact Termination Type: Through Hole |
| Product Range: TSW |
| Connector Shroud: Unshrouded |
| Contact Material: Phosphor Bronze |
| Contact Plating: Gold Plated Contacts |
Other details
| Brand | SAMTEC |
| Part Number | TSW-120-15-G-D-LL |
| Quantity | Each |
| Technical Data Sheet EN |  |
