Samtec TSM-110-01-L-DV TSM-110-01-L-DV Pin Header Board-to-Board 2.54 mm 2 Rows 20 Contacts Surface Mount TSM Series

The TSM-110-01-L-DV is a 20-pole 2-row 2.54mm Surface Mount Terminal Strip with 10?inch (0.25?m) gold-plated phosphor bronze contacts, matte tin plated tail and LCP insulator. The TSM series vertical pin terminal strip is compatible with BCS, BSW, CES, ESQ, ESW, HCSD, HCSS, HLE, IDSD, IDSS, ISDM, ISSM, MNT, PHF, SLW, SMH, SMSD, SMSS, SNT, SSM, SSQ and SSW series connectors. Designed specifically for surface mount applications with many options to facilitate processing.

• Pitch spacing is 2.54mm (2 to 36 contacts per row) with double row vertical pin (-DV)
• High operating temperature range of -55?C to 125?C for 10?" gold plated contacts
• Contact material is phosphor bronze
• Black liquid crystal polymer insulator material
• Suitable for board stacking
• Complies with UL E111594 and CSA 090871
• 0
• 000 standards

Applications

Industrial

Other details

Brand	SAMTEC
Part Number	TSM-110-01-L-DV
Quantity	Each
Technical Data Sheet EN
Drawing EN

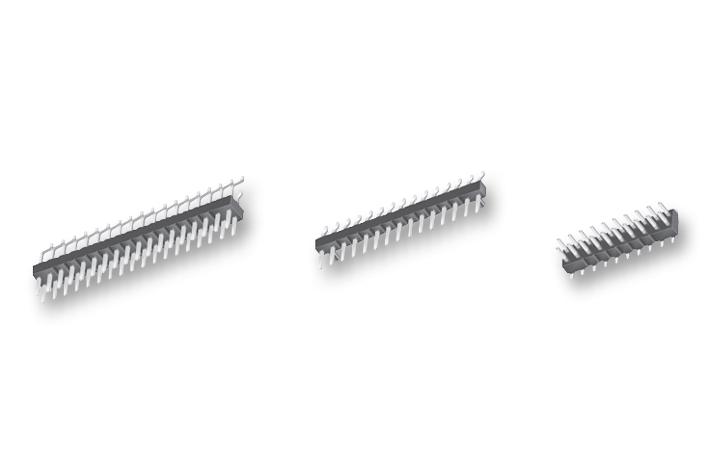

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
