Description

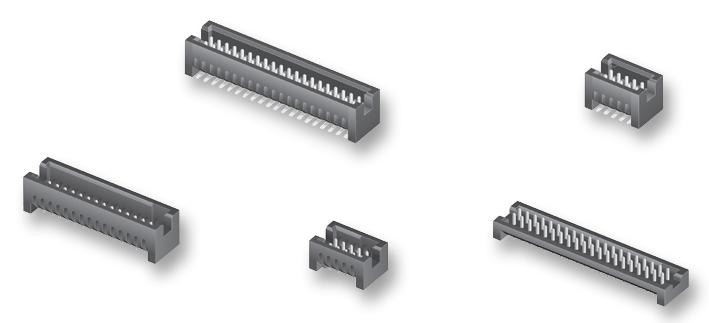

The TFM series rugged Tiger Eye� Terminal Strip features a multi-finger, BeCu contact system designed for high reliability and high cycle applications with surface mount or through-hole tails. Vertical or right-angle orientations for parallel, perpendicular and coplanar mating increase design flexibility, along with optional alignment pin, locking clip, dual screw down or weld tab for more rugged applications.
- Shrouded body for blind mating
- Orientation - Vertical, right-angle and horizontal
- Termination - Through-hole and surface mount
- Mating with high-reliability Tiger Eye� contact sockets and cable assemblies
- Multiple stack heights
- Screw down, weld tab and solder nail options available for most rugged requirements
- Extended Life Product� (ELP�)
Applications
Industrial
Product details
| Connector Systems: Board-to-Board, Wire-to-Board |
| Pitch Spacing: 1.27mm |
| No. of Rows: 2Rows |
| No. of Contacts: 40Contacts |
| Contact Termination Type: Surface Mount |
| Product Range: Tiger Eye TFM |
| Connector Shroud: Shrouded |
| Contact Material: Phosphor Bronze |
| Contact Plating: Gold Plated Contacts |
Other details
| Brand | SAMTEC |
| Part Number | TFM-120-12-S-D-LC |
| Quantity | Each |
| Technical Data Sheet EN |  |
