Description

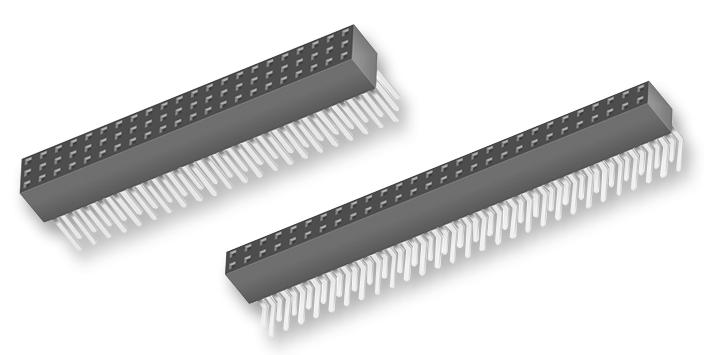

The SSW series from Samtec are Tiger Buy socket strips. These are through hole socket strips with 0.025" (0.635mm) square post sockets and mates with Samtec TSW, MTSW, MTLW, EW, ZW, TSS, ZSS, TSM, TSSH and HTSS series of connectors. SSW series connectors have standard and low insertion force Tiger Buy contacts with standard solder tails.
- Orderable with single/dual/triple rows (-S/-D/-T/ -P/-Q options)
- Pitch spacing is 2.54mm (1 to 50 contacts per row) with straight orientation
- High operating temperature range of -55?C to 105?C for matte tin plated contacts
- Black liquid crystal polymer (-S, -D) / black high temperature thermoplastic (-T) insulator material
- Complies with UL E111594 and CSA 090871
- 0
- 000 standards
- Contact material is phosphor bronze
Applications
Industrial
Product details
| Connector Systems: Board-to-Board |
| Pitch Spacing: 2.54mm |
| No. of Rows: 3Rows |
| No. of Contacts: 42Contacts |
| Connector Mounting: Through Hole Mount |
| Product Range: SSW |
| Contact Material: Phosphor Bronze |
| Contact Plating: Tin Plated Contacts |
Other details
| Brand | SAMTEC |
| Part Number | SSW-114-01-T-T |
| Quantity | Each |
| Technical Data Sheet EN |  |
